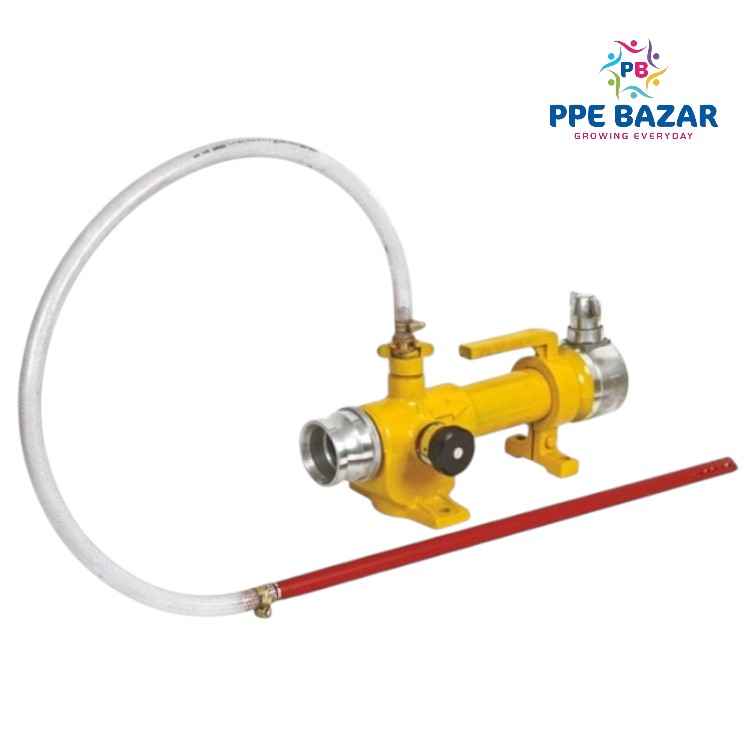

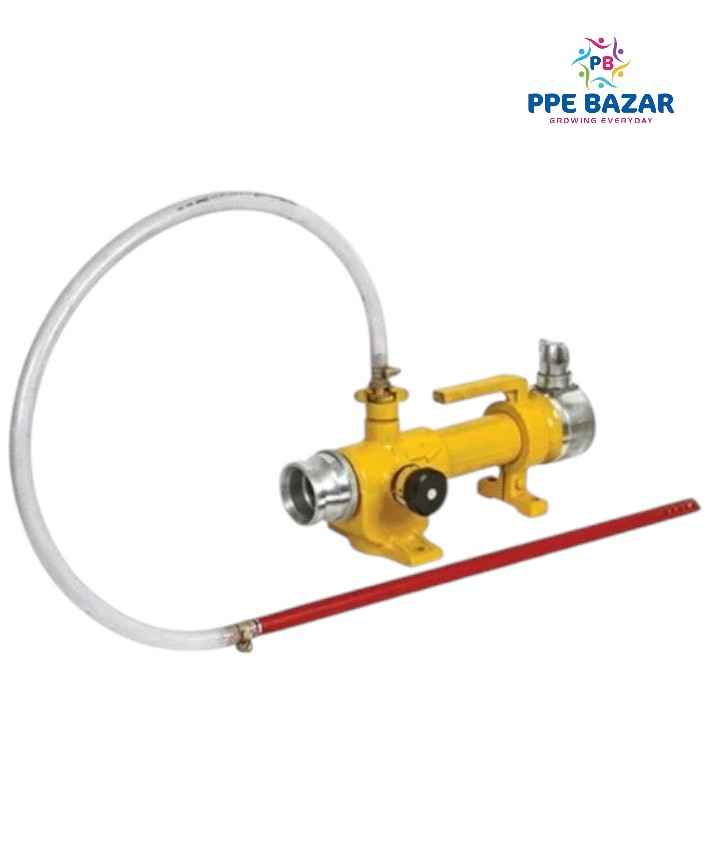

The Portable Inline Inductor is a compact, high-performance foam proportioning device used in firefighting systems to accurately induct foam concentrate into the water stream. Designed for portable or mobile firefighting setups, it is suitable for use with AFFF and other foam concentrates.
This model is UL Listed and constructed entirely from corrosion-resistant Stainless Steel SS304, ensuring long-term reliability even in harsh environments. With a nominal foam solution capacity of 450 LPM at 100 psi (7 kg/cm²) inlet pressure, it offers consistent foam induction performance at a preset induction rate of 3%.
Equipped with a 63 mm Male Instantaneous Inlet and Female Instantaneous Outlet, it can be quickly connected to hoses and branch pipes. It comes complete with a PVC pick-up tube and an internal SS304 dip tube for drawing foam concentrate from containers.
📐 Specifications:
| Parameter |
Details |
| Product |
Portable Inline Foam Inductor |
| Certifications |
UL Listed |
| Material of Construction |
Stainless Steel SS304 |
| Nominal Flow Capacity |
450 Litres per Minute (LPM) |
| Operating Pressure |
100 psi (7 kgf/cm²) |
| Induction Rate |
3% (factory preset, consistent delivery) |
| Inlet Connection |
63 mm Male Instantaneous |
| Outlet Connection |
63 mm Female Instantaneous |
| Pick-Up Tube |
PVC Flexible Hose |
| Dip Tube Material |
Stainless Steel SS304 |
| Outlet Pressure Retention |
At least 65% of inlet pressure |
| Application |
Suitable for use with AFFF / AR-AFFF / FP foam concentrates |
| Usage Areas |
Oil depots, chemical plants, marine, aviation fuel zones |
| Finish |
Natural SS finish (polished/satin) |
| Portability |
Compact, lightweight, manually operable |
