1. General Description:

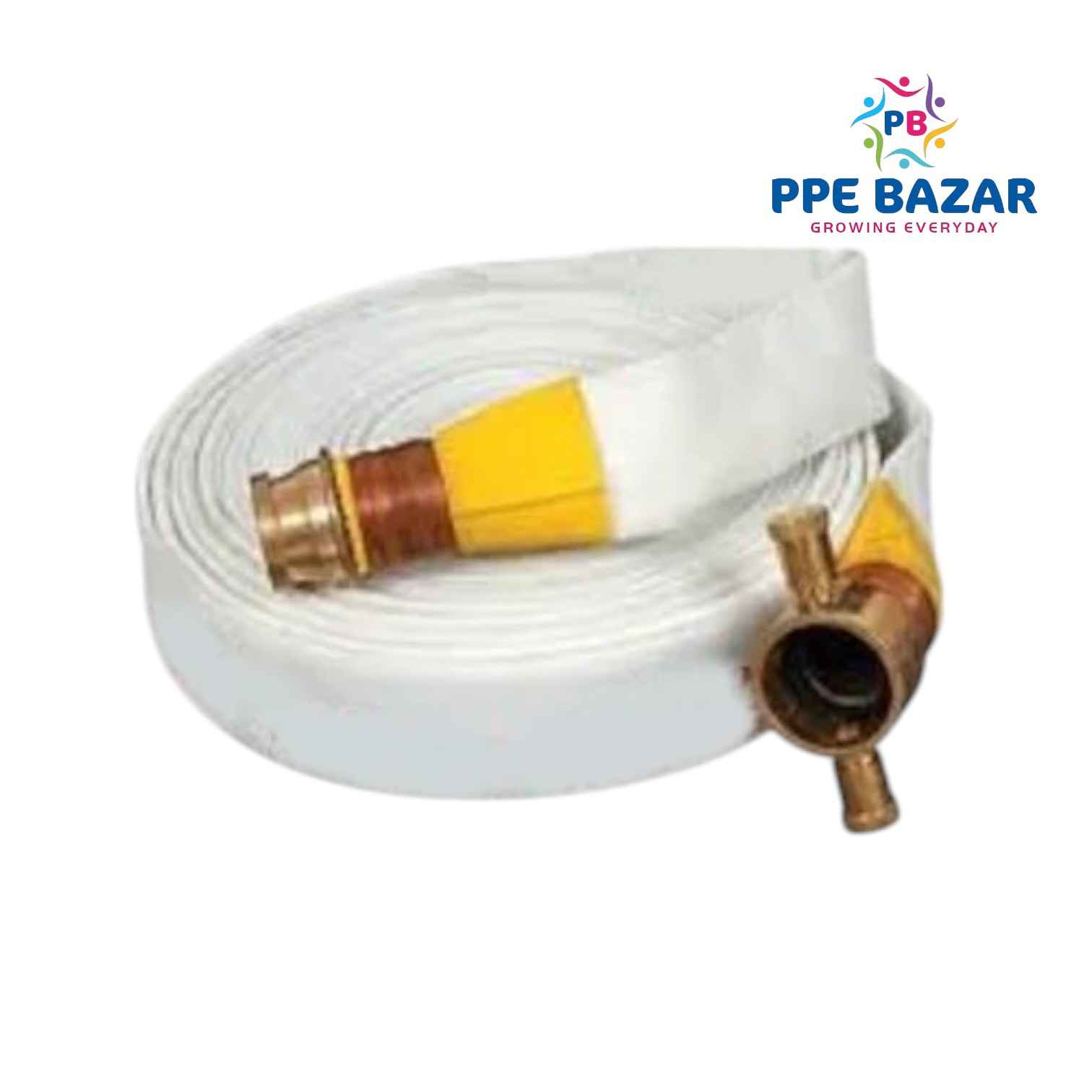

The Reinforced Rubber Lined (RRL) Fire Hose is a durable, high-performance firefighting hose designed for extreme conditions. It features an all-synthetic fiber circular woven jacket with an EPDM (Ethylene Propylene Diene Monomer) rubber lining, providing excellent resistance to heat, weather, and abrasion. The hose complies with IS: 636-88, Type-A and is ISI-marked, ensuring high-quality standards. It is dully fitted with stainless steel (SS-304) couplings as per IS: 903, securely bound using GI wire binding.
2. Technical Specifications:
A. Fire Hose:
- Type: Reinforced Rubber Lined (RRL) Fire Hose
- Standard Compliance: IS: 636-88, Type-A
- Certification: ISI Marked
- Jacket Material: All-Synthetic Fiber, Circular Woven
- Lining Material: EPDM Synthetic Rubber
- Hose Diameter: 63mm (2.5 inches)
- Hose Length: 15 meters
- Color: Typically white or red
- Working Pressure: 14 kg/cm²
- Proof Pressure: 22 kg/cm²
- Burst Pressure: 38 kg/cm²
- Weather & Heat Resistance: Excellent
B. Couplings (Male & Female – Instantaneous Pattern):
- Material: Stainless Steel (SS-304)
- Size: 63mm X 63mm
- Standard Compliance: IS: 903
- Certification: ISI Marked
- Coupling Type: Instantaneous pattern for quick connection and disconnection
- Binding Method: Galvanized Iron (GI) Wire Binding for secure attachment
3. Key Features & Benefits:
✅ ISI Certified: Complies with IS: 636-88 (Type-A) and IS: 903 for fire safety assurance
✅ Reinforced Durability: Synthetic fiber woven jacket with EPDM lining for enhanced longevity
✅ High-Pressure Resistant: Withstands up to 14 kg/cm² working pressure
✅ Abrasion & Weather Resistant: Designed for rough firefighting conditions
✅ SS-304 Couplings: Corrosion-resistant and long-lasting
✅ Quick & Secure Connection: Instantaneous pattern couplings allow for fast deployment
4. Applications:
- Fire Hydrant Systems in industrial, commercial, and residential buildings
- Municipal Fire Brigades for firefighting applications
- Oil Refineries & Chemical Plants for fire safety
- Airports & Defense Installations
- Warehouses & Large Storage Facilities
