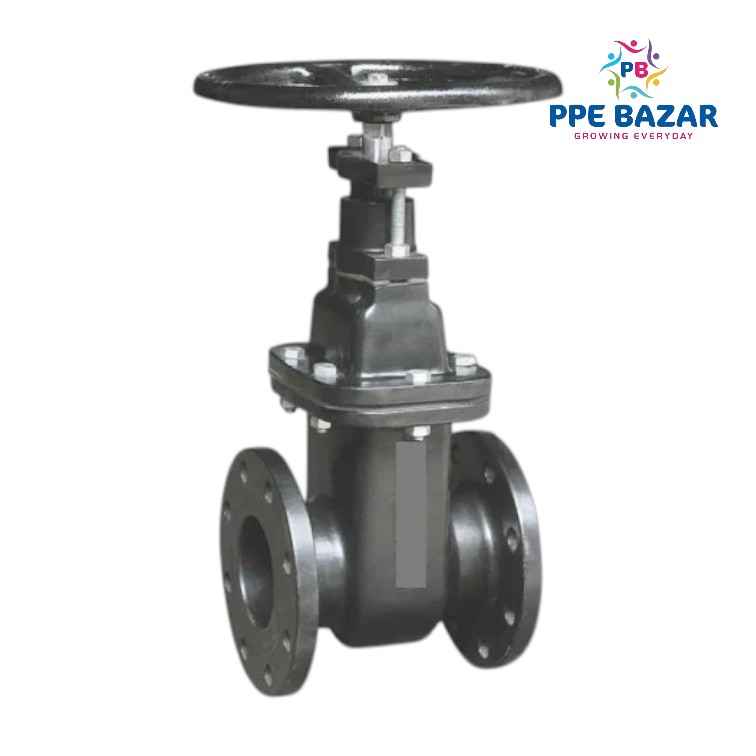

Sluice Valve CI Body GM Parts Flange Ends 8"

0 Reviews 0 Orders 0 Wish listed

₹18,354.00 + GST

MRP ₹19,950.00 8 % Off

The 8" Sluice Valve with a Cast Iron (CI) body and Gunmetal (GM) working parts is a robust gate valve used for on/off regulation in water and fluid systems. It is designed for underground and above-ground installations, especially in water supply networks, fire fighting lines, and industrial pipelines.

This valve features flanged ends for secure bolted connections to the pipeline, and the internal non-rising spindle, wedge gate, and seating rings are made from Gunmetal, ensuring corrosion resistance, durability, and smooth operation under varying pressure conditions.

📐 Specifications:

Parameter	Details
Product	Sluice Valve / Gate Valve
Size	8" (200 mm)
Body Material	Cast Iron (CI)
Internal Parts	Gunmetal (GM) – Wedge/Gate, Stem, Seat Rings
End Connections	Flanged Ends (Drilled to IS:1538 / ANSI / DIN standards as specified)
Valve Type	Non-Rising Spindle (NRS)
Operation	Handwheel Operated (manual)
Working Pressure	PN 1.6 (16 bar) or as specified
Test Pressure	Body – 24 bar, Seat – 17.6 bar (typical values, confirm with MTC)
Coating	Fusion-bonded epoxy or red oxide primer (external)
Standard Compliance	IS:14846 / BS 5163 or equivalent
Application	Water distribution, fire mains, irrigation, and general industrial use
Features	Leak-proof sealing, durable GM internals, long service life
