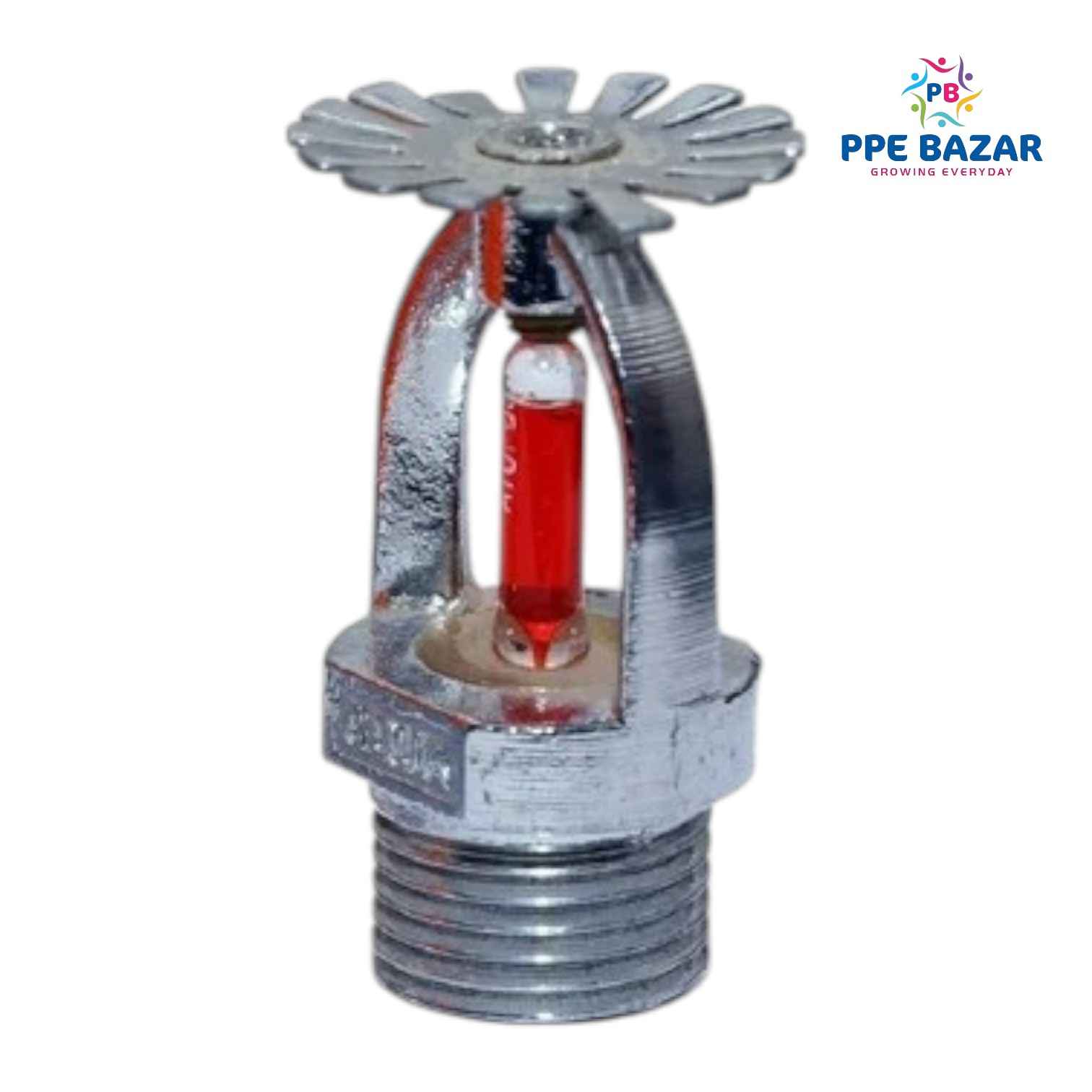

This Pendent Sprinkler is designed for standard fire protection in wet pipe systems, providing reliable heat-activated water distribution in commercial and residential applications. It features a standard response (68°C / 155°F) glass bulb for thermal activation and delivers standard coverage as per industry practices.
The sprinkler has a chrome-plated finish, offering corrosion resistance and a clean aesthetic for visible installations. It is not UL-listed but complies with general industry standards for performance.
Specifications:
General Details:
- Type: Pendent (Vertical Downward Discharge)
- Thermal Rating: 68°C (155°F) – Standard Response
- Activation Mechanism: Glass Bulb (Standard Response Time)
- Thread Size: ½” BSPT (British Standard Pipe Tapered)
- K-Factor: K-5.6 (80)
- Flow Rate: 80.3 L/min @ 2.07 bar (5.6 GPM @ 30 psi)
- Pressure Rating: Standard: 12 bar (175 psi) max (verify manufacturer specs)
- Finish: Chrome Plated (corrosion-resistant, decorative)
- Orientation: Pendent (Ceiling-Mounted, Downward Spray)
- Coverage: Standard (as per industry norms, typically 10-16 ft spacing)
Performance & Design:
- Response Type: Standard Response (for general fire hazards)
- Spray Pattern: Standard Coverage (uniform water distribution)
- Body Material: Brass (Chrome Plated)
- Seal Type: Integral O-ring/Seat (Leak-resistant)
Compliance & Approvals:
- Non-UL Listed (Manufactured to general industry standards)
- Compatible with NFPA 13 (Wet Pipe Systems) (Install per local fire codes)
Applications:
- Commercial Buildings (Offices, Retail)
- Residential Spaces (Apartments, Hotels)
- Light Hazard Occupancies (Where standard coverage is sufficient)
Installation Notes:
- Suitable for wet pipe sprinkler systems
- Must be installed per NFPA 13 guidelines (spacing, hazard classification)
- Not for use in UL-required systems (check local regulations)
