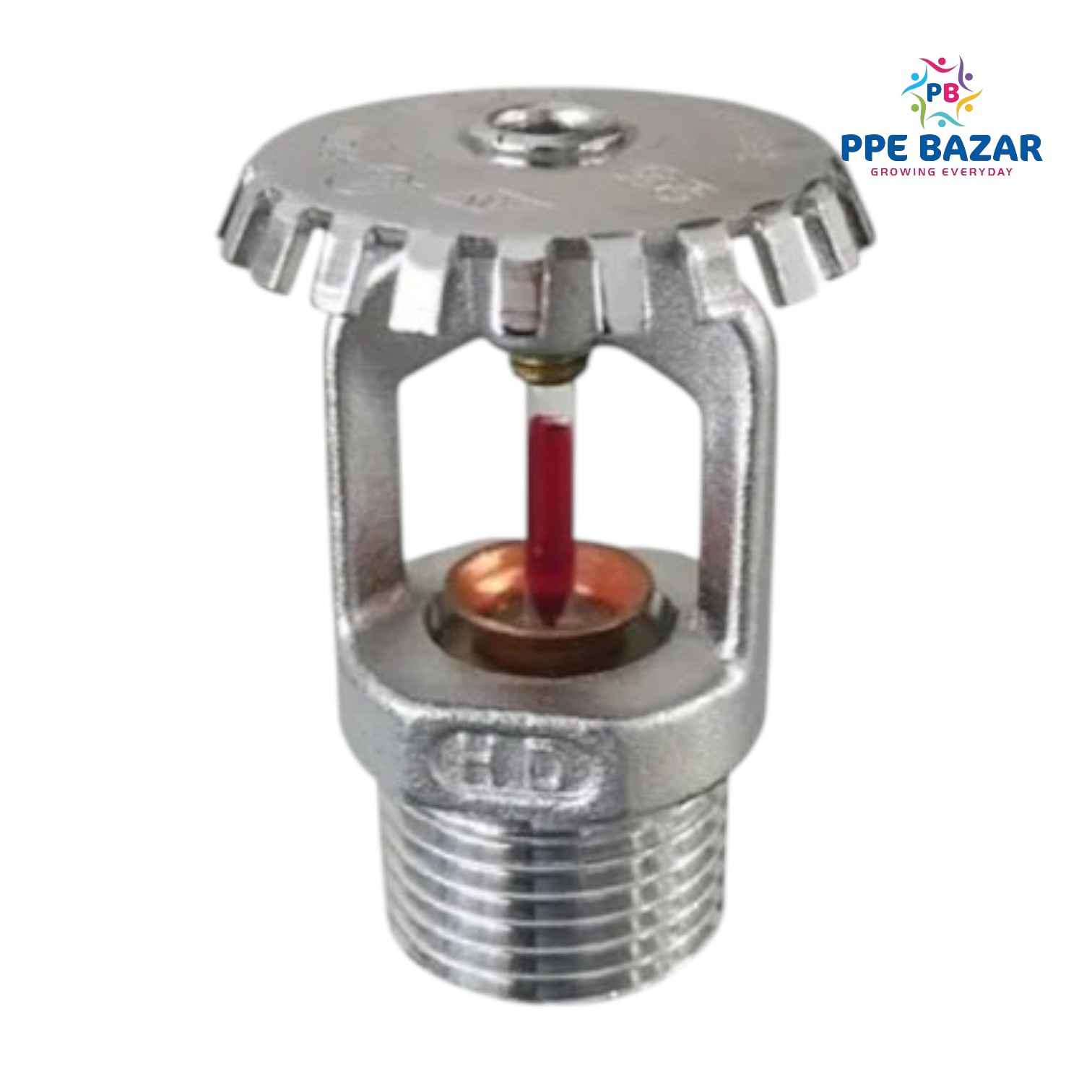

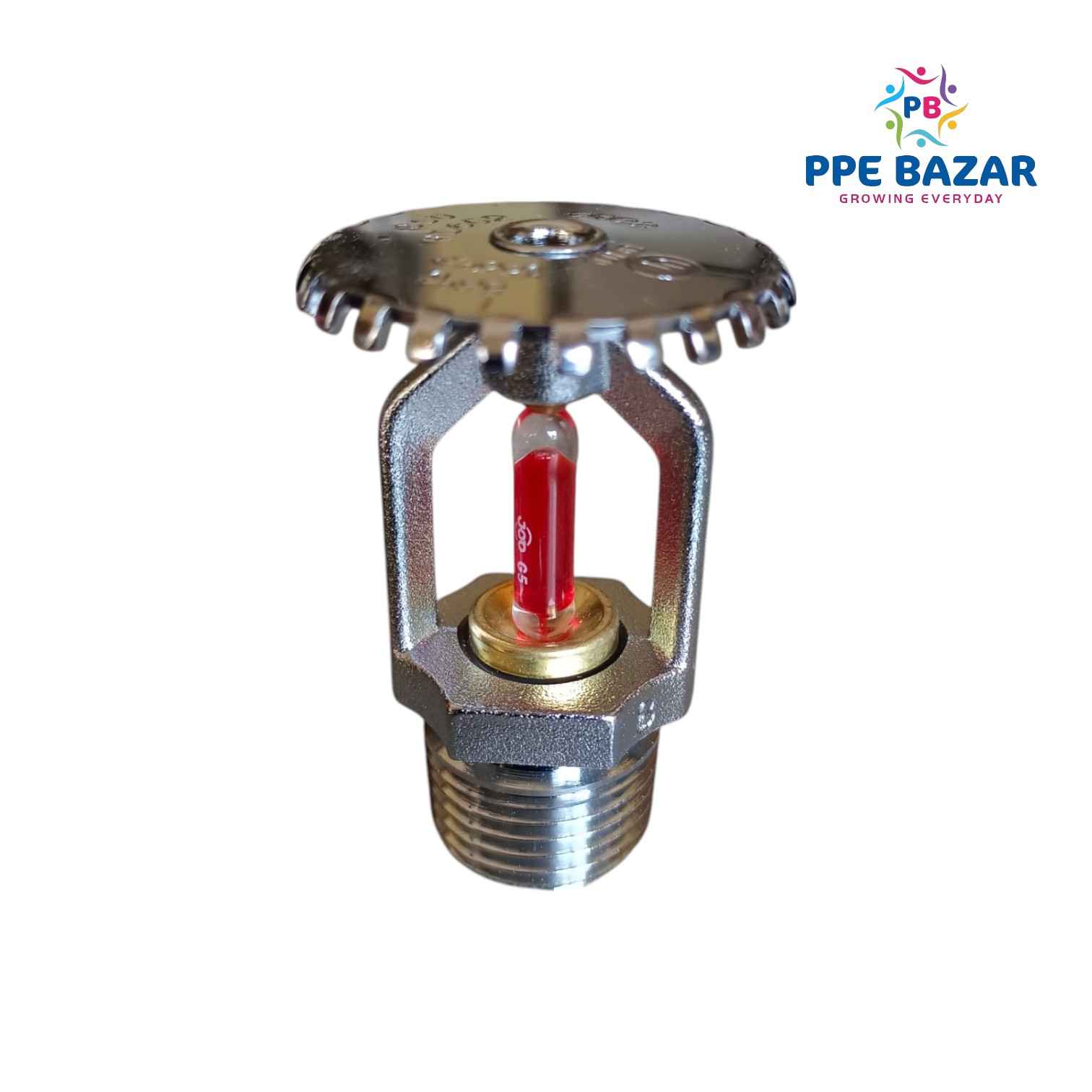

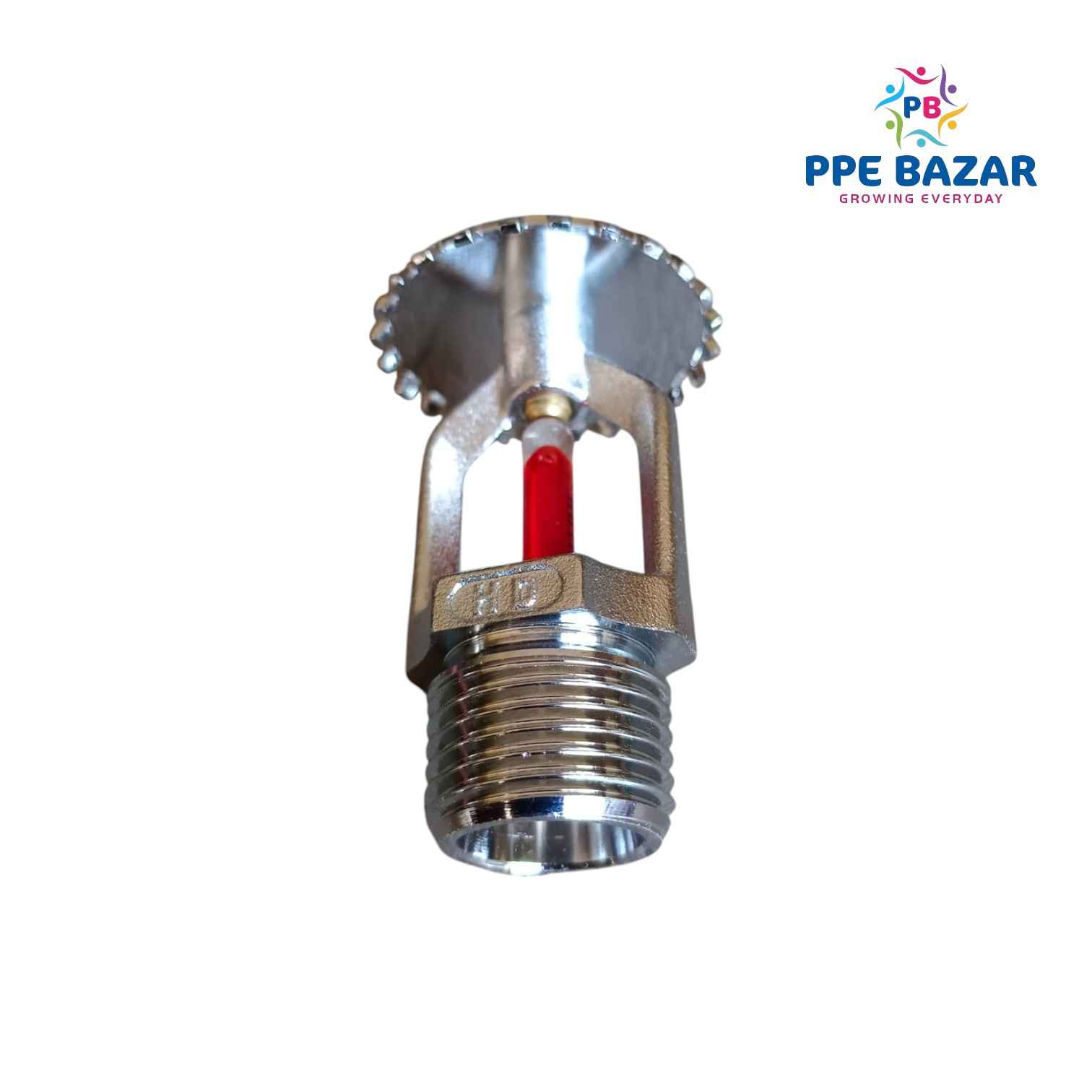

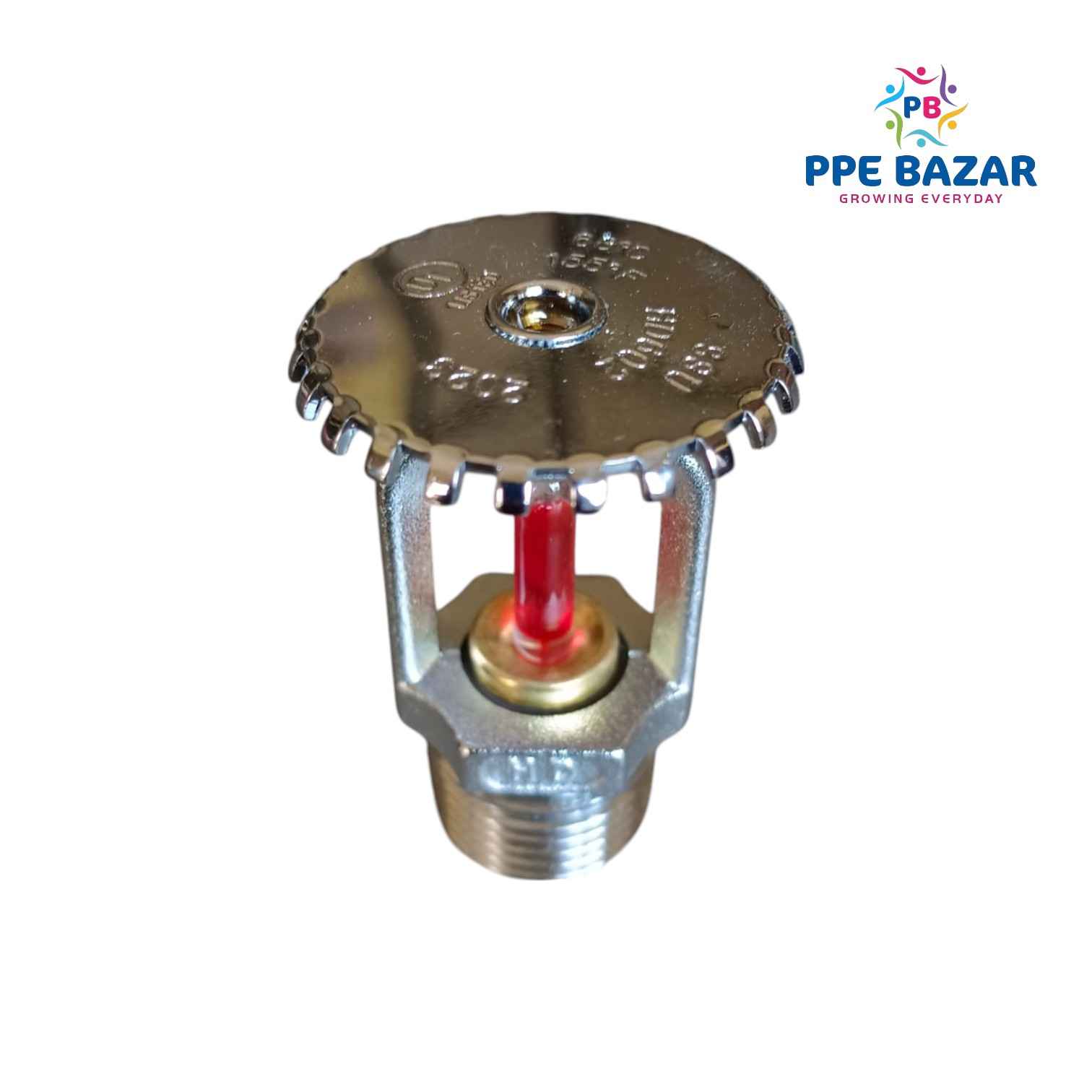

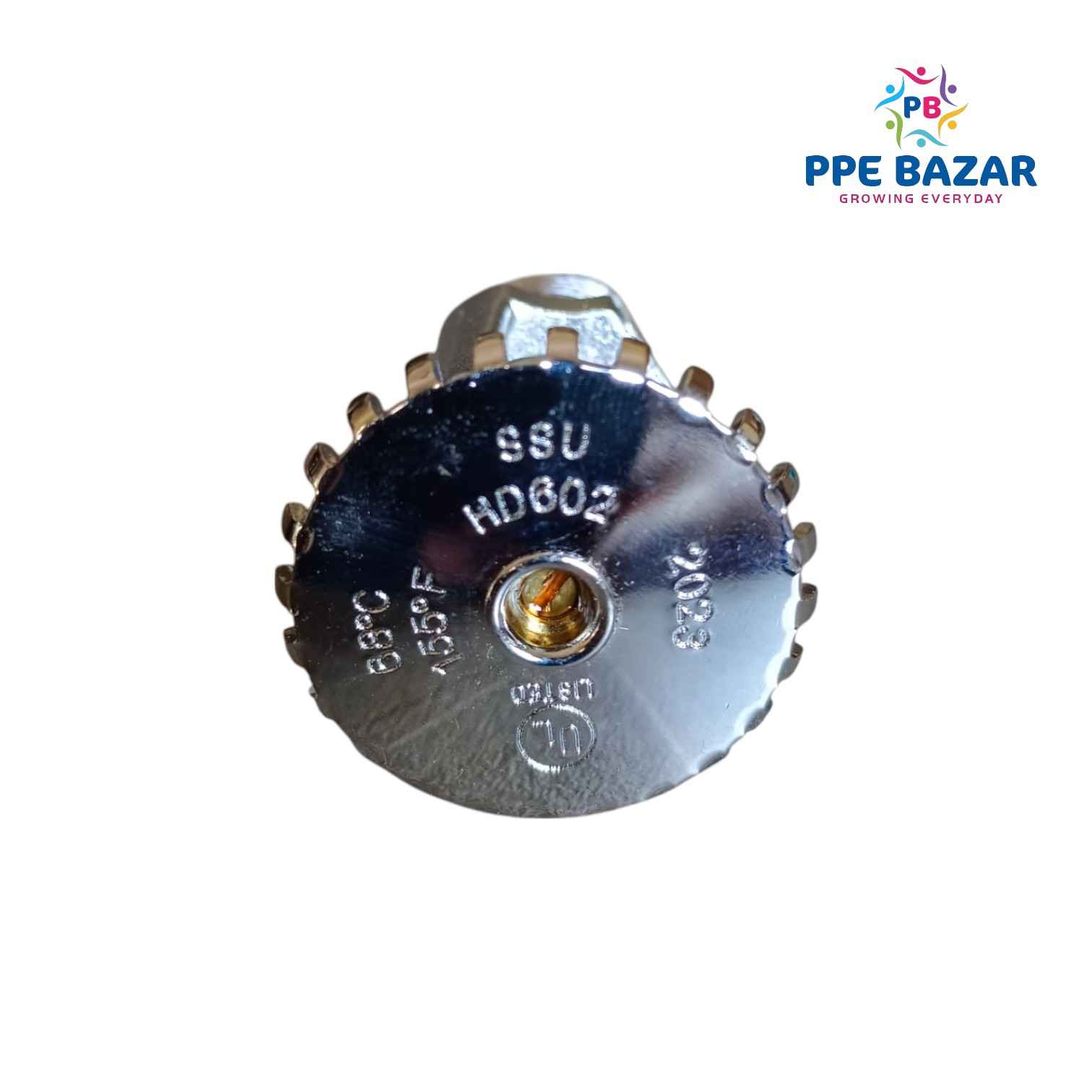

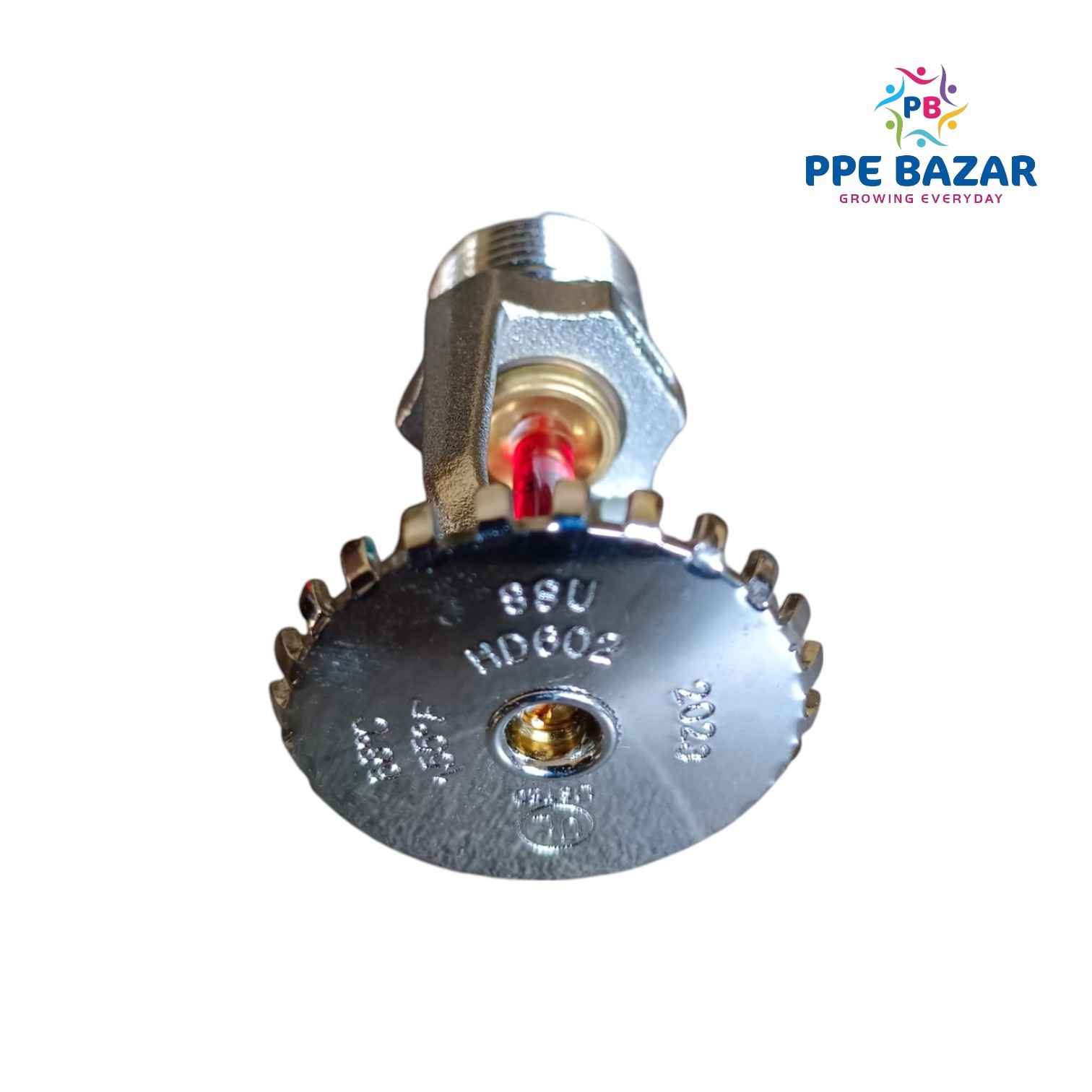

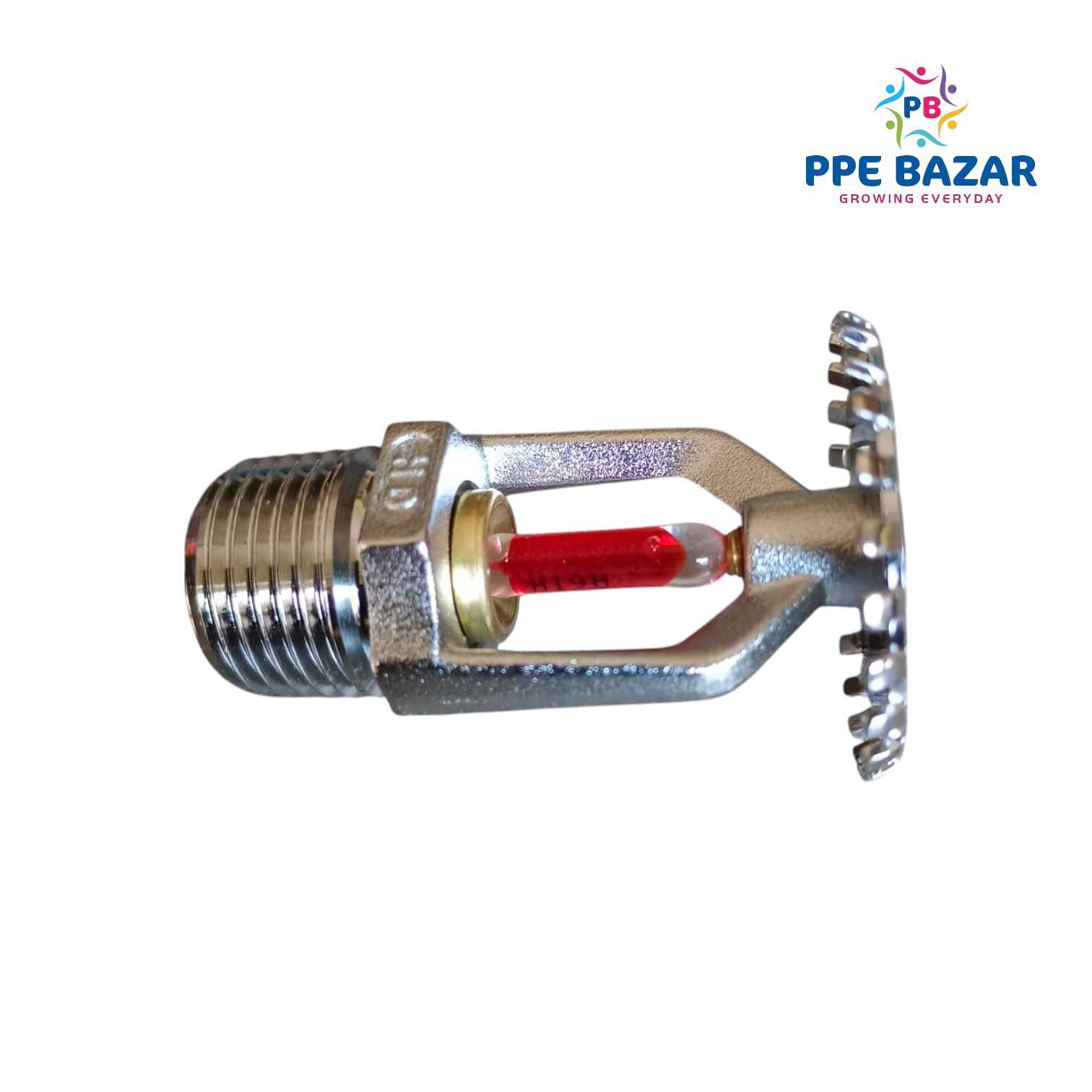

This Upright Sprinkler is designed for fire protection in wet pipe systems where sprinklers must be installed in an upward-facing orientation, typically in areas with exposed piping or obstructions. It features a standard response (68°C / 155°F) glass bulb for thermal activation and provides standard coverage for effective fire suppression.
The sprinkler has a chrome-plated finish, offering corrosion resistance and a polished appearance for visible installations. It is not UL-listed but manufactured to general industry standards for reliable performance.
Specifications:
General Details:
- Type: Upright (Upward Spray Discharge)
- Thermal Rating: 68°C (155°F) – Standard Response
- Activation Mechanism: Glass Bulb (Standard Response Time)
- Thread Size: ½” BSPT (British Standard Pipe Tapered)
- K-Factor: K-5.6 (80)
- Flow Rate: 80.3 L/min @ 2.07 bar (5.6 GPM @ 30 psi)
- Pressure Rating: Standard: 12 bar (175 psi) max (verify manufacturer specs)
- Finish: Chrome Plated (corrosion-resistant, decorative)
- Orientation: Upright (Base-Up Installation, Upward Spray Pattern)
- Coverage: Standard (as per industry norms, typically 10-16 ft spacing)
Performance & Design:
- Response Type: Standard Response (for general fire hazards)
- Spray Pattern: Standard Coverage (uniform water distribution)
- Body Material: Brass (Chrome Plated)
- Seal Type: Integral O-ring/Seat (Leak-resistant)
Compliance & Approvals:
- Non-UL Listed (Manufactured to general industry standards)
- Compatible with NFPA 13 (Wet Pipe Systems) (Install per local fire codes)
Applications:
✔ Exposed Piping Systems (Where pendent sprinklers are impractical)
✔ Commercial & Industrial Buildings (Warehouses, mechanical rooms)
✔ Areas with Overhead Obstructions (Ducts, beams, or high ceilings)
Installation Notes:
- Designed for wet pipe sprinkler systems
- Must be installed per NFPA 13 guidelines (spacing based on hazard classification)
- Not for use in UL-required systems (check local regulations)
- Ensure proper deflector alignment for optimal water distribution
