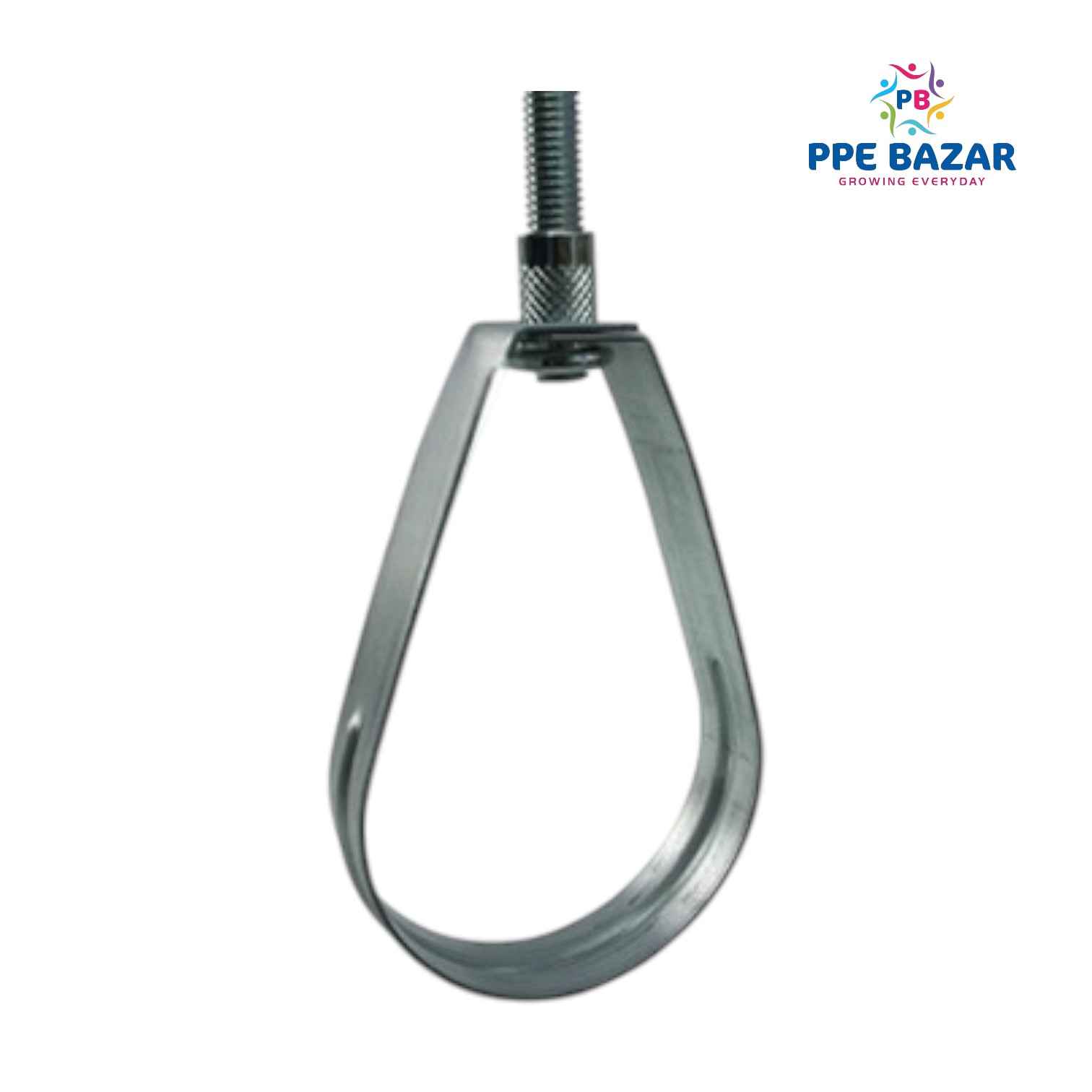

Sprinkler Pipe Support With Thread Rod 1.5 Food Size -1½" (Pack of 12 Nos)
0
0 Reviews
0 Orders
0 Wish listed
₹1,125.00 + GST
MRP ₹1,250.00
10 % Off
Sprinkler Pipe Support With Thread Rod 1.5 Food Size -1½" (Pack of 12 Nos)
A heavy-duty adjustable pipe hanger designed for suspending 1½" fire sprinkler piping in compliance with NFPA 13 standards. Features a 1.5-foot (18") threaded rod for precise height adjustment and a rugged steel construction for reliable performance in fire protection systems.
2. Technical Specifications
A. General Specifications
| Parameter | Specification |
|---|---|
| Pipe Size | 1½" (DN40) Schedule 5/10/40 |
| Rod Length | 1.5 feet (18"/457mm) |
| Rod Diameter | 3/8" (M10) |
| Material | Galvanized Steel |
| Finish | Zinc-plated (corrosion resistant) |
| Load Capacity | 150 lbs (68 kg) vertical load |
| Temperature Range | -20°C to 120°C (-4°F to 248°F) |
B. Components Included
- 1½" pipe clamp (rubber-lined)
- 18" threaded rod (3/8" diameter)
- Steel ceiling plate (2"×2")
- Hex nuts and washers (3/8")
- U-bracket assembly
C. Installation Data
| Parameter | Specification |
|---|---|
| Maximum Spacing | 10-12 feet (per NFPA 13) |
| Mounting Types | Concrete, steel deck, wood joist |
| Required Tools | Wrench, level, drill |
| Torque Spec | 15-20 ft-lbs for nuts |
3. Construction Details
- Threaded Rod: Continuous-thread zinc-plated steel
- Pipe Clamp: Cushioned rubber lining prevents pipe damage
- Bracket: Reinforced 12-gauge steel construction
- Fasteners: Grade 5 hardware included
4. Performance Characteristics
- Vibration resistance: ±2mm movement allowance
- Seismic rating: Standard (optional seismic kits available)
- Fire rating: Non-combustible assembly
5. Compliance & Certifications
- NFPA 13 compliant
- IBC compliant
- FM Global approved (when specified)
- UL listed options available
6. Applications
- Commercial fire sprinkler systems
- Industrial piping support
- Hospital and school fire protection
- Retrofit and renovation projects
