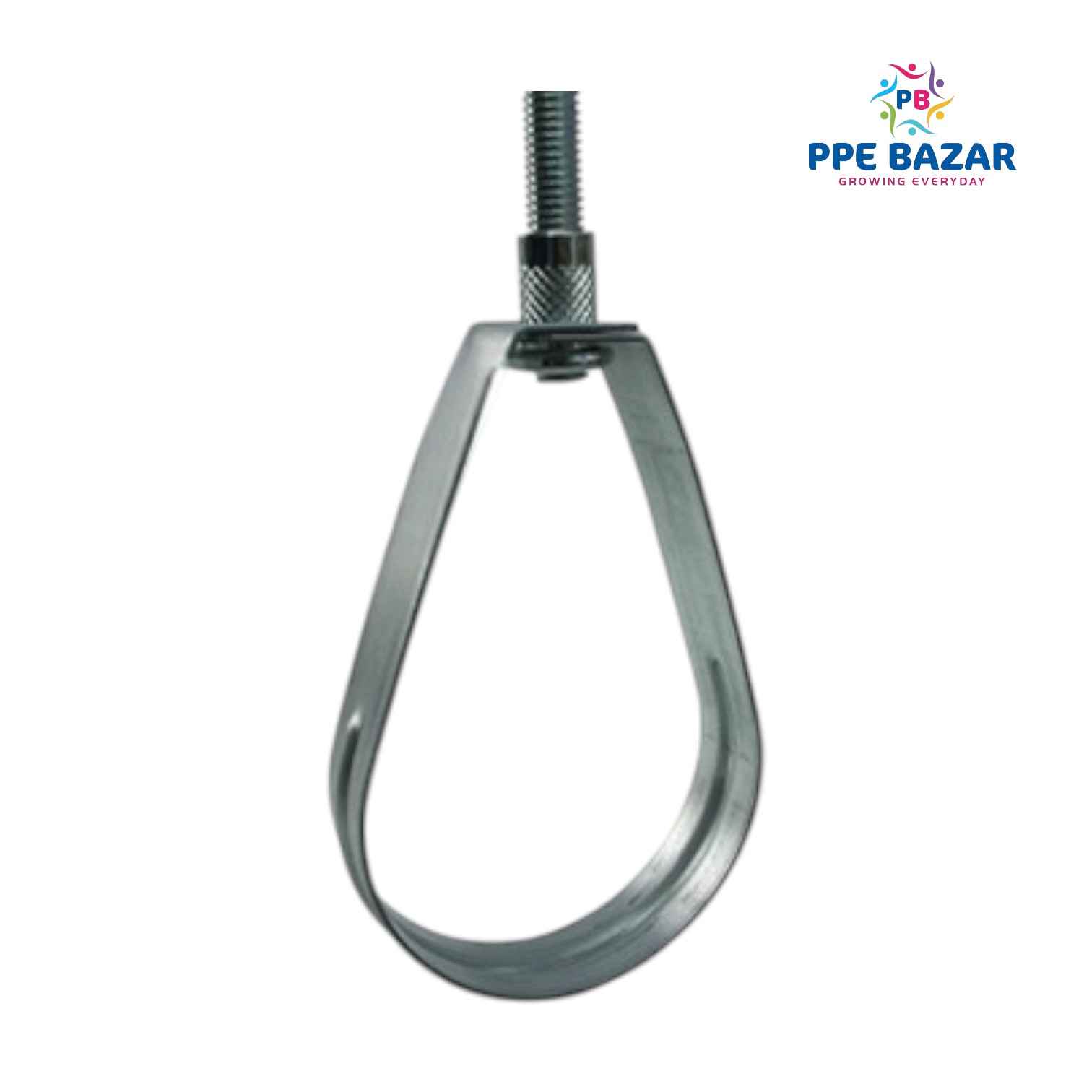

This Sprinkler Pipe Support is designed for 1-inch fire sprinkler piping and includes a 1.5-foot (18-inch) threaded rod for adjustable height installation. The pack of 12 supports ensures easy installation across multiple pipe runs, making it ideal for commercial, residential, and industrial fire protection systems.

Constructed from galvanized steel, these supports provide corrosion resistance and long-term durability. The rubber-lined pipe clamp prevents damage to the pipe while ensuring a secure grip.

Technical Specifications:

1. General Details:

• Type: Adjustable pipe hanger/support
• Material:
  • Bracket & Clamp: Galvanized steel
  • Threaded Rod: Zinc-plated steel (3/8" or M10 diameter)
  • Cushioning: Rubber-lined clamp (prevents pipe damage)
• Compatible Pipe Size: 1" (DN25) Schedule 5/10/40 (Steel or CPVC)
• Threaded Rod Length: 1.5 feet (18 inches / 457 mm)
• Load Capacity: Up to 100 lbs (45 kg) vertical load per support
• Pack Quantity: 12 Nos

2. Components Included (Per Support):

• Steel Bracket (U-shaped or C-shaped)
• Threaded Rod (1.5 ft length, 3/8" or M10 diameter)
• Pipe Clamp (Rubber-lined for vibration dampening)
• Hex Nuts & Washers (For secure fastening)

3. Installation & Compliance:

• Mounting: Ceiling, beam, or deck attachment
• Spacing: Per NFPA 13 (typically 8–10 ft for 1" pipe)
• Standards Met: NFPA 13, IBC, FM Global (if specified)
• Corrosion Resistance: Suitable for wet/dry environments

4. Applications:

✔ Commercial buildings (offices, retail spaces)
✔ Residential fire sprinkler systems
✔ Light industrial facilities
✔ Retrofit & renovation projects
