PPEBAZAR

Supply of “AAAG” make Stand Post type WATER MONITOR made of Carbon Steel pipes and elbows as per IS: 11428, Part 1-3, duly hot dip galvanized having 100mm Barrel Size & 100mm flanged inlet, with a flow capacity of 3500lpm@7kg/cm2 as per IS:- 8442 type “I”

0 Reviews 0 Orders 0 Wish listed

₹52,033.50 + GST

MRP ₹57,815.00 10 % Off

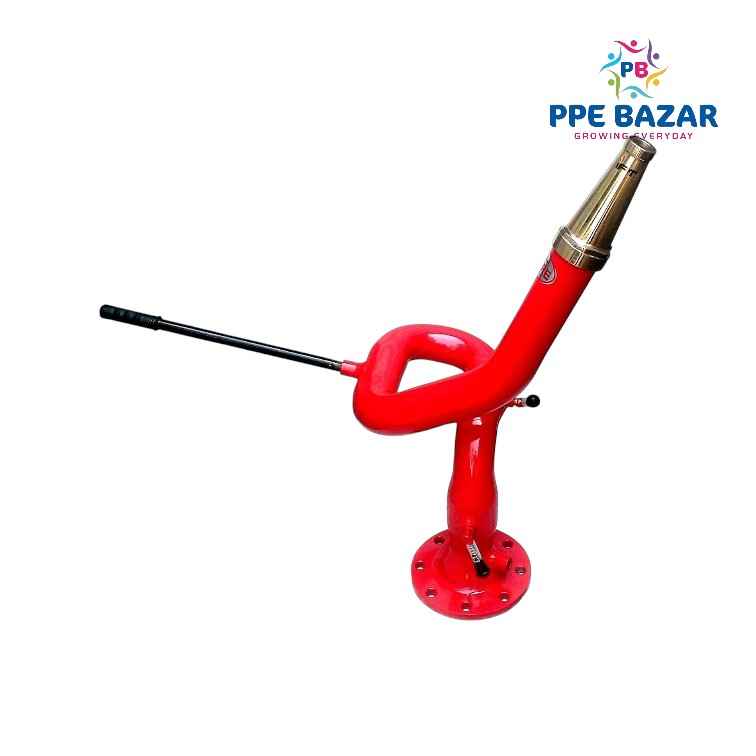

The AAAG Make Stand Post Type Water Monitor is a rugged, manually operated firefighting monitor designed in accordance with IS: 8442 Type-I. Fabricated using carbon steel pipes and elbows as per IS:11428 (Part 1–3) and hot dip galvanized for corrosion resistance, it delivers a high-capacity solid jet water stream for effective fire suppression.

Fitted with Gun Metal swivel joints and a 45 mm solid jet nozzle made of Aluminium Alloy, this monitor allows smooth horizontal and vertical movement and is ideal for fixed outdoor installations in industrial, marine, and municipal firefighting systems.

📐 Specifications:

Parameter	Details
Make	AAAG (Armtec)
Monitor Type	Stand Post Type – Water Monitor
Material of Construction	Carbon Steel Pipes & Elbows as per IS:11428 (Part 1–3)
Surface Protection	Hot Dip Galvanized
Barrel Size	100 mm (4”)
Inlet Connection	100 mm Flanged (ANSI B16.5 / PN16)
Swivel Joint Material	Gun Metal
Nozzle Type	45 mm Solid Jet Nozzle – Aluminium Alloy
Flow Capacity	3500 LPM @ 7 kg/cm² (approx. 925 US GPM)
Compliance Standard	IS: 8442 – Type I
Operation	Manual, Horizontal (360°) and Vertical (±30°) Movement
Mounting	Flanged Base Stand Post for Surface Installation
Application	Petrochemical Plants, Industrial Yards, Storage Tanks, Fire Water Systems

📐 Specifications:

Parameter	Details
Make	AAAG (Armtec)
Monitor Type	Stand Post Type – Water Monitor
Material of Construction	Carbon Steel Pipes & Elbows as per IS:11428 (Part 1–3)
Surface Protection	Hot Dip Galvanized
Barrel Size	100 mm (4”)
Inlet Connection	100 mm Flanged (ANSI B16.5 / PN16)
Swivel Joint Material	Gun Metal
Nozzle Type	45 mm Solid Jet Nozzle – Aluminium Alloy
Flow Capacity	3500 LPM @ 7 kg/cm² (approx. 925 US GPM)
Compliance Standard	IS: 8442 – Type I
Operation	Manual, Horizontal (360°) and Vertical (±30°) Movement
Mounting	Flanged Base Stand Post for Surface Installation
Application	Petrochemical Plants, Industrial Yards, Storage Tanks, Fire Water Systems

View Product PDF
