1. General Description:

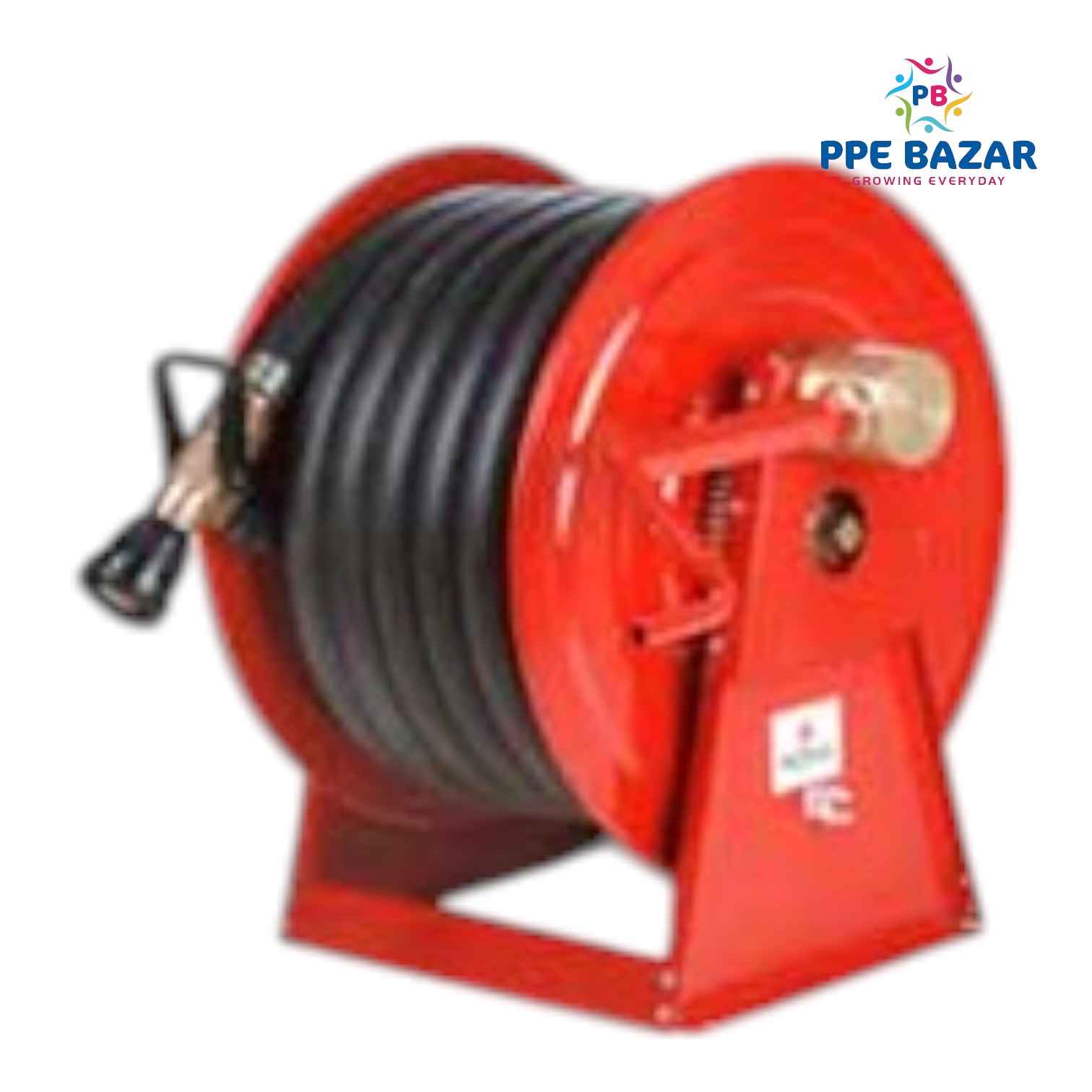

The AAAG Fire Hose Reel (Horizontal Type - Floor Mounted) is a robust and high-performance firefighting system designed for quick and efficient deployment. It features a mild steel (MS) hose reel manufactured as per IS: 884 and is equipped with a high-pressure braided rubber hose conforming to IS: 444, Type ‘II’, with an ISI mark. The system includes an MS-fabricated pedestal and MS-fabricated self-stand for stable and secure floor-mounted installation.
2. Technical Specifications:
A. Hose Reel Assembly:
- Type: Horizontal (Floor Mounted)
- Standard Compliance: IS: 884
- Material: Mild Steel (MS) with corrosion-resistant powder coating
- Mounting: Floor-mounted with MS Fabricated Pedestal & Self-Stand
- Swinging Mechanism: Fixed horizontal mounting for stable operation
- Inlet Connection: 25mm threaded inlet
- Reel Diameter: As per IS: 884 specifications
B. Hose Pipe:
- Material: High-pressure braided rubber hose
- Standard Compliance: IS: 444, Type ‘II’
- Diameter: 19mm (¾ inch)
- Length: 60 meters
- Marking: ISI marked for quality assurance
C. Shut-off Nozzle:
- Material: Stainless Steel (SS-304)
- Diameter: 19mm (¾ inch)
- Type: Manual shut-off nozzle for controlled water discharge
D. Support Structure:
- Pedestal: MS Fabricated for stability
- Self-Stand: MS Fabricated, ensuring durability and strong support
3. Key Features & Benefits:
✅ Heavy-Duty Construction: MS hose reel, pedestal, and self-stand for long-lasting durability
✅ ISI Certified Hose Pipe: High-pressure braided rubber hose as per IS: 444, Type ‘II’
✅ Corrosion Resistance: Powder-coated MS components and SS-304 shut-off nozzle
✅ Floor Mounted Design: Provides enhanced stability and support for large-capacity hose reels
✅ Efficient Water Flow: 19mm diameter hose ensures adequate pressure for firefighting
✅ Reliable & Easy to Use: Designed for quick and hassle-free operation in emergencies
4. Applications:
- Large Industrial Facilities
- Fire Stations & Emergency Response Units
- Commercial Buildings & Warehouses
- Oil & Gas Installations
- Public Infrastructure & Transport Hubs
