Product Description:

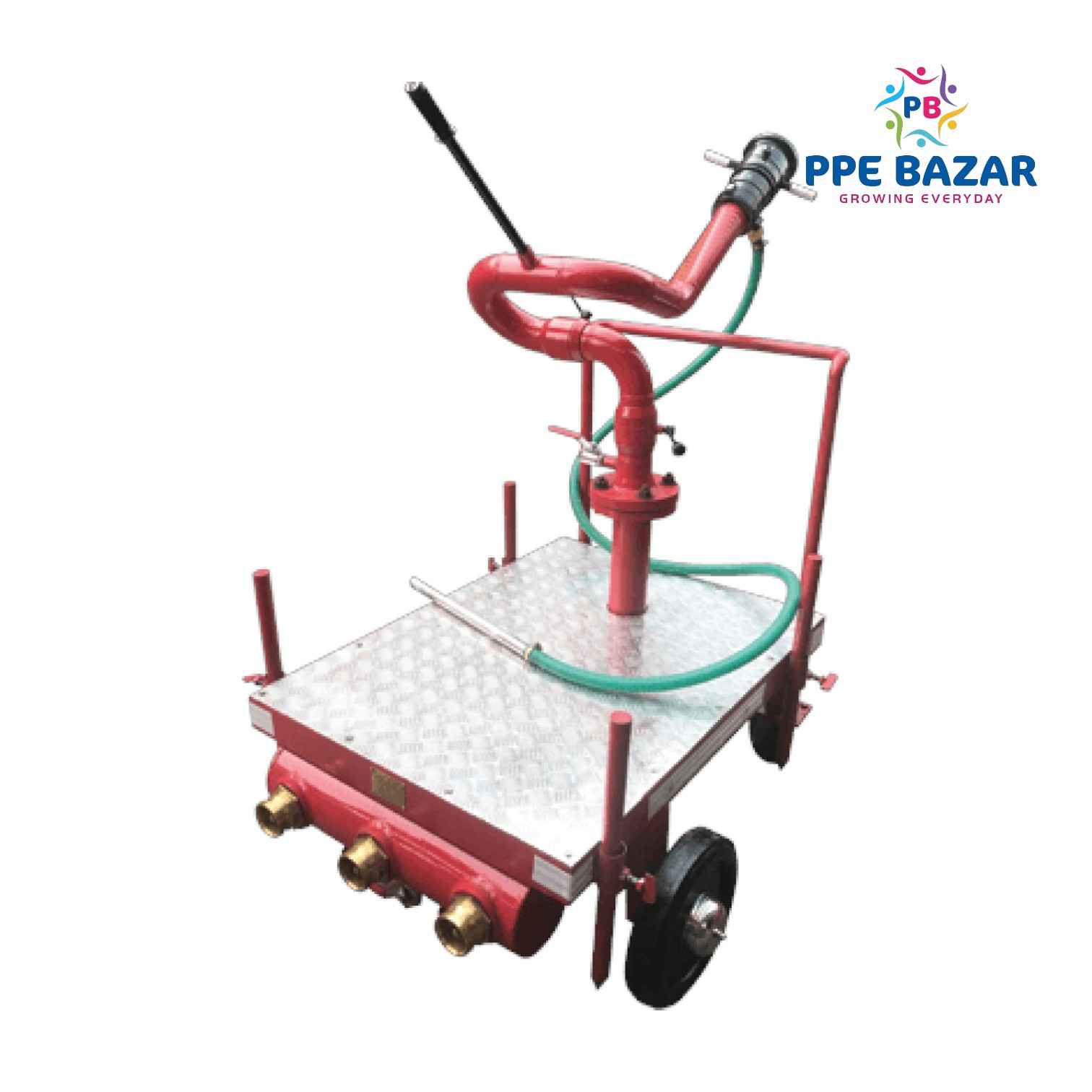

The Fabricated MS Trolley Mounted Water Cum Foam Monitor System is a portable, high-capacity firefighting solution designed for industrial and hazardous area applications such as oil terminals, chemical plants, refineries, and large storage areas. The trolley-mounted design allows easy deployment to fire-prone zones and ensures quick response to emergencies.
The system includes:
- A Heavy-Duty Fabricated MS Trolley with a durable aluminum checkered plate platform.
- A Stand Post Type Water Cum Foam Monitor, ISI Marked as per IS: 8442 Type “I”, made from hot-dip galvanized carbon steel.
- A Manifold with 2 Nos. 63mm Instantaneous Male Inlets, ensuring a reliable water/foam supply.
- An Aluminum Alloy Aqua Foam Nozzle with a PVC Pick-Up Tube & Stainless Steel Dip Tube, for efficient foam induction and high-velocity firefighting.
Specifications:
1. Fabricated MS Trolley:
| Parameter |
Details |
| Material of Construction |
Mild Steel (MS) – Heavy Grade Structural Steel |
| Trolley Type |
Mounted with Towing Facility for easy transportation |
| Axles & Wheels |
MS Heavy Grade Structural Axles with Durable Tyres |
| Platform Material |
2mm Thickness Aluminum Checkered Plate for anti-slip protection |
| Manifold Details |
2 Nos. of 63mm Instantaneous Male Inlets |
2. Stand Post Type Water Cum Foam Monitor:
| Parameter |
Details |
| Product Type |
Stand Post Type Water Cum Foam Monitor |
| Standard Compliance |
IS: 8442 Type “I” – ISI Marked |
| Material of Construction |
Carbon Steel Pipes & Elbows (Hot-Dip Galvanized for Corrosion Resistance) |
| Nominal Barrel Size |
75 mm |
| Inlet Connection |
100 mm Flanged Inlet (PN16/ANSI/DIN standard) |
| Flow Capacity |
2580 LPM at 7 kg/cm² inlet pressure |
| Swivel Joints |
Gunmetal (Smooth 360° Horizontal & -45° to +75° Vertical Movement) |
| Nozzle Type |
Aluminum Alloy Aqua Foam Nozzle |
| Foam Type Compatibility |
AFFF, AR-AFFF, Protein Foam |
| Foam Pickup Tube |
PVC Tube with Stainless Steel Dip Tube for reliable foam induction |
| Operating Mechanism |
Manual Operation |
Key Features:
✅ Portable & Mobile Fire Protection: The trolley-mounted design allows for easy movement and deployment.
✅ High Flow & Throw: Delivers 2580 LPM at 7 kg/cm², ensuring a strong and effective firefighting capability.
✅ Dual Functionality: Designed for both water and foam applications for maximum fire suppression.
✅ Heavy-Duty Construction: MS trolley with structural axles and aluminum checkered plate for durability.
✅ Corrosion Resistance: Hot-dip galvanized carbon steel ensures long-term outdoor use.
✅ Gunmetal Swivel Joints: Ensures smooth manual movement with 360° rotation and vertical adjustability.
✅ Self-Inducting Non-Aspirating Foam Nozzle: Efficiently mixes foam concentrate with water for effective fire control.
✅ Foam Induction System: Includes a PVC Pickup Tube with Stainless Steel Dip Tube for reliable foam supply.
Applications:
✔ Oil & Gas Facilities
✔ Chemical & Petrochemical Industries
✔ Storage Depots & Tank Farms
✔ Airports & Marine Docks
✔ Power Plants & Industrial Fire Protection
