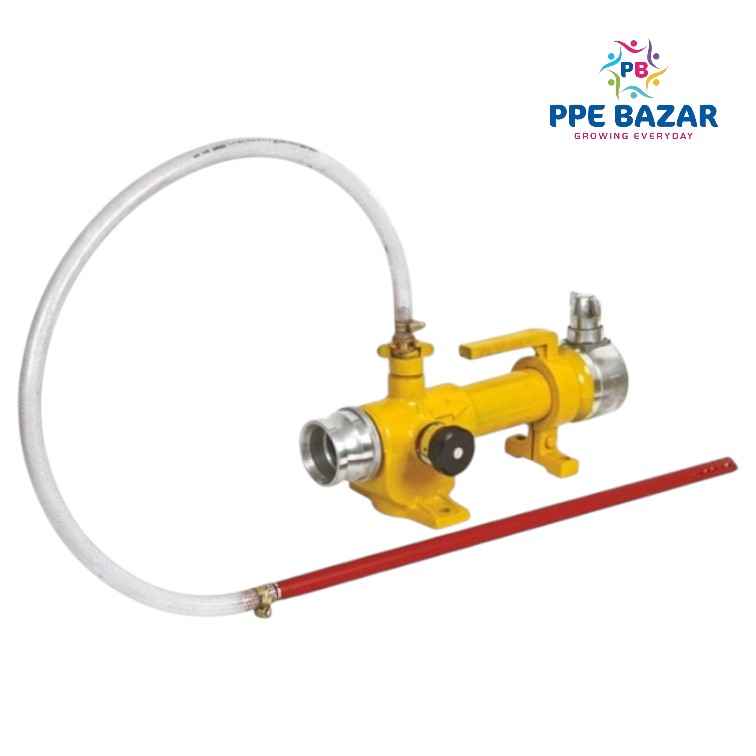

The AAAG UL Listed Inline Inductor (600 LPM) is a high-precision, portable foam proportioning device designed for effective firefighting in Class B fire scenarios involving flammable liquids. Engineered for reliable performance, it enables accurate foam induction at 3%, ensuring optimal mixing of foam concentrate with water for high-quality foam generation.
Constructed from corrosion-resistant Stainless Steel SS-304, the unit is built to withstand tough field conditions. It comes with 63 mm instantaneous inlet and outlet connections for easy integration with standard firefighting hoses and equipment. A 1-meter PVC pick-up tube with a Stainless Steel Dip Tube is supplied for drawing foam concentrate directly from foam containers.
📐 Specifications:
| Parameter |
Details |
| Product |
Inline Foam Inductor |
| Make |
AAAG (Agni Automatic Apparatus Group) |
| Flow Rate |
600 Litres Per Minute (LPM) |
| Construction Material |
Stainless Steel SS-304 |
| Certifications |
UL Listed |
| Foam Induction Rate |
3% (Preset, factory-calibrated) |
| Inlet Connection |
63 mm Male Instantaneous Coupling |
| Outlet Connection |
63 mm Female Instantaneous Coupling |
| Pick-Up Tube |
1 Meter Long PVC Flexible Tube |
| Dip Tube |
Stainless Steel SS-304 |
| Working Pressure |
Designed for 7 kg/cm² (100 psi) |
| Outlet Pressure Retention |
At least 65% of inlet pressure |
| Foam Compatibility |
Suitable for AFFF / AR-AFFF / FP / FFFP foam concentrates |
| Application Areas |
Industrial, Petrochemical, Refineries, Storage Yards, Marine, etc. |
| Finish |
Natural SS finish – Satin / Polished |
| Mounting |
Portable / In-line use with firefighting lines |
