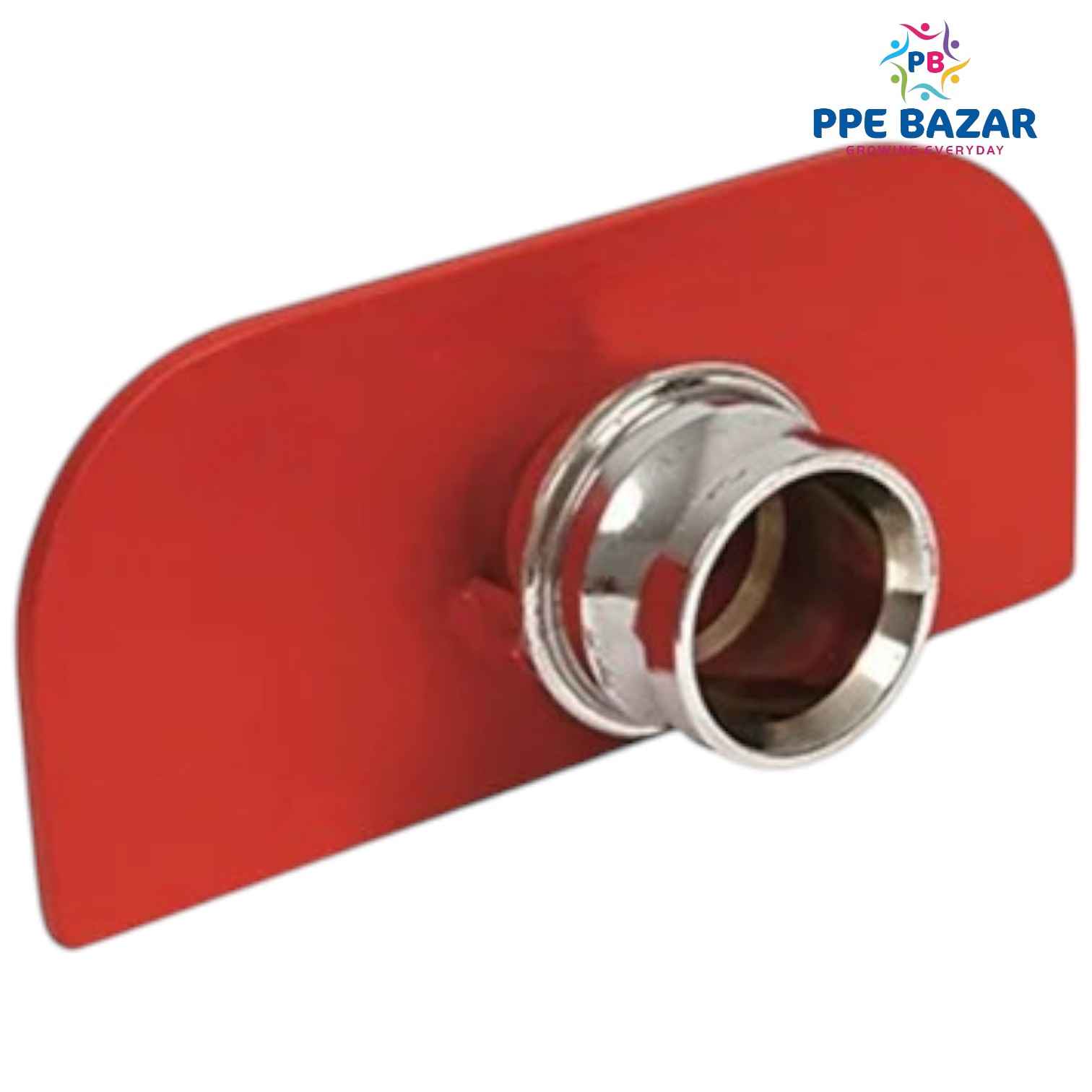

Water Curtain nozzle, 63 mm size, made of SS 304, having flow of approximately 900 lpm @ 7 kg/cm², with Male Instantaneous Inlet, suitable for use with 63 mm size hose, and giving the required spray pattern for radiant heat protection.
0
0 Reviews0 Orders 0 Wish listed
₹5,183.10 + GST
MRP ₹5,759.0010 % Off
Product Description:
The Water Curtain Nozzle is a specially designed firefighting and heat protection device that forms a continuous sheet of water spray, creating an effective thermal radiation shield. It is ideally suited for use in hazardous environments such as fuel storage areas, chemical processing plants, and high-temperature zones where radiant heat protection is essential.
This nozzle features a 63 mm Male Instantaneous Inlet for quick connection with standard fire hoses and is constructed from high-grade Stainless Steel 304 (SS 304) for superior corrosion resistance and mechanical strength.
Specifications:
Parameter
Details
Product Type
Water Curtain Nozzle
Material of Construction
Stainless Steel 304 (SS 304)
Inlet Connection
63 mm Male Instantaneous (conforming to IS: 903)
Outlet Design
Multi-orifice outlet to generate water curtain sheet
Flow Rate
Approx. 900 LPM (Litres per Minute)
Operating Pressure
7 Kg/cm² (approx. 100 psi)
Hose Compatibility
Designed for use with 63 mm fire hose
Spray Pattern
Wide fan-shaped water curtain for maximum radiant heat protection
Spray Angle
Typically 120° – 160° (varies with pressure and configuration)
Mounting
Portable or fixed, via hose or standpipe
Finish
Natural SS finish (polished) or optional electropolished
Weight
Approx. 3.5 – 5.0 kg
Applications
- Radiant heat shielding - Fire separation barriers - Tank farm protection - Industrial safety systems
Key Features:
High Flow Rate: Provides substantial water volume for effective heat shielding.
Durable Construction: SS 304 body ensures excellent corrosion resistance and long service life.
Instantaneous Connection: 63 mm Male Instantaneous inlet allows quick coupling in emergency scenarios.
Wide Spray Coverage: Engineered orifices create a broad and consistent water curtain.
Reliable Performance: Maintains consistent spray pattern at rated pressure.
