Product Description:

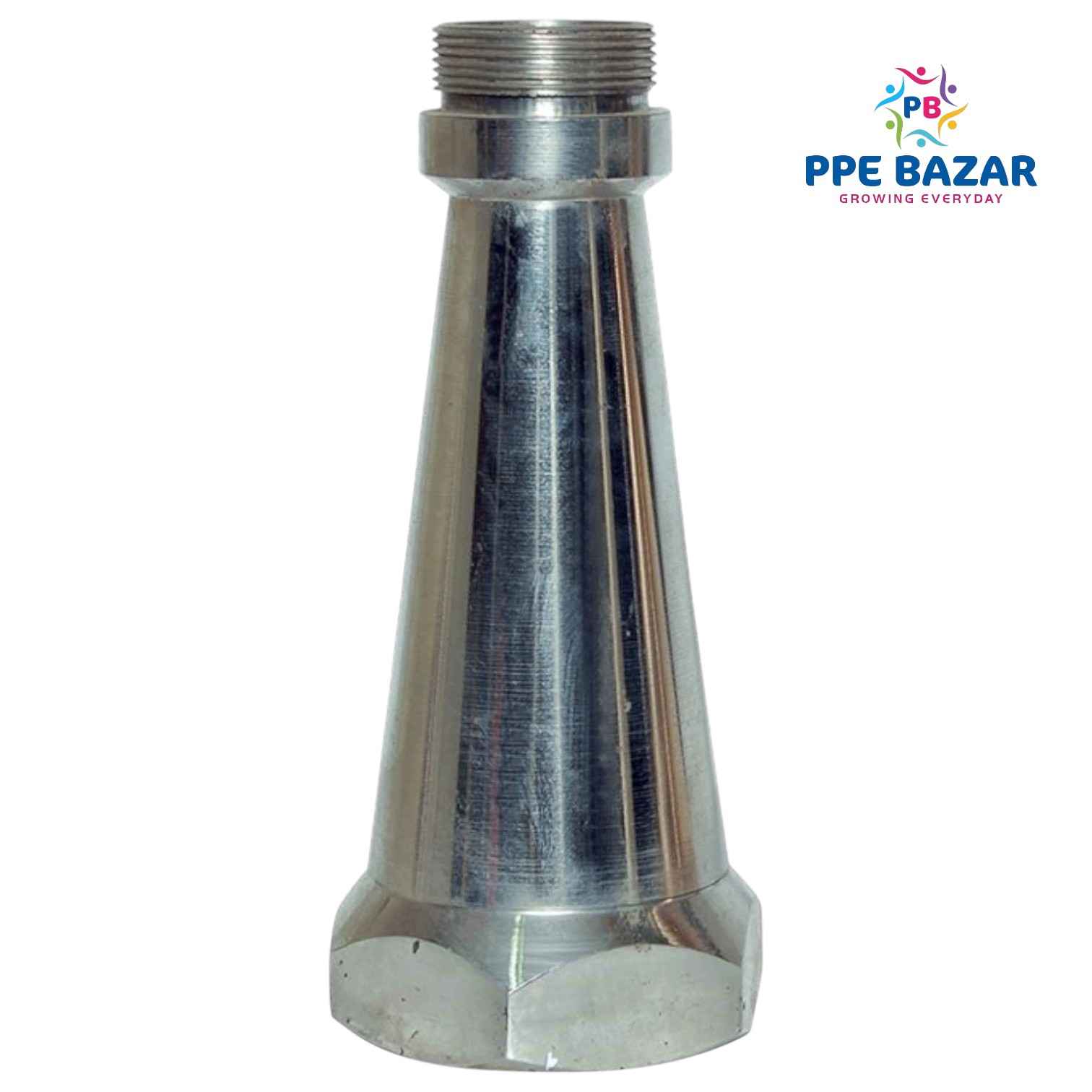

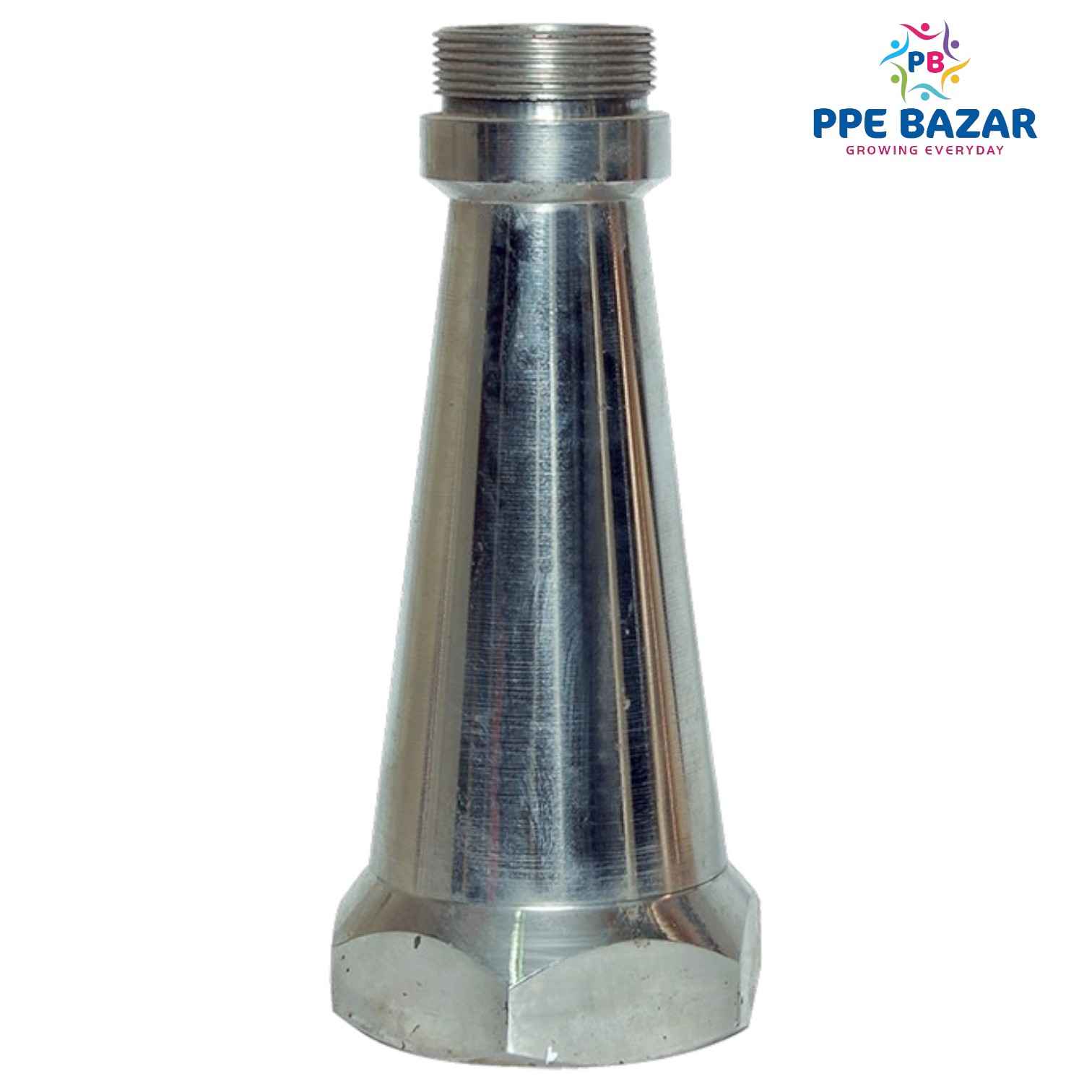

The Water Monitor Nozzle is a high-capacity firefighting nozzle designed to be mounted on fixed or portable water monitors for delivering a powerful and focused stream of water over long distances. Engineered to handle high flow rates and pressures, the nozzle plays a critical role in combating large-scale fires and protecting high-risk areas such as fuel storage terminals, chemical plants, warehouses, and airports.
Constructed from durable materials such as Stainless Steel (SS304/SS316), Aluminium Alloy, or Gunmetal, this nozzle offers excellent corrosion resistance and mechanical strength, making it ideal for both fresh and saltwater applications.
Specifications:
| Parameter |
Details |
| Product Name |
Water Monitor Nozzle |
| Material of Construction |
Stainless Steel (SS304/SS316), Aluminium Alloy, or Gunmetal |
| Flow Rate Options |
1750 LPM, 2250 LPM, 3000 LPM, or higher (as per monitor capacity) |
| Operating Pressure |
Typically 7 kg/cm² to 10.5 kg/cm² (100 – 150 psi) |
| Inlet Connection |
Flanged or threaded (63 mm / 75 mm / 100 mm), compatible with monitor outlet |
| Nozzle Type |
Jet / Jet-Spray / Adjustable / Fog / Solid Stream |
| Stream Adjustment |
Manual or automatic (twist-type or lever-operated for Jet-to-Spray control) |
| Throw Range |
Up to 45 – 60 meters (varies with pressure and flow rate) |
| Pattern Control |
Jet, Narrow Spray, Fog (optional: selectable or automatic fog) |
| Mounting Compatibility |
Suitable for all standard water/foam monitors (portable or fixed) |
| Swivel Range (if applicable) |
Vertical: -45° to +70°, Horizontal: 360° (through monitor controls) |
| Finish |
Natural, powder-coated, or anodized (optional) |
| Weight |
Approx. 5 – 8 kg (depending on material and size) |
| Applications |
Industrial firefighting, storage tank protection, loading bays, marine, etc. |
Key Features:
- High Flow Capability: Designed for large water discharge volumes at high pressure.
- Long Throw Distance: Enables firefighting from a safe distance.
- Durable Materials: Available in corrosion-resistant metals for indoor and outdoor use.
- Adjustable Stream Patterns: From solid jet to spray or fog, offering tactical flexibility.
- Wide Compatibility: Mounts easily to most fixed and portable monitors.
