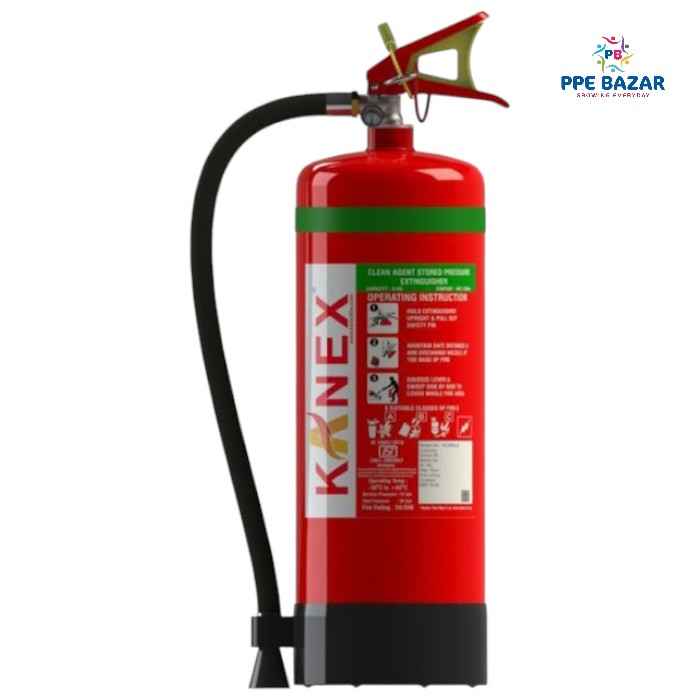

Engineered for critical environments requiring maximum protection, our 4KG HFC236fa extinguisher delivers:
- Enhanced 2A:34B fire rating for solid combustible and high-risk liquid fires
- Environmentally responsible HFC236fa clean agent (ODP=0)
- Non-conductive discharge - safe for live electrical equipment
- Zero residue formula protects sensitive assets
Technical Specifications
| Parameter | Specification |
|---|
| Model | KCARQ-4 |
| Extinguishing Agent | 4KG HFC236fa Clean Agent |
| Propellant | UHP Grade Nitrogen |
| Fire Rating | 2A:34B (Solids & Flammable Liquids) |
| Discharge Time | 14 seconds (96% efficiency) |
| Effective Range | 3.5 meters |
| Construction | 140mm diameter steel cylinder |
| Pressure Rating | 10 bar (service) / 35 bar (test) |
| Temperature Range | -30°C to +60°C operational |
| Weight | 6.7kg (charged) / 2.7kg (empty) |
| Dimensions | 490mm (H) × 140mm (Ø) |
Advanced Safety Features
✔ Unique Gauge Testing System (UGTS)
- Instant pressure status verification
- Visual indicator for quick inspection
✔ Military-Grade Construction
- TPI-approved 6G welding procedure
- Dual-layer epoxy-polyester coating
- Phosphate anti-corrosion treatment

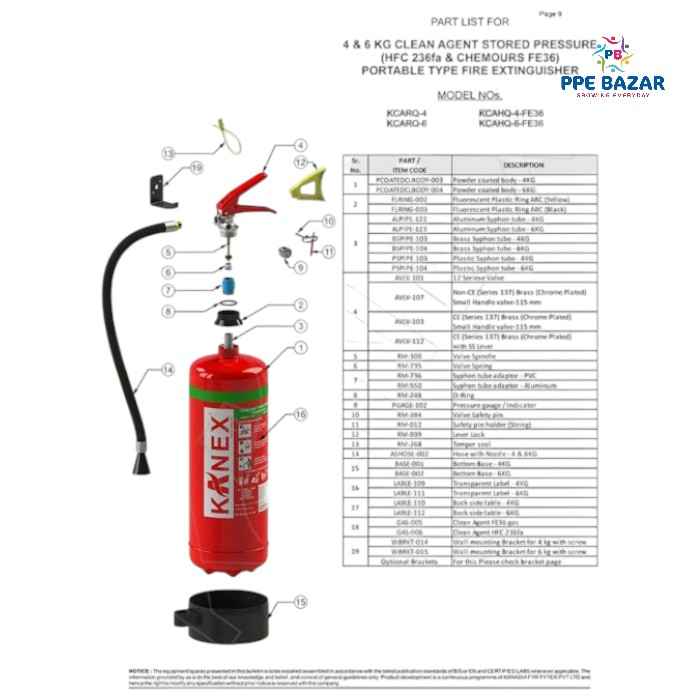

✔ Professional Components
- Chrome-plated brass valve assembly
- High-flexibility EPDM discharge hose
- Stainless steel pull pin with large loop
✔ Certified Compliance
- BIS Approved (IS 15683:2006)
- ISI Marked
- CE Certified
Critical Applications
- Data centers & server farms
- Telecom infrastructure
- Industrial control rooms
- Aircraft maintenance facilities
- Museums & heritage sites
Installation: Includes heavy-duty wall bracket (7.1kg shipping weight). Ships in protective corrugated packaging.
Operational Advantages
- Rapid Recharge Capability - Minimizes downtime
- Tamper-Evident Seal - Prevents unauthorized use
- Barcode Tracking - Simplifies maintenance records
- Lever Lock Mechanism - Ensures positive control during operation
Maintenance Protocol:
- Monthly visual inspections recommended
- Professional servicing every 5 years
- 10-year agent lifespan
Why Choose This System?
✅ Space-Efficient Design - Compact 490mm height fits confined spaces
✅ Wide Temperature Tolerance - Performs in extreme conditions (-30°C to +60°C)
✅ Environmentally Conscious - No ozone depletion potential
