Clean Agent HFC236FA Type Automatic Modular Fire Extinguisher 5 kg
0
0 Reviews0 Orders 0 Wish listed
₹23,919.70 + GST
MRP ₹34,171.0030 % Off

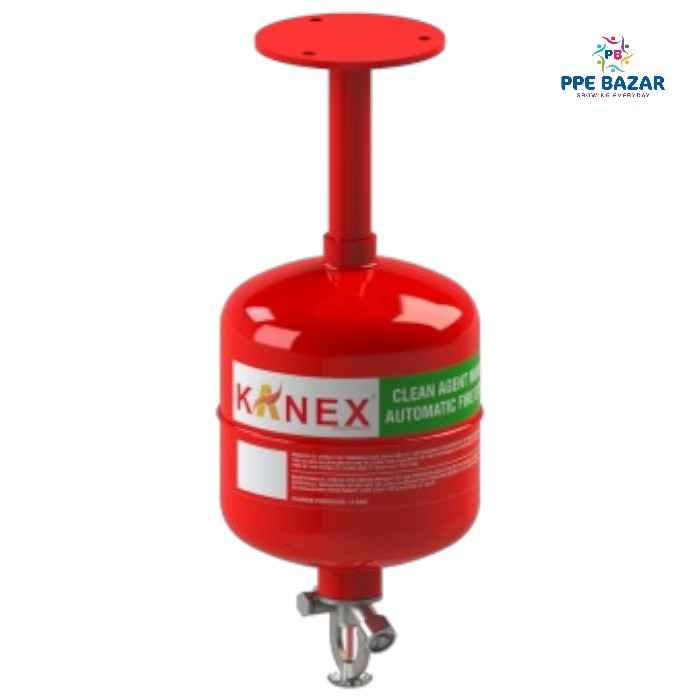

The KMCRQ-5 Automatic Modular Clean Agent Fire Extinguisher offers advanced, self-activating fire suppression using high-efficiency HFC-236fa gas. Designed for critical enclosed spaces, this ceiling-mounted unit combines detection and extinguishing in one compact module. With no need for external power, it provides 24/7 fire protection, making it an ideal choice for electrical panels, server rooms, data centers, and confined areas where quick response is crucial. Engineered with high-grade materials and tested to stringent standards, this extinguisher ensures maximum reliability and effortless maintenance.
Key Features
Filled with premium-grade HFC-236fa clean agent gas for efficient, residue-free fire suppression
Automatic detection and discharge system—no manual intervention or power supply needed
Equipped with a Unique Gauge Testing System (UGTS) for precise pressure monitoring
Chrome-plated brass sprinkler head for corrosion resistance and reliable discharge
Dual-layer polyester powder coating for enhanced durability inside and out
Each unit is hydrostatically tested to over 35 bar pressure for safety assurance
Expelled using Ultra High Purity (UHP) Nitrogen for stable, consistent performance
Phosphate-treated cylinder body provides strong resistance to corrosion
Offers uninterrupted protection even during power failures, with no power backup required
Cost-effective design that’s easy to service, maintain, and recharge
Barcoded labeling supports maintenance tracking and inventory management
Technical Specifications
Model
KMCRQ-5
Capacity
5 kg
Design
Ceiling Mounted
Height (Approx.)
374 mm (likely a typo in original: was 3754 mm)
Diameter (Approx.)
230 ± 10 mm
Average Discharge Time
6–8 seconds
Discharge Efficiency
98%
Operating Temperature
-30°C to +55°C
Service / Max / Test Pressure
15 / 35 bar
Expelling Agent
UHP Grade Nitrogen
Full Weight (Approx.)
7.6 kg
Empty Weight (Approx.)
2.6 kg
Shipping Weight (Approx.)
7.7 kg
Mounting Bracket
Ceiling Mount Stand
Approvals
Tested by Government Approved Lab
Volume Protection
2–2.5 m³
Area Protection
1.5–2 m²
Hanging Height Above Risk
2 meters
Product Details
The KMCRQ-5 Automatic Modular Clean Agent Fire Extinguisher offers advanced, self-activating fire suppression using high-efficiency HFC-236fa gas. Designed for critical enclosed spaces, this ceiling-mounted unit combines detection and extinguishing in one compact module. With no need for external power, it provides 24/7 fire protection, making it an ideal choice for electrical panels, server rooms, data centers, and confined areas where quick response is crucial. Engineered with high-grade materials and tested to stringent standards, this extinguisher ensures maximum reliability and effortless maintenance.
Key Features
Filled with premium-grade HFC-236fa clean agent gas for efficient, residue-free fire suppression
Automatic detection and discharge system—no manual intervention or power supply needed
Equipped with a Unique Gauge Testing System (UGTS) for precise pressure monitoring
Chrome-plated brass sprinkler head for corrosion resistance and reliable discharge
Dual-layer polyester powder coating for enhanced durability inside and out
Each unit is hydrostatically tested to over 35 bar pressure for safety assurance
Expelled using Ultra High Purity (UHP) Nitrogen for stable, consistent performance
Phosphate-treated cylinder body provides strong resistance to corrosion
Offers uninterrupted protection even during power failures, with no power backup required
Cost-effective design that’s easy to service, maintain, and recharge
Barcoded labeling supports maintenance tracking and inventory management
