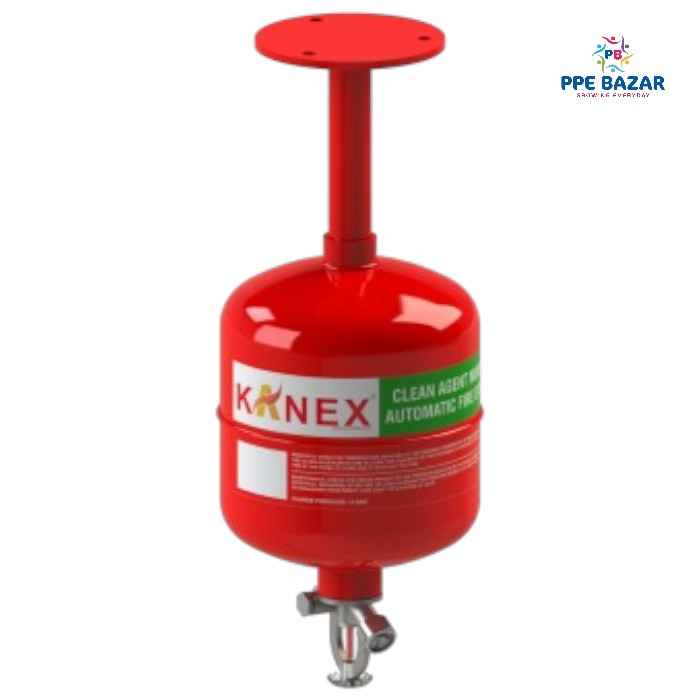

Engineered for unmanned spaces requiring instant fire suppression, our 2KG HFC236fa automatic extinguisher provides:
- Fully autonomous operation - activates without power or human intervention
- Ultra-fast 4-5 second discharge for rapid flame knockdown
- Clean agent technology - leaves no residue on protected assets
- Compact ceiling-mounted design for space-constrained areas
Technical Specifications
| Feature | Specification |
|---|
| Model | KMCRQ-2 |
| Agent | 2KG HFC236fa Clean Agent |
| Protection Coverage | 2.5m³ volume / 1-1.5m² area |
| Activation Height | 2m above protected risk |
| Discharge | 4-5 seconds (98% efficiency) |
| Construction | 150mm diameter steel vessel |
| Pressure Rating | 15 bar (service) / 35 bar (test) |
| Temperature Range | -30°C to +55°C operational |
| Weight | 3.6kg (charged) / 1.6kg (empty) |
| Dimensions | 380mm (H) × 150mm (Ø) |
Advanced Safety Features
✔ Automatic Thermal Detection
- Instant response to temperature spikes
- No electrical power required
✔ Military-Grade Construction
- 35 bar hydrostatic tested
- Dual-layer pure polyester coating
- Phosphate anti-corrosion treatment
✔ Precision Components
- Chrome-plated brass sprinkler head
- UHP Nitrogen propellant (99.999% pure)
- Factory-calibrated pressure switch
Specialized Applications
- Electrical cabinets
- Server racks
- Industrial control panels
- Telecom enclosures
- Museum display cases
Installation: Includes ceiling mounting stand (3.7kg shipping weight). Pre-charged for immediate deployment.
System Advantages
- Fail-Safe Operation - Works during power outages
- Space-Optimized - Compact 380mm design
- ECO-Friendly - Zero ozone depletion potential
- Low Maintenance - 5-year service interval
Certification: Complies with government laboratory standards for automatic suppression systems.
Why Professionals Specify This Unit:
✅ UGTS Monitoring - Unique gauge verifies charge status
✅ Non-Invasive - Preserves sensitive environments
✅ Traceability - Barcode for maintenance tracking
