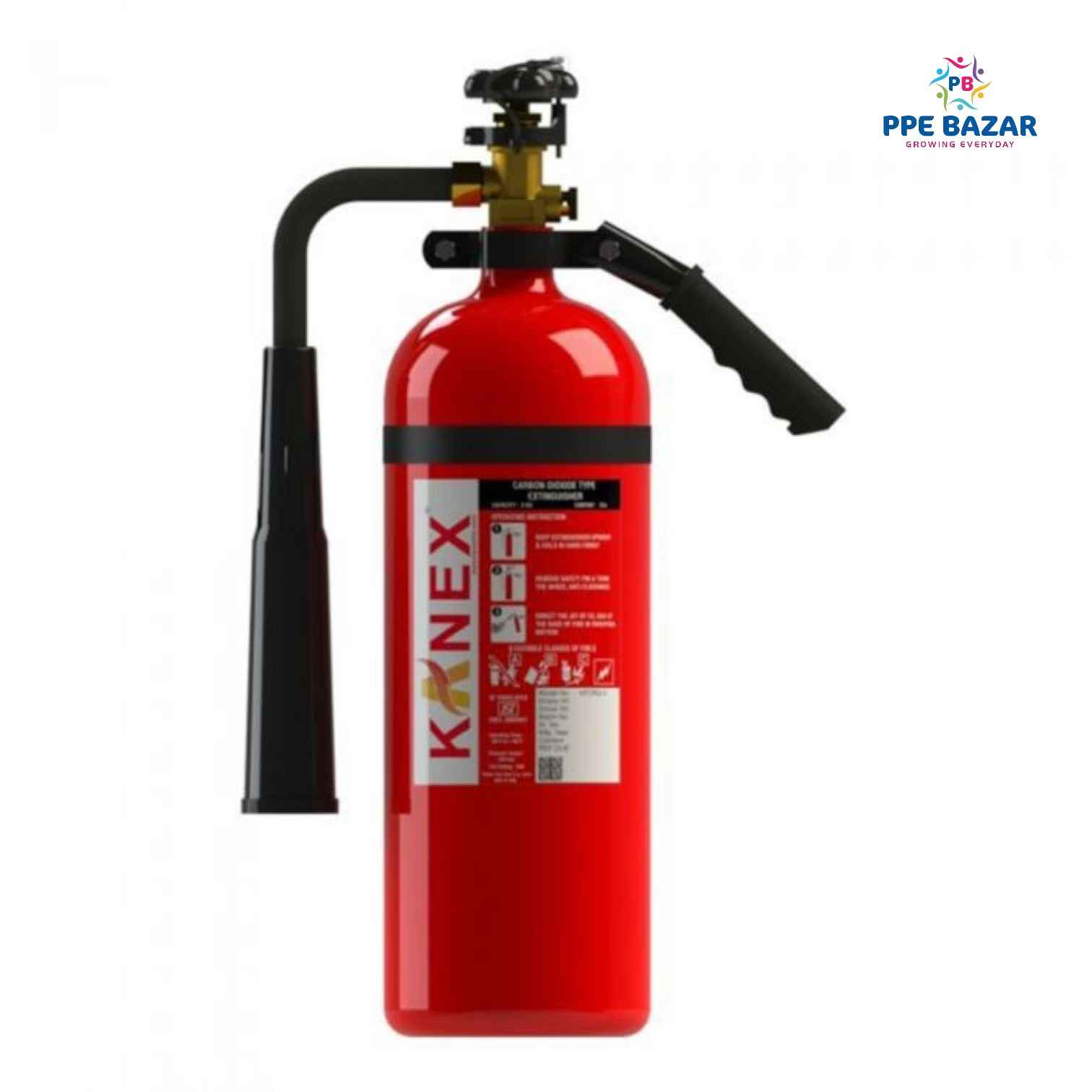

Co2 Extinguisher With Wheel Type Valve & 34B Fire Rating - 3kg
0
0 Reviews
0 Orders
0 Wish listed
₹5,600.00 + GST
MRP ₹8,000.00
30 % Off
Co2 Extinguisher With Wheel Type Valve & 34B Fire Rating - 3kg
Engineered for critical electrical and flammable liquid hazards, our 3KG CO₂ extinguisher delivers:
- 99.95% ultra-pure carbon dioxide - leaves no residue
- 34B-rated protection for serious liquid fuel fires
- Non-conductive discharge (safe up to 100,000V)
- Instant smothering action through oxygen displacement
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | KFCRQ-3 |
| Capacity | 3KG Liquid CO₂ |
| Fire Rating | 34B (High-Risk Liquid Fires) |
| Discharge | 11 seconds continuous operation |
| Effective Range | 2 meters (98% discharge efficiency) |
| Construction | 140mm diameter steel cylinder |
| Pressure Tested | 250 bar hydrostatic test pressure |
| Operating Limits | -30°C to +60°C |
| Weight | 13-14kg (charged) / 9.5-10.5kg (empty) |
| Dimensions | 545mm (H) × 140mm (Ø) |
Professional Safety Components
✔ Industrial-Grade Valve System
- Heavy-duty brass wheel valve
- Pressure relief safety disc
- High-pressure wire-braided discharge hose
✔ Rugged Construction
- 3mm thick steel shell
- Impact-resistant enamel finish
- Horn-type precision nozzle
✔ Certified Compliance
- BIS Approved (IS 2878:2004)
- CE Marked
- PESO/CCOE Certified

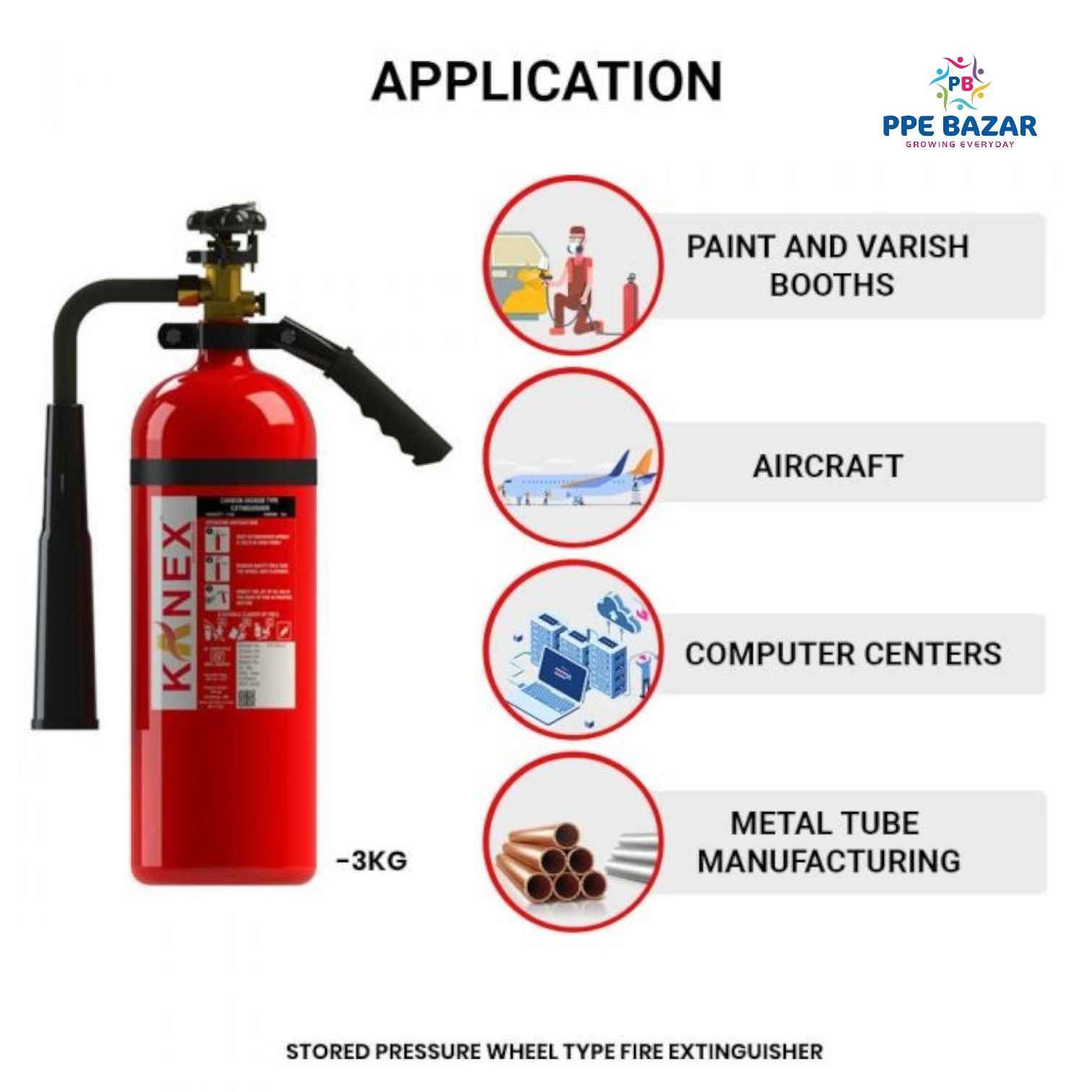

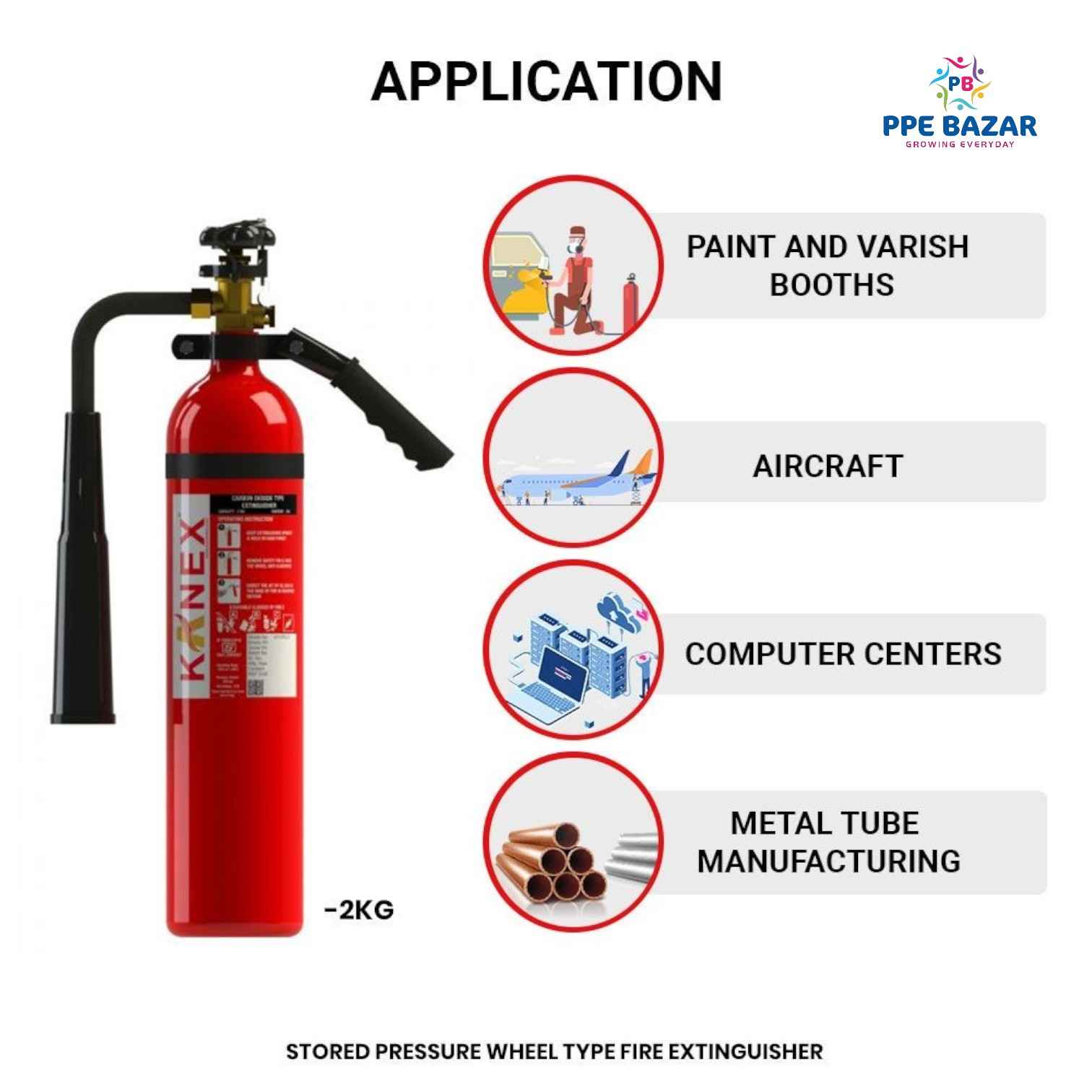

Critical Applications
- Electrical substations
- Industrial paint booths
- CNG/LPG facilities
- Aircraft maintenance
- Transformer yards
Installation: Includes heavy-duty wall bracket (13.5-14.5kg shipping weight). Wheel valve allows precise flow control.
Maintenance Protocol:
- Monthly visual inspections
- Annual professional servicing
- 5-year hydrostatic testing
Why Choose This Extinguisher?
- Clean Agent - No damage to sensitive equipment
- Rapid Recharge - Economical maintenance
- High Visibility - White discharge cloud confirms operation
- No Thermal Shock - Safe for hot surfaces
