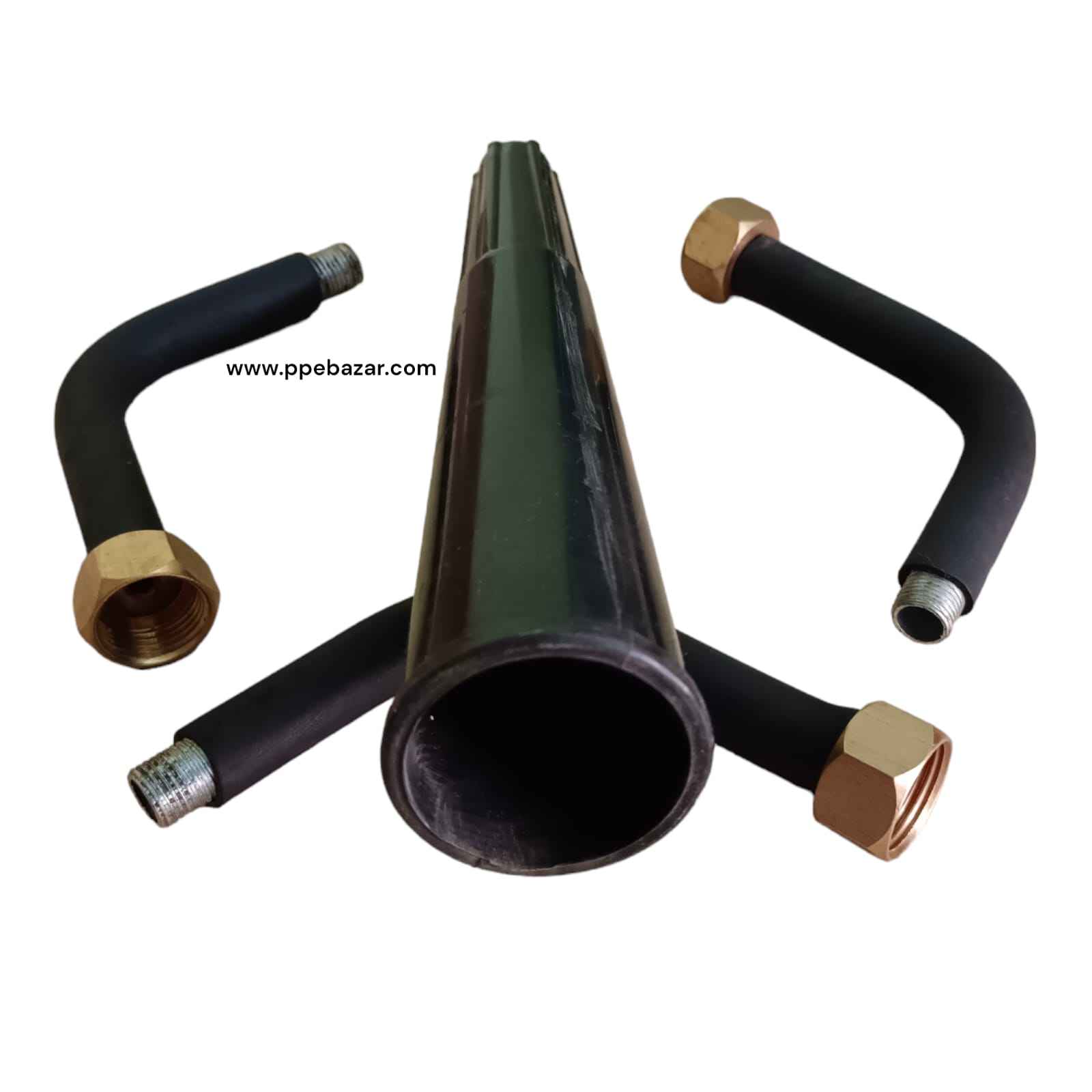

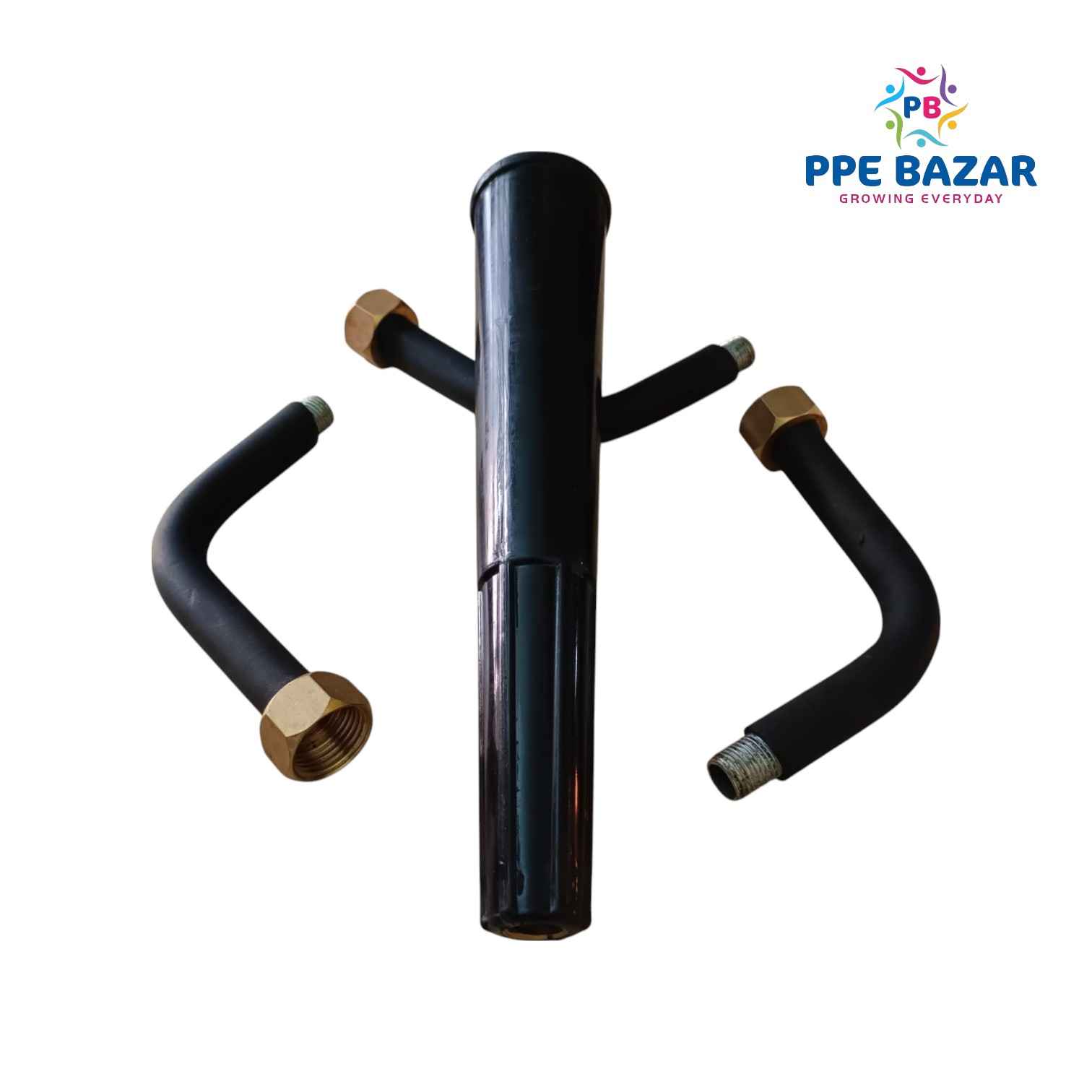

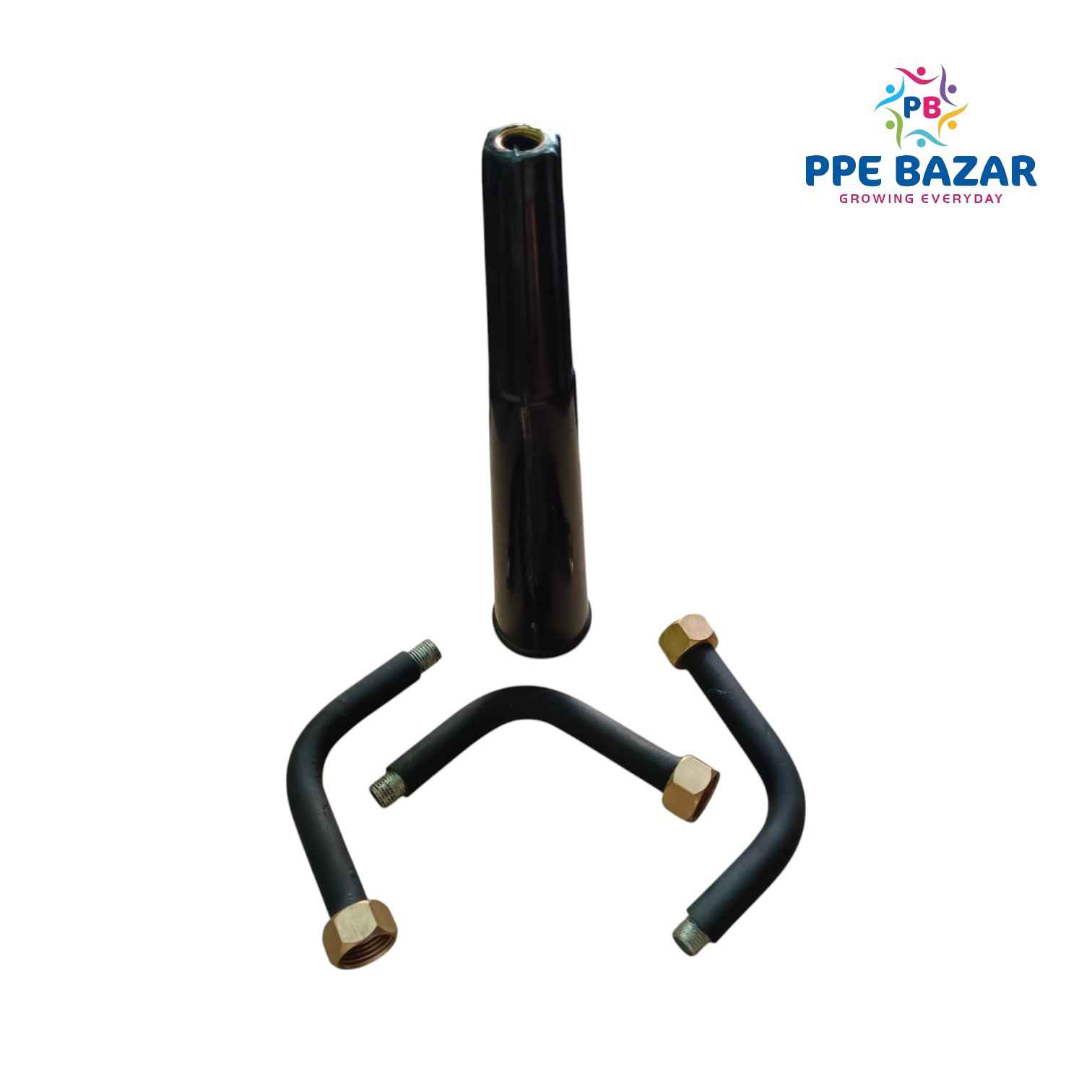

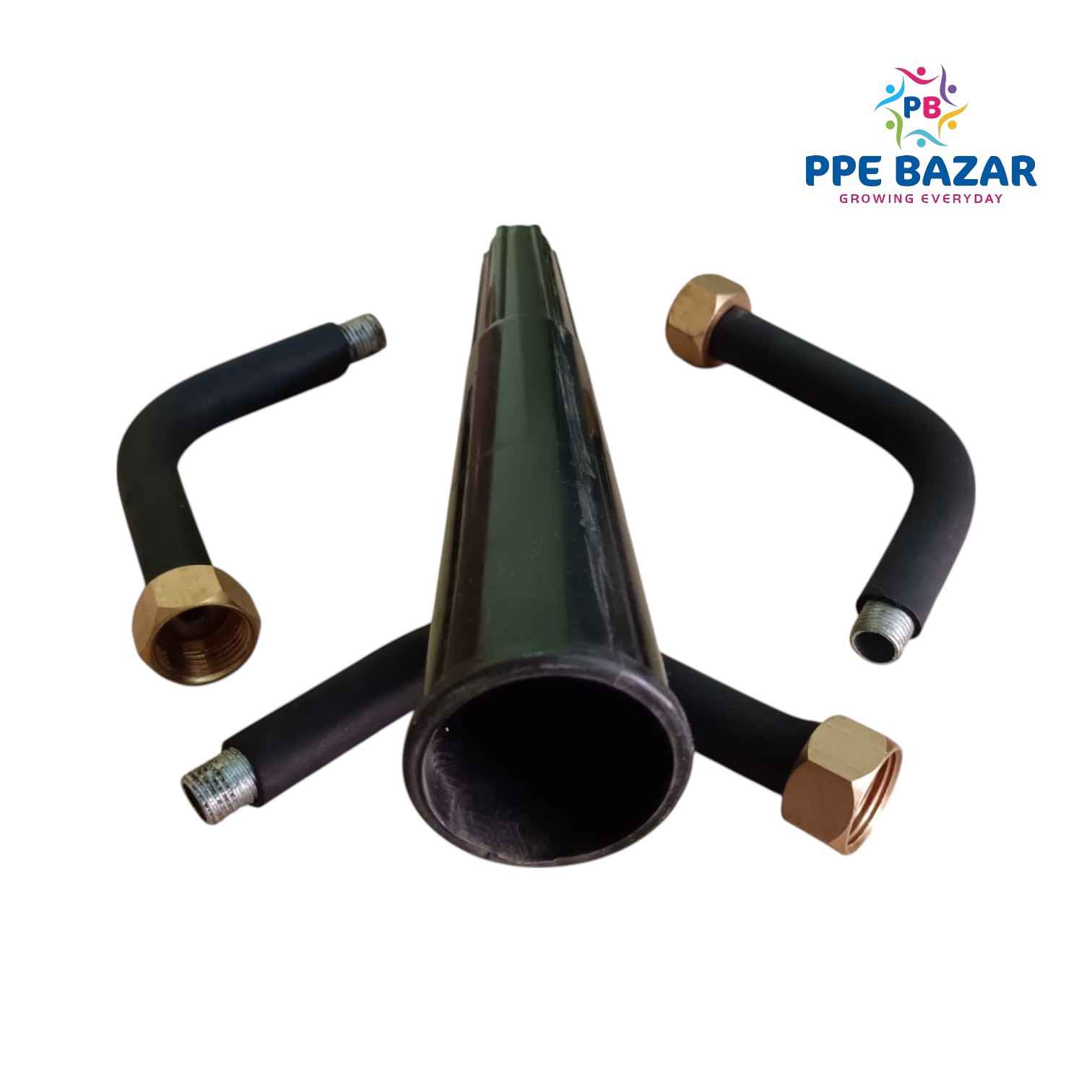

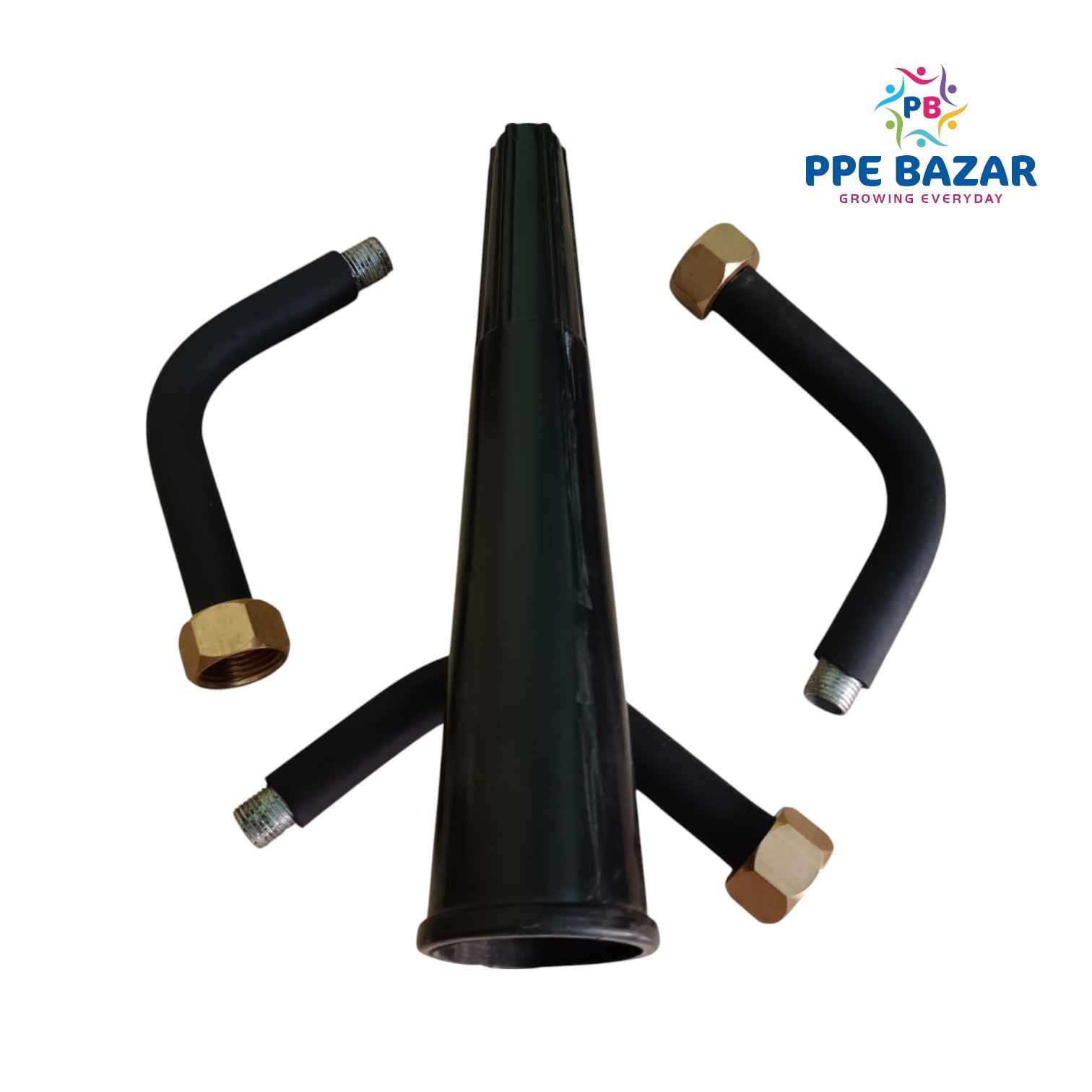

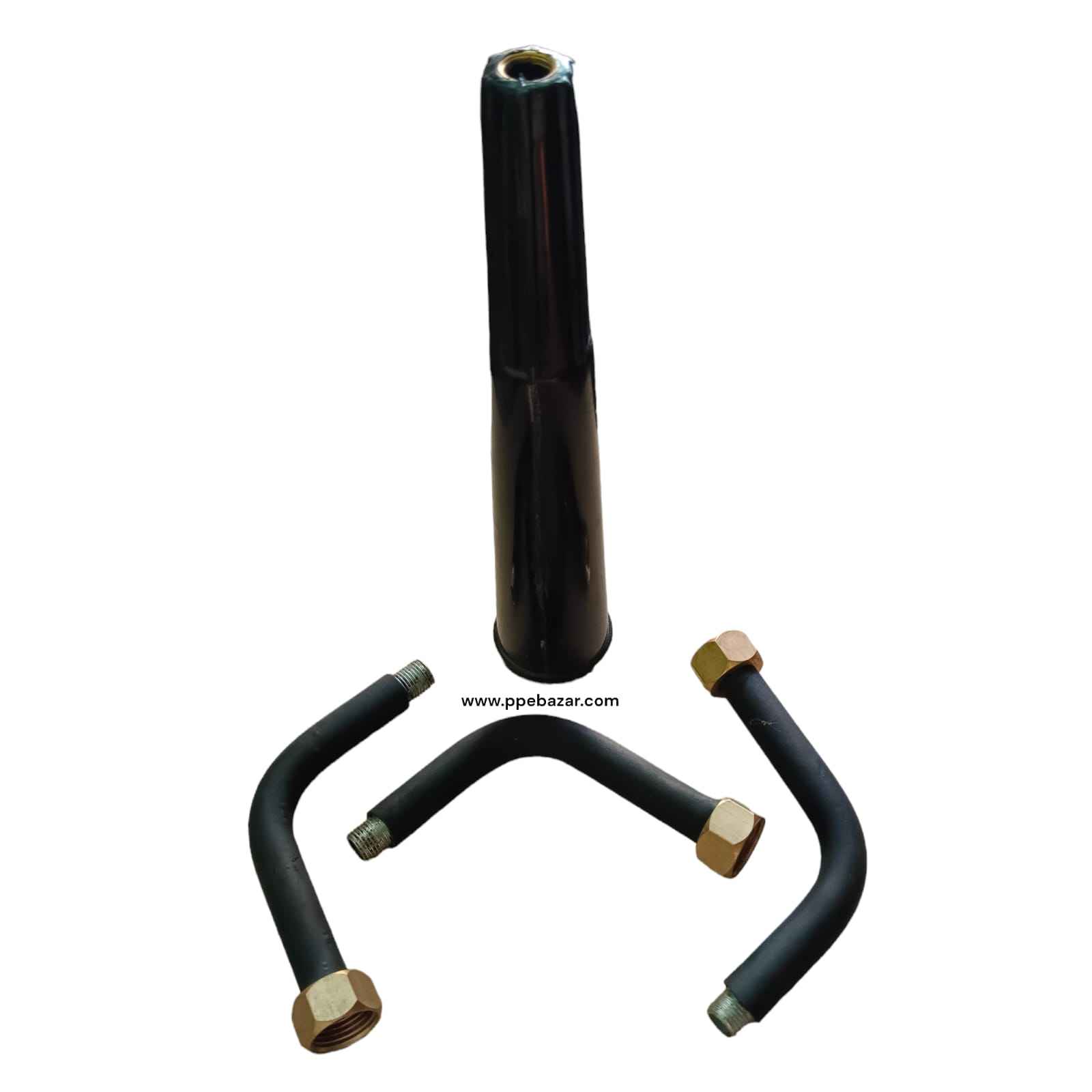

This accessory is specifically designed for use with CO₂ fire extinguishers, allowing safe and efficient discharge of carbon dioxide for fire suppression. It is compatible with both 2 kg and 3 kg CO₂ fire extinguishers.
3. Technical Specifications
A. General Construction
- Material: High-quality mild steel (MS) or stainless steel (SS) bend pipe for durability and corrosion resistance.
- Finish: Powder-coated or black paint for rust prevention.
- Bend Design: Precision-machined bend to ensure smooth CO₂ flow.
B. Connection and Compatibility
- Nut Type: Single-threaded nut for secure and leak-proof connection to the extinguisher cylinder valve.
- Thread Type: Compatible with standard CO₂ cylinder valve threads (confirm exact specifications based on extinguisher standards).
- Mounting: Easy to attach and detach without requiring specialized tools.
C. Dimensions and Weight
- Pipe Diameter (Inner): 10–12 mm, ensuring optimal gas flow.
- Pipe Length:
- 2 kg Model: Approximately 350–400 mm.
- 3 kg Model: Approximately 450–500 mm.
- Wall Thickness: 1.5–2 mm for durability under pressure.
D. Discharge Horn
- Material: High-strength nylon or ABS plastic, designed to withstand extremely low temperatures during CO₂ discharge.
- Shape: Conical horn for efficient gas dispersal and noise reduction.
- Attachment: Firmly fixed to the bend pipe to ensure no gas leakage during use.
- Length:
- 2 kg Model: Approximately 100–120 mm.
- 3 kg Model: Approximately 120–150 mm.
E. Operating Pressure
- Designed to handle CO₂ discharge pressure typically ranging from 50 to 60 bar.
F. Weight
- 2 kg Model: Approximately 0.5–0.7 kg.
- 3 kg Model: Approximately 0.8–1 kg.
4. Compliance and Standards
- Meets ISO 9001 and EN3 standards for fire safety equipment.
- Manufactured as per BIS (Bureau of Indian Standards) or equivalent international standards.
5. Features and Benefits
- Durability: Constructed with robust materials for extended service life.
- Safety: Designed to handle high-pressure CO₂ discharge safely without leaks.
- Ease of Use: Lightweight and ergonomically designed for easy handling.
- Compatibility: Suitable for standard 2 kg and 3 kg CO₂ fire extinguishers.
- Optimal Performance: Conical horn ensures effective gas dispersal and fire suppression.
6. Applications
- Industrial plants
- Commercial buildings
- Laboratories
- Server rooms
- Warehouses
