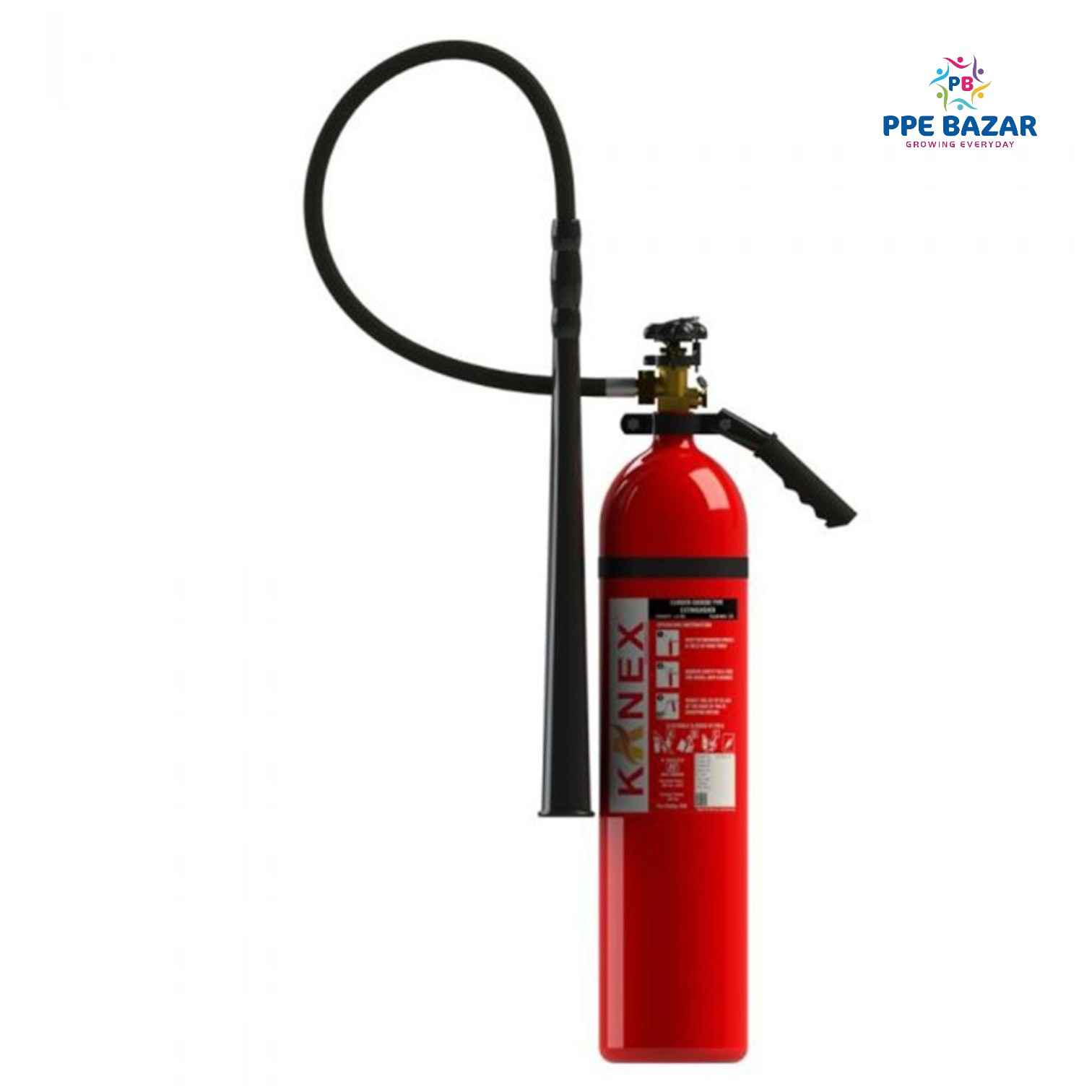

Engineered for maximum protection against severe fire hazards, our 4.5KG CO₂ extinguisher delivers:
- 55B-rated suppression for high-risk flammable liquid fires
- 99.99% laboratory-grade CO₂ for clean, residue-free operation
- Non-conductive discharge (safe for live electrical equipment up to 100kV)
- Instant oxygen displacement for rapid flame knockdown
Technical Specifications
| Feature | Specification |
|---|
| Model | KFCRQ-4.5 |
| Contents | 4.5KG Liquid CO₂ |
| Fire Rating | 55B (Extreme Hazard Liquids) |
| Discharge | 11 second duration (98% efficiency) |
| Range | 2 meter precision throw |
| Construction | 140mm diameter reinforced steel |
| Pressure Rating | 60 bar (service) / 205 bar (test) |
| Temperature Range | -30°C to +60°C operational |
| Weight | 18.5kg (charged) / 13.5kg (empty) |
| Dimensions | 545mm (H) × 140mm (Ø) |
Military-Grade Safety Components

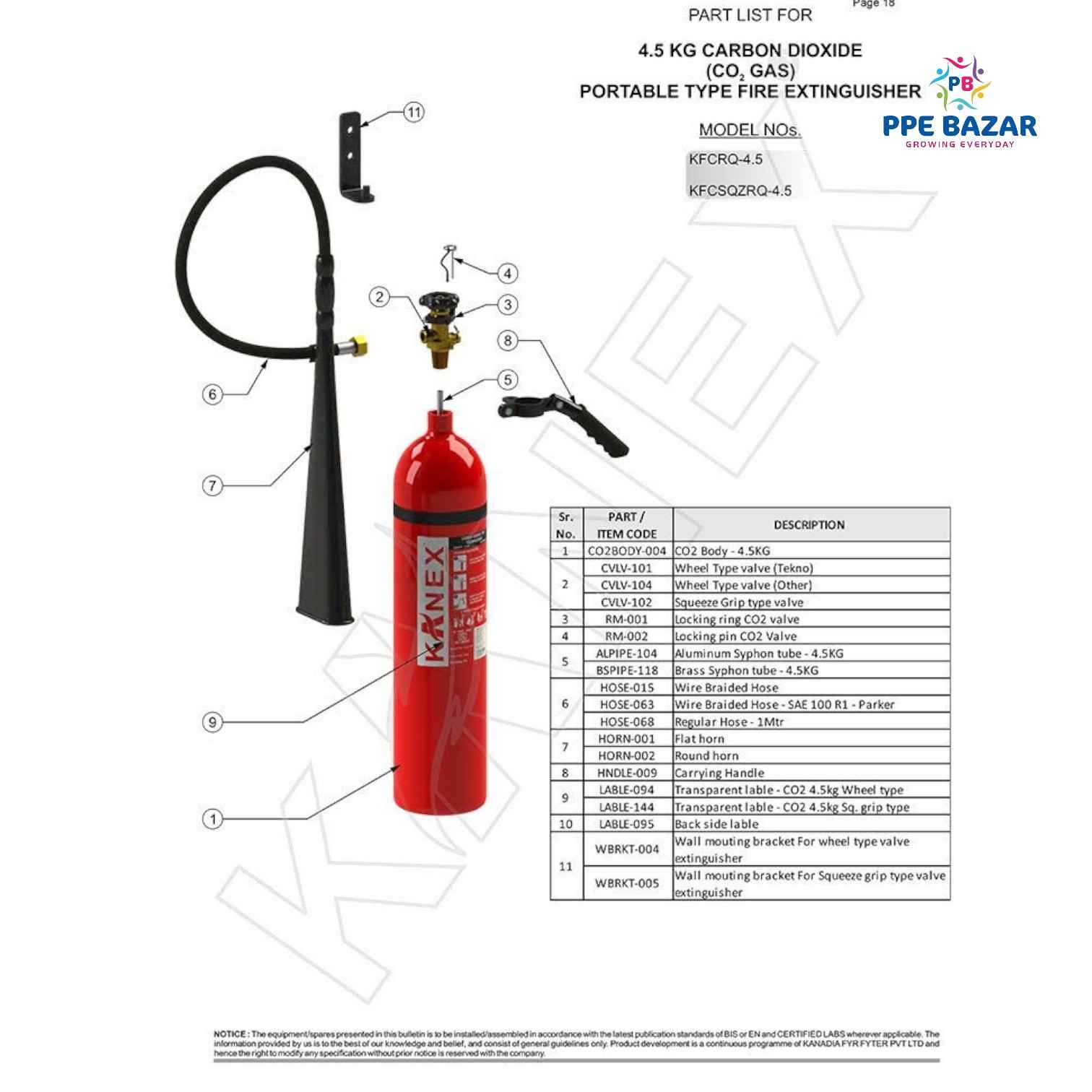

✔ Professional Valve System
- Industrial brass wheel valve
- Dual-pressure relief mechanism
- High-tensile wire-braided hose
✔ Ruggedized Construction
- 250 bar hydrostatic tested
- Impact-resistant enamel coating
- Frost-proof horn nozzle
✔ Certified Compliance
- BIS Approved (IS 2878:2004)
- CE Certified
- PESO/CCOE Approved
Critical Application Environments
- Petrochemical plants
- Aircraft hangars
- Industrial solvent areas
- Power generation facilities
- Marine engine rooms
Installation: Includes heavy-duty wall bracket (19-20kg shipping weight). Wheel valve allows precise flow modulation.
Maintenance Protocol:
- Monthly visual inspections mandatory
- Annual professional servicing required
- 5-year hydrostatic testing cycle
Operational Advantages
- Clean Agent Technology - Zero residue protects sensitive equipment
- Rapid Recharge Capability - Minimizes downtime
- High-Visibility Discharge - White cloud confirms deployment
- Thermal Shock Protection - Safe for hot surfaces+
