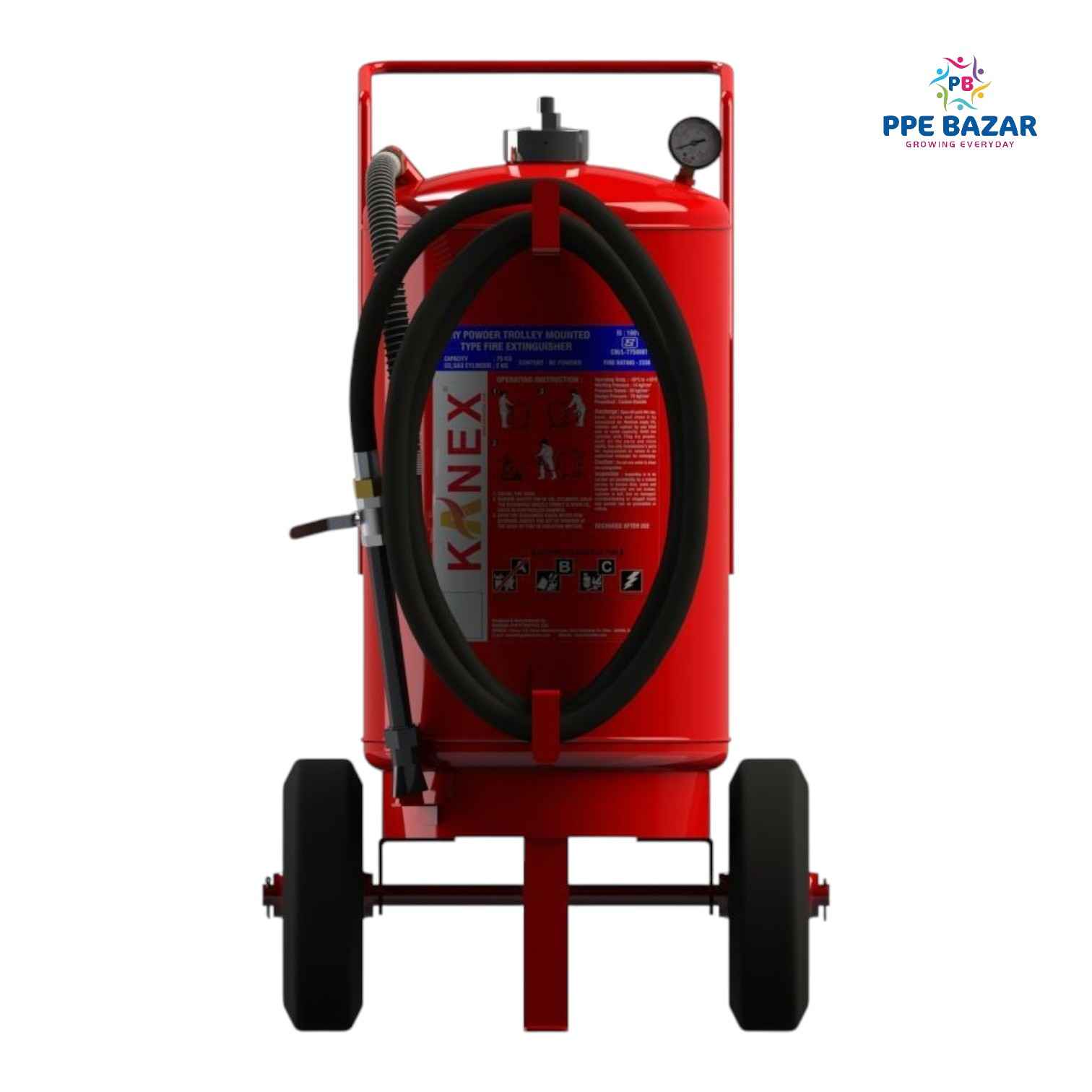

Engineered for critical fire hazards, our 25KG Potassium Bicarbonate (PBC) dry chemical extinguisher delivers superior 233B-rated performance against:
- Class B fires (flammable liquids: fuels, solvents, oils)
- Class C fires (flammable gases: LPG, CNG, hydrogen)
- Electrical fires (non-conductive suppression)
Advanced Technical Specifications
| Feature | Specification |
|---|
| Model | KFDRQ-25-P |
| Extinguishing Agent | 25KG PBC Powder (IS 4308 compliant) |
| Fire Rating | 233B |
| Discharge Duration | 32 seconds continuous operation |
| Effective Range | 6 meter throw (90% discharge efficiency) |
| Cylinder Construction | 300mm diameter, 2.8mm thick steel |
| Pressure Rating | 15 bar (service) / 18 bar (max) / 35 bar (test) |
| Temperature Range | -30°C to +55°C operational capability |
| Weight | 84kg (charged) / 59kg (empty) |
| Dimensions | 980mm (H) × 300mm (Ø) |
Industrial-Grade Safety Features
✔ Triple-Protection Coating System
- Hydraulic pressure tested
- Anti-corrosive phosphate treatment
- UV-resistant pure polyester powder coat
✔ Premium Firefighting Components
- Marine-grade brass valve assembly (IS:319)
- Precision aluminum alloy nozzle (IS:617)
- Reinforced PVC braided discharge hose
✔ Certified Compliance
- BIS Approved (IS 16018:2012)
- ISI Mark quality assurance
Specialized Applications
- Aviation fuel stations
- Chemical processing plants
- Industrial paint booths
- Transformer yards
- Marine engine rooms
Installation Note: Requires wheeled trolley or fixed mounting bracket (85kg shipping weight). Includes heavy-duty wall mounting hardware.
Maintenance Protocol: Quarterly professional inspections recommended for optimal performance in high-risk environments.
