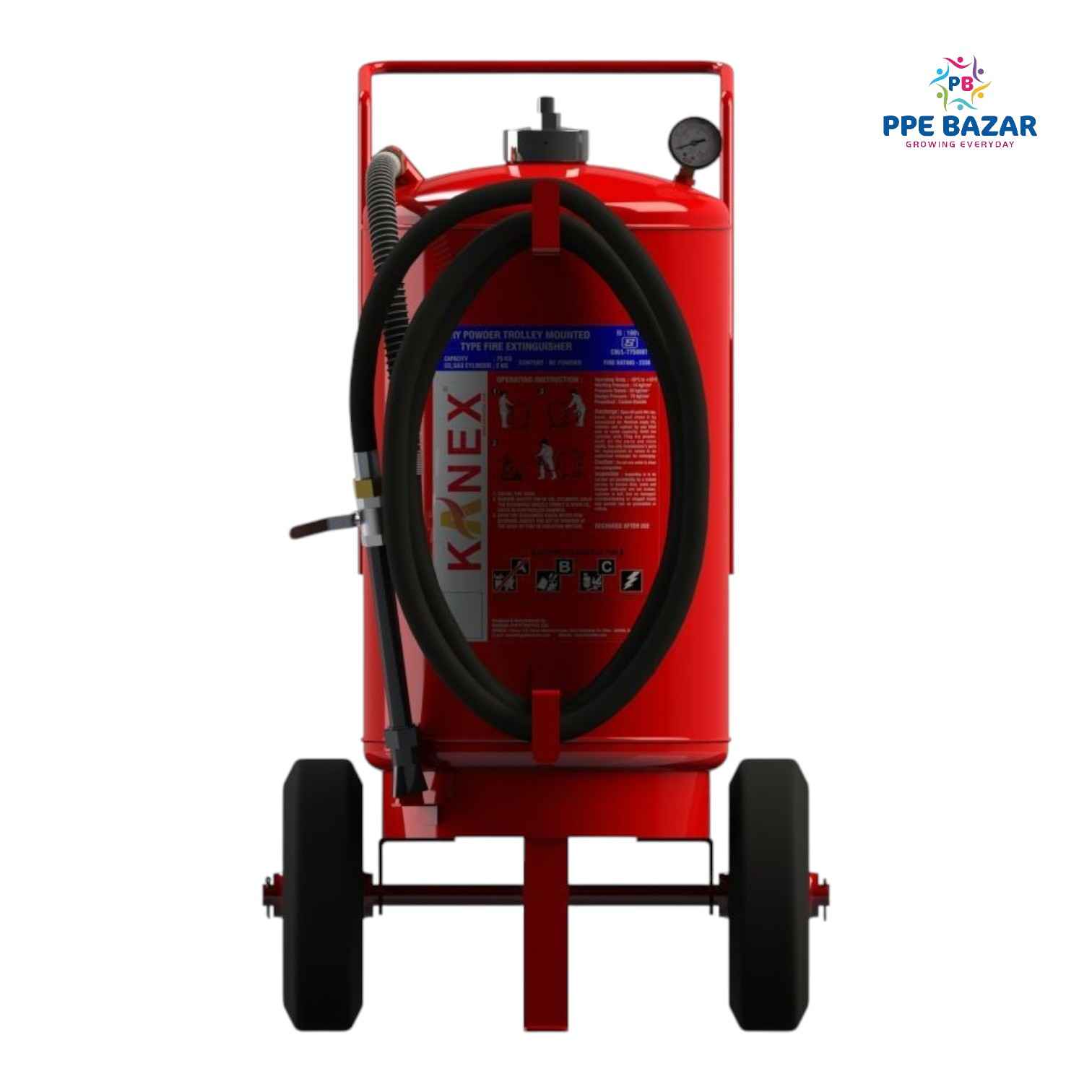

Designed for high-risk industrial environments, our 25KG Sodium Bicarbonate (SBC) dry chemical extinguisher delivers powerful 233B-rated performance against:
- Class B (flammable liquids: petrol, oils, solvents)
- Class C (flammable gases: LPG, methane)
- Electrical fires (non-conductive powder)
Engineered for Maximum Reliability
✔ Ultra-High Capacity - 25KG SBC powder load (IS 4308 compliant)
✔ Extended Discharge - 32-second operation with 6-meter throw
✔ Industrial Construction - 300mm diameter steel cylinder with:
- Hydraulic pressure testing certification
- Anti-corrosion phosphate treatment
- UV-resistant pure polyester coating
✔ Professional-Grade Components:
- Brass fittings (IS:319 compliant caps/valves)
- Aluminum alloy nozzle (IS:617 certified)
- Reinforced PVC braided hose (kink-resistant)
✔ Safety Certified:
- BIS Approved (IS 16018:2012)
- ISI Marked for quality assurance
Technical Specifications
| Parameter | Specification | |
|---|
| Model | KFDRQ-25-S | |
| Contents | 25kg SBC Powder | |
| Fire Rating | 233B | |
| Discharge | 90% efficiency | 32 sec duration |
| Range | 6 meters effective coverage | |
| Construction | 3.0mm thick steel cylinder | |
| Pressure | 15 bar (service) / 18 bar (max) / 35 bar (test) | |
| Temperature | -30°C to +55°C operational range | |
| Weight | 84kg (charged) / 59kg (empty) | |
| Dimensions | 980mm (H) × 300mm (Ø) | |
Heavy-Duty Applications
- Oil & gas facilities (refineries, storage tanks)
- Chemical processing plants
- Aircraft hangars & fuel depots
- Power generation stations
- Industrial manufacturing units
Installation Note: Requires wheeled cart or fixed mounting due to weight (85kg shipping weight). Includes wall bracket for stationary placement.
Maintenance Tip: Annual professional inspection recommended for optimal performance.
