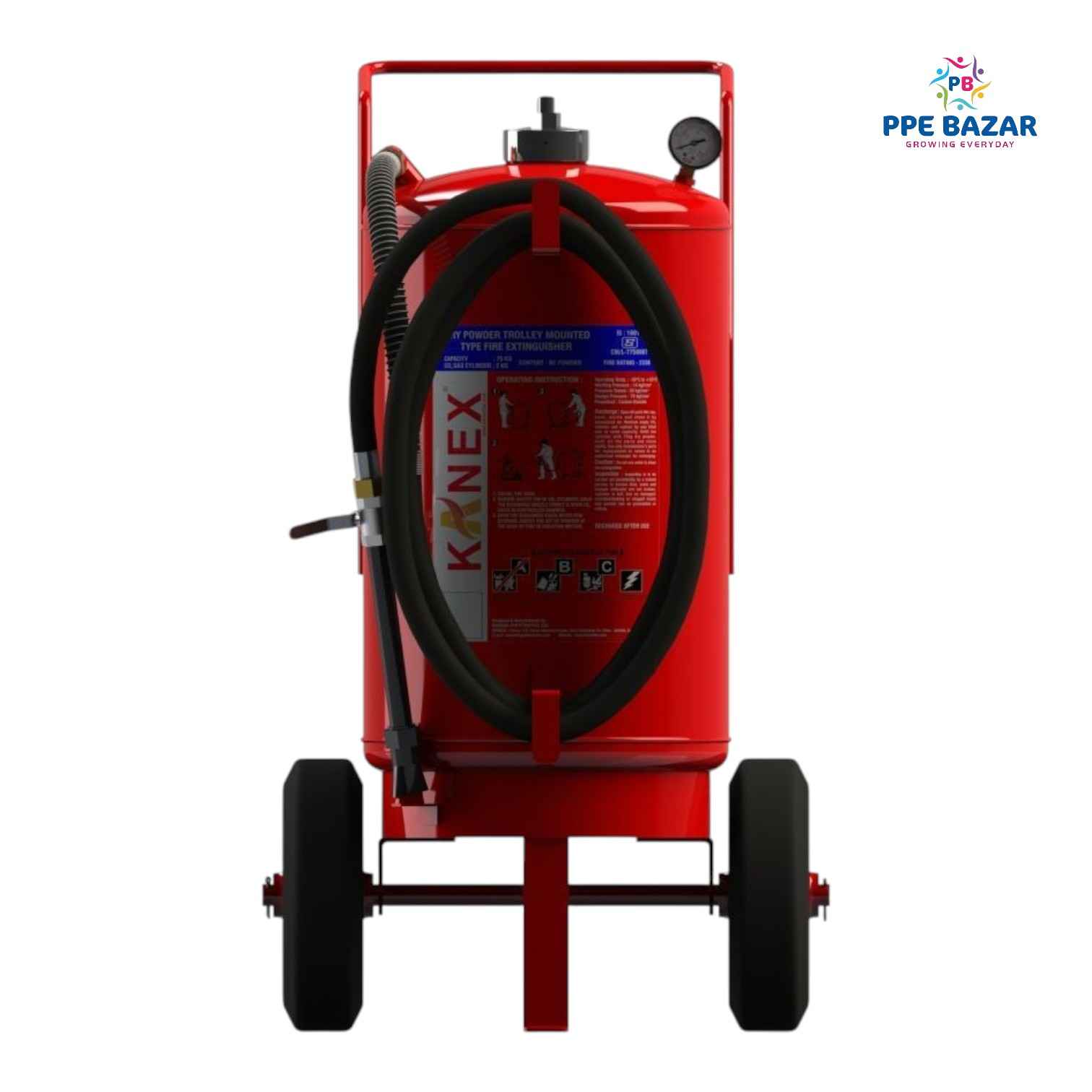

DCP Fire Extinguisher SBC Dry Powder With 233b Fire Rating - 75KG
₹36,799.70 + GST
DCP Fire Extinguisher SBC Dry Powder With 233b Fire Rating - 75KG
Engineered for extreme hazard environments, our 75KG Sodium Bicarbonate (SBC) dry chemical extinguisher delivers the ultimate 233B-rated protection against:
- Class B fires (flammable liquids: gasoline, oil, solvents)
- Class C fires (flammable gases: LPG, methane, hydrogen)
- Electrical fires (non-conductive suppression)
Military-Grade Construction & Components
✔ Ultra-High Capacity Load - 75KG IS 4308 compliant SBC powder
✔ Extended Operation - 51-second continuous discharge
✔ Long-Range Defense - 8-meter effective throw (93.5% discharge efficiency)
✔ Industrial Durability Features:
- 400mm heavy-gauge steel cylinder (3.5mm thickness)
- Triple-layer protection:
- Hydraulic pressure tested to 35 bar
- Anti-corrosive phosphate treatment
- UV-resistant pure polyester coating
✔ Premium Firefighting Components:
- Marine-grade brass fittings (IS:319 certified)
- Aircraft-grade aluminum nozzle (IS:617 compliant)
- Industrial PVC braided hose (burst-resistant)
✔ Certified Safety Standards:
- BIS Approved (IS 16018:2012)
- ISI Mark quality guarantee
Technical Specifications
| Parameter | Specification | |
|---|---|---|
| Model | KFDRQ-75-S | |
| Agent | 75kg SBC Powder | |
| Fire Rating | 233B (Liquid/Gas Fires) | |
| Discharge | 93.5% efficiency | 51 sec duration |
| Range | 8 meters projection | |
| Construction | 400mm diameter steel cylinder | |
| Pressure | 15 bar (working) / 18 bar (max) / 35 bar (test) | |
| Temperature | -30°C to +55°C operational range | |
| Weight | 150kg (operational) / 75kg (empty) | |
| Dimensions | 1030mm (H) × 400mm (Ø) |
Critical Application Environments
- Oil refineries and petrochemical plants
- Aircraft hangars and fuel depots
- Power plants and transformer yards
- Industrial paint spray booths
- Chemical storage facilities
Installation Note: Requires specialized wheeled trolley or fixed mounting system (152.5kg shipping weight). Includes heavy-duty wall bracket for permanent installations.
Maintenance Protocol: Quarterly inspections mandatory for high-risk environments. Full service every 6 months recommended.
