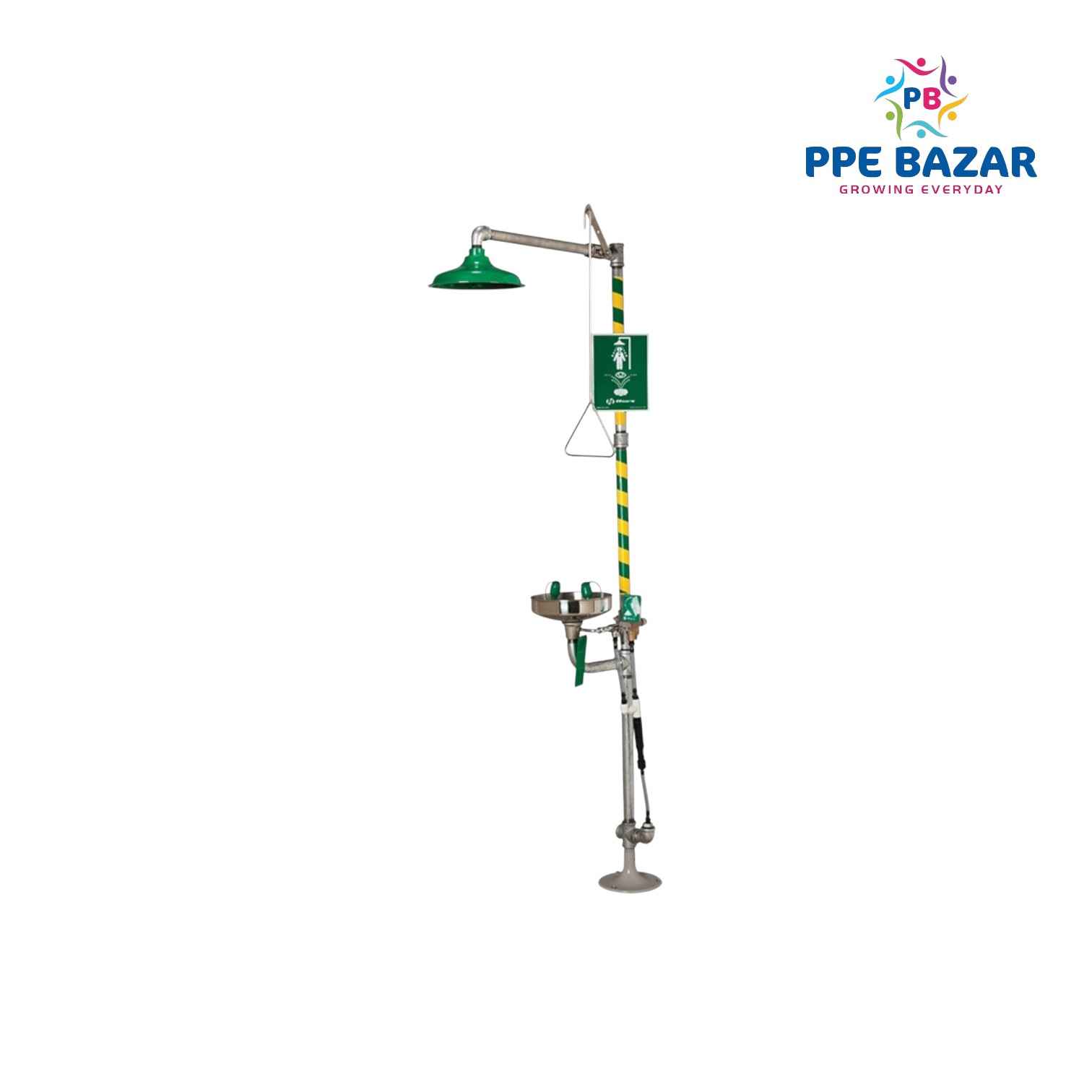

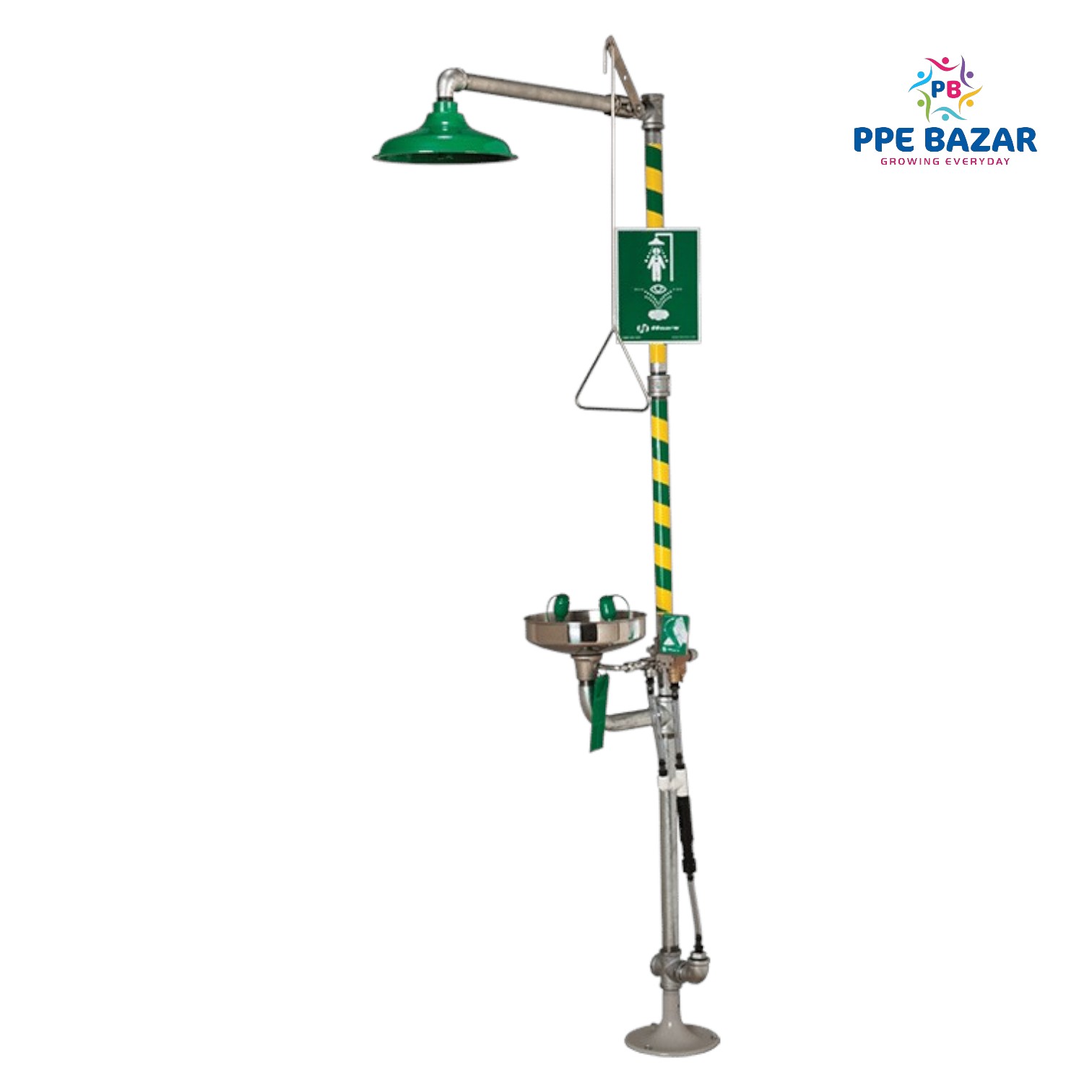

The Dand Eye Wash Shower Cum Body Washer is a complete emergency response station built for industrial applications where there’s a risk of exposure to hazardous chemicals or irritants. It features manual hand operation for both the eye wash and body shower functions, offering fast, easy activation in emergencies.
Constructed primarily from galvanized iron (GI) pipes with anti-corrosive powder coating, this full set is durable and engineered for performance in demanding environments. The eye wash bowl and shower head are made of ABS plastic, offering high resistance to corrosion and chemical exposure. The system is fitted with SS304 stainless steel valves, ABS plastic atomizers with brass nuts, and other reinforced GI and ABS components.
Technical Specifications:
| Component |
Specification |
| Pipe Material |
Galvanized Iron (GI), 1½” Dia, Powder Coated |
| Eye Wash Bowl |
ABS Plastic – Resistant to Acid, Alkali, Oil, etc. |
| Shower Head |
ABS Plastic – High-Impact, Chemically Resistant |
| Valves |
Stainless Steel 304 Grade Stay-Open Ball Valves |
| Atomizer Heads |
ABS Plastic with Brass Nut – Twin Soft-Flow |
| Pull Rod |
GI with Powder Coating – For Shower Activation |
| Bush Plate |
GI Plate with ABS Construction |
| Pop-Up Dust Cover |
ABS Plastic – Protects Eyewash Nozzles from Contamination |
| Base Flange |
GI Flange with Powder Coating |
| Mounting Type |
Floor Mounted |
| Water Inlet |
1½” BSP Standard |
| Flow Rate (Shower) |
Approx. 75–100 LPM at 30 PSI |
| Flow Rate (Eyewash) |
Approx. 12–15 LPM |
| Operation Method |
Hand Lever Pull Rod Operated |
| Design Compliance |
IS:10592 Approved |
Salient Features:
-
Full-body drenching and eyewash in one unit, ideal for emergency decontamination.
-
Hand-operated system with easy-access pull rod for shower activation and lever for eyewash.
-
Powder-coated GI construction for high corrosion resistance and long service life.
-
ABS and SS304 components ensure chemical resistance and reliability in tough environments.
-
Certified as per IS:10592, ensuring adherence to Indian safety standards.
-
Suitable for chemical industries, manufacturing units, refineries, workshops, and more.
