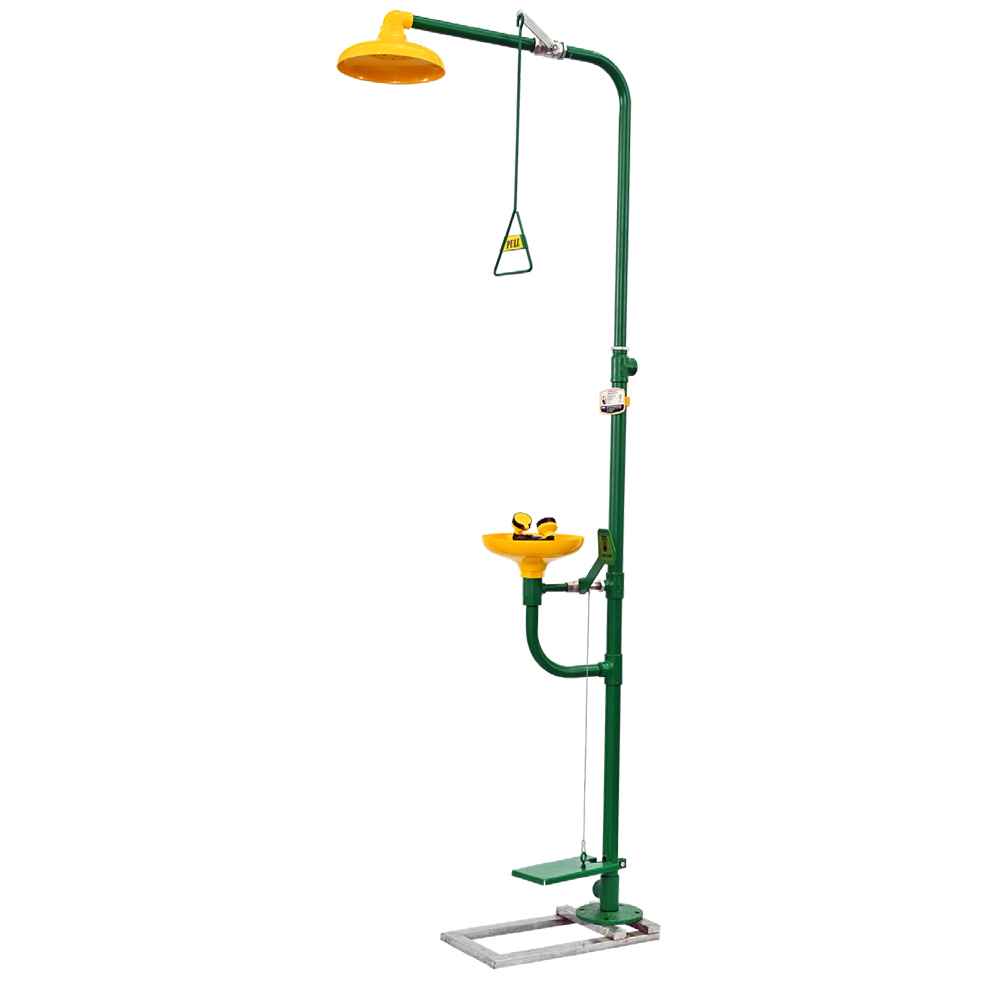

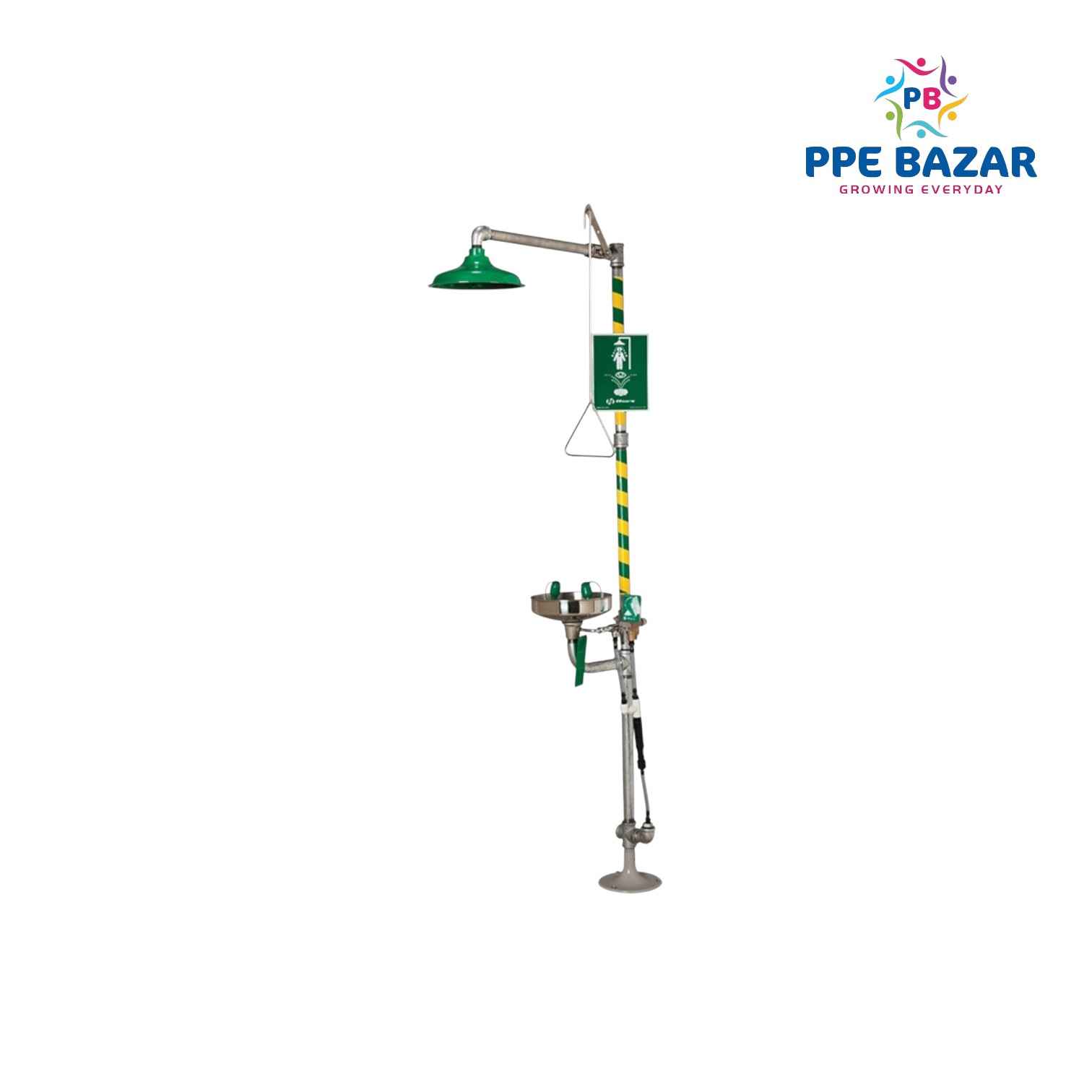

The Udyogi 6220 GI Safety Shower and Eyewash Station is a highly reliable and industrial-grade emergency response unit designed for fast and effective decontamination of personnel exposed to hazardous chemicals, dust, or irritants.
This model features independent hand operation, with a pull rod for the shower and a hand push lever for the eyewash station, enabling swift activation in emergency scenarios. Constructed using ISI-marked GI pipes coated with a corrosion-resistant epoxy powder, the unit is durable and built to withstand harsh industrial conditions.
The system is equipped with an extra-large yellow ABS shower head for full-body drenching and an ABS eyewash bowl that houses twin soft-flow automiser heads. These provide a gentle yet thorough eye and face rinse, while remaining resistant to acids, alkalis, oils, and other industrial contaminants.
Technical Specifications:
| Component |
Specification |
| Shower Head |
Extra-Large, High-Visibility Yellow ABS Plastic |
| Eyewash Bowl |
ABS Plastic – Resistant to Acids, Alkalis, and Oils |
| Eyewash Nozzles |
Twin Soft-Flow Automiser Heads with Dust Covers |
| Pipe Material |
ISI Marked Galvanized Iron (GI) with Epoxy Powder Coating |
| Valves |
Stainless Steel Stay-Open Ball Valve with ABS Push Plate |
| Shower Activation |
Pull Rod Operated |
| Eyewash Activation |
Hand Push Lever Operated |
| Mounting Type |
Floor Mounted |
| Water Inlet Connection |
1” BSP Standard (Customizable) |
| Flow Rate (Shower) |
75–100 LPM at 30 PSI |
| Flow Rate (Eyewash) |
12–15 LPM |
| Compliance Standards |
IS:10592 Certified, ANSI Z358.1 Compliant |
Salient Features:
-
Independent hand-operated system for both shower and eyewash ensures quick and simple usage.
-
Highly visible components for quick identification in emergency conditions.
-
ISI certification confirms compliance with Indian safety standards for emergency equipment.
-
Twin soft-flow nozzles provide uniform water flow, minimizing pressure on sensitive areas like eyes.
-
Ideal for chemical industries, refineries, laboratories, paint shops, and hazardous zones.
