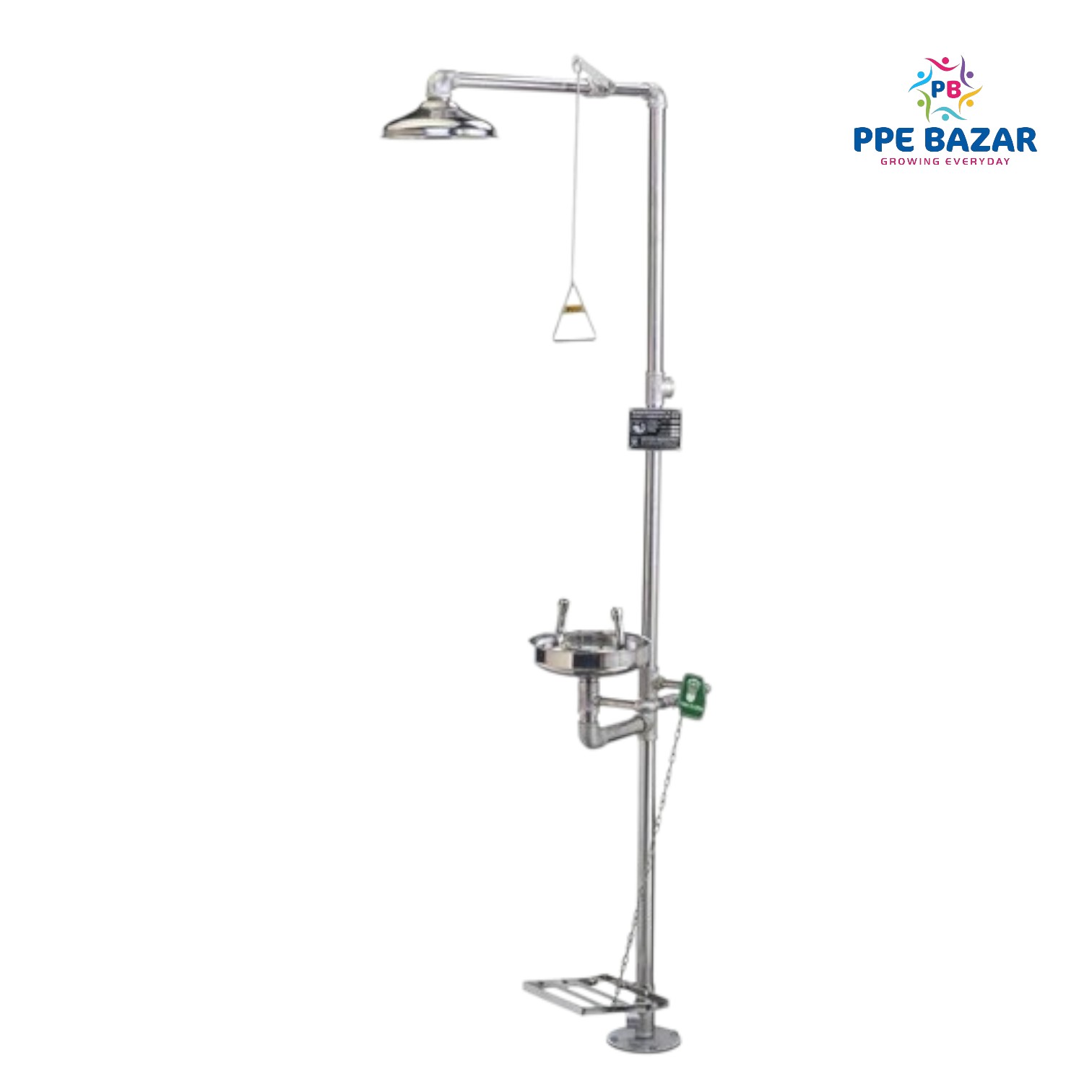

The Pedal and Pull Operated Safety Shower Cum Eye Wash - 6250SS(SW) is a combination emergency unit designed for industrial environments to provide immediate decontamination for workers exposed to hazardous substances. It integrates a foot pedal-operated eyewash/face wash unit and a push/pull rod-operated body shower, ensuring quick and reliable access to both eye and full-body flushing capabilities. Constructed from high-quality stainless steel (SS 304), this unit is corrosion-resistant, durable, and compliant with safety standards, specifically IS: 10592 marked and approved.

Description:

• Combination Unit: Features an eyewash/face wash station activated by a foot pedal and a drench shower operated by a push/pull rod, allowing simultaneous or independent operation based on the emergency.
• Material: Made entirely of SS 304 (stainless steel grade 304), ensuring resistance to corrosion, chemicals (acids, alkalis, oils), and harsh environmental conditions.
• Operation:
  • Eyewash/Face Wash: Activated by a SS foot pedal, providing hands-free operation for quick and easy access to flush eyes and face.
  • Body Shower: Operated by a SS push/pull rod, delivering a high-flow drench to rinse contaminants from the entire body.
• Design: Ergonomic and robust, with components designed for reliability, ease of use, and minimal maintenance.
• Standards Compliance: Meets IS: 10592:1982 (Indian Standard for emergency showers and eyewash equipment), ensuring performance and safety.

Specifications:

1. Piping:
   • Material: SS 304 pipes (Schedule 40), corrosion-resistant and durable for long-term use.
   • Water Inlet: 1-1/4 inches BSP (British Standard Pipe) for adequate water supply.
   • Drain: 1-1/4 inches BSP to efficiently channel wastewater.
2. Eyewash/Face Wash Unit:
   • Receptor Bowls: Made of SS 304, highly resistant to acids, alkalis, and oils. Designed to collect and drain water effectively.
   • Atomizer Unit: Twin SS 304 atomizer heads with aerators to control stream straightness and diameter, reducing splash and ensuring a soft, effective flow for eye and face flushing.
     • Features pop-off dust covers to protect nozzles from contaminants, automatically releasing with water pressure.
     • Flow Rate: Approximately 3.7 GPM (14 LPM) with integral flow control for consistent performance.
   • Activation: SS foot pedal for hands-free operation, ensuring ease of use during emergencies.
   • Valve: 1/2-inch SS ball valve, stay-open type, allowing continuous water flow until manually closed.
3. Safety Shower:
   • Shower Head Bowl: SS 304, extra-large (typically 8-inch diameter), designed for high water dispersion to cover the entire body.
     • Flow Rate: Minimum 20 GPM (75.7 LPM) at 30 PSI, meeting standard requirements for effective decontamination.
   • Activation: SS push/pull rod, connected to a 1-inch SS stay-open ball valve for immediate and sustained water flow.
   • Actuator Arm: SS 304, with a 29-inch SS pull rod for easy access and operation.
4. Valves:
   • SS Ball Valves:
     • 1-inch diameter for the shower, ensuring high water flow.
     • 1/2-inch diameter for the eyewash, providing controlled flow for delicate rinsing.
     • Stay-open design for continuous operation without holding the valve.
5. Additional Features:
   • SS Push and Pull Lever: Robust and corrosion-resistant, ensuring reliable shower activation.
   • SS Foot Pedal: Durable, anti-slip design for secure eyewash operation.
   • Marking and Approval: IS: 10592 marked and approved, guaranteeing compliance with Indian safety standards for emergency equipment.
6. Mounting:
   • Pedestal-mounted with a stable SS 304 base plate (typically 180 mm in diameter) for secure installation.
   • Suitable for indoor and outdoor industrial settings, such as chemical plants, laboratories, and manufacturing units.

Applications:

• Ideal for environments where workers are exposed to hazardous chemicals, including acids, alkalis, and other corrosive substances.
• Commonly used in industries like pharmaceuticals, petrochemicals, manufacturing, and laboratories to ensure compliance with workplace safety regulations.

Standards and Compliance:

• IS: 10592:1982: Specifies requirements for emergency showers and eyewash stations in India, ensuring the unit delivers adequate water flow and accessibility.
• Designed to align with international standards like ANSI Z358.1 (where applicable), emphasizing performance within the critical first 10-15 seconds of exposure to hazardous substances.
