The 6.8 Litre / 300 Bar Carbon Fiber Composite (CFK) SCBA Cylinder with Valve is a lightweight, high-strength breathing air cylinder designed for use with Self-Contained Breathing Apparatus (SCBA) in hazardous or oxygen-deficient environments.

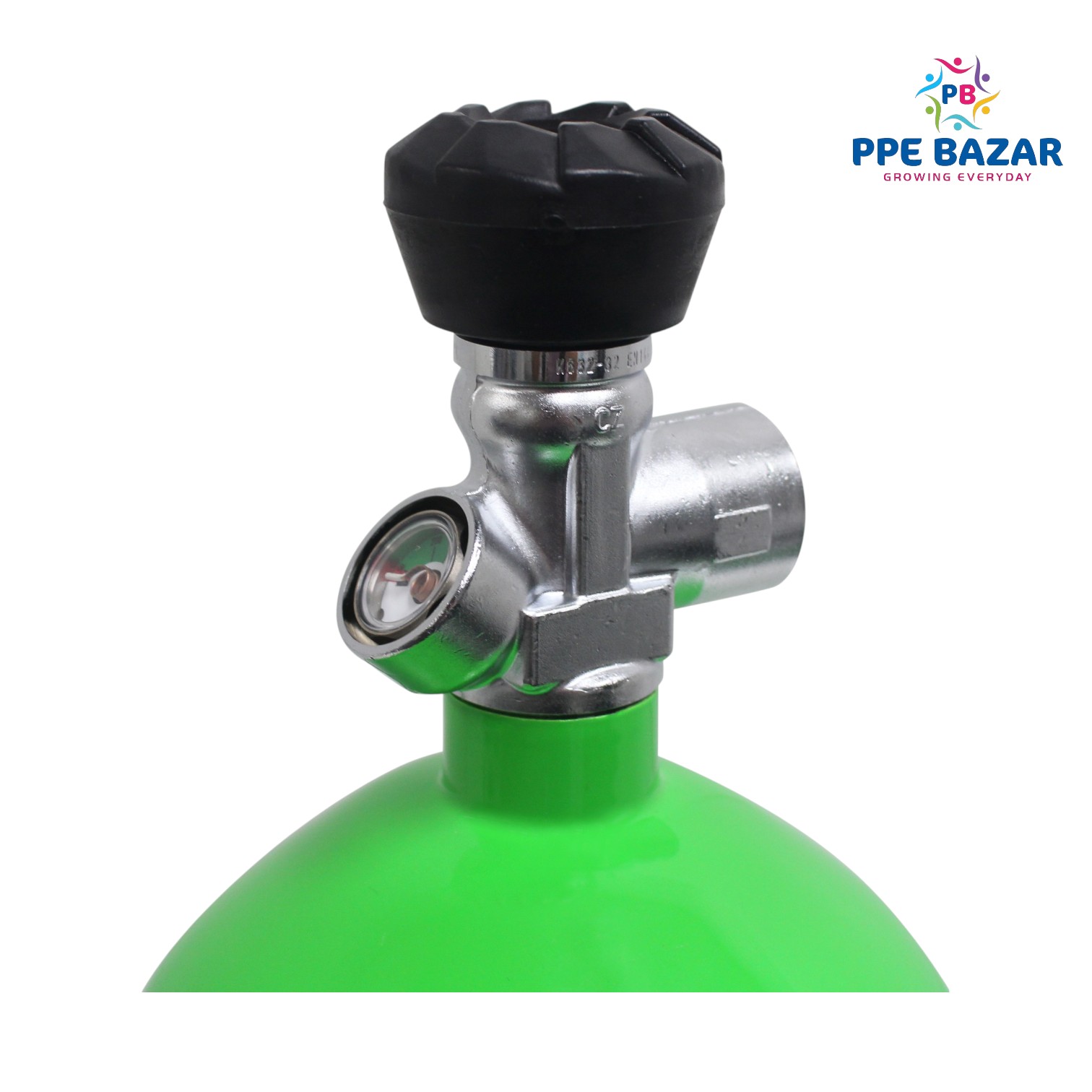

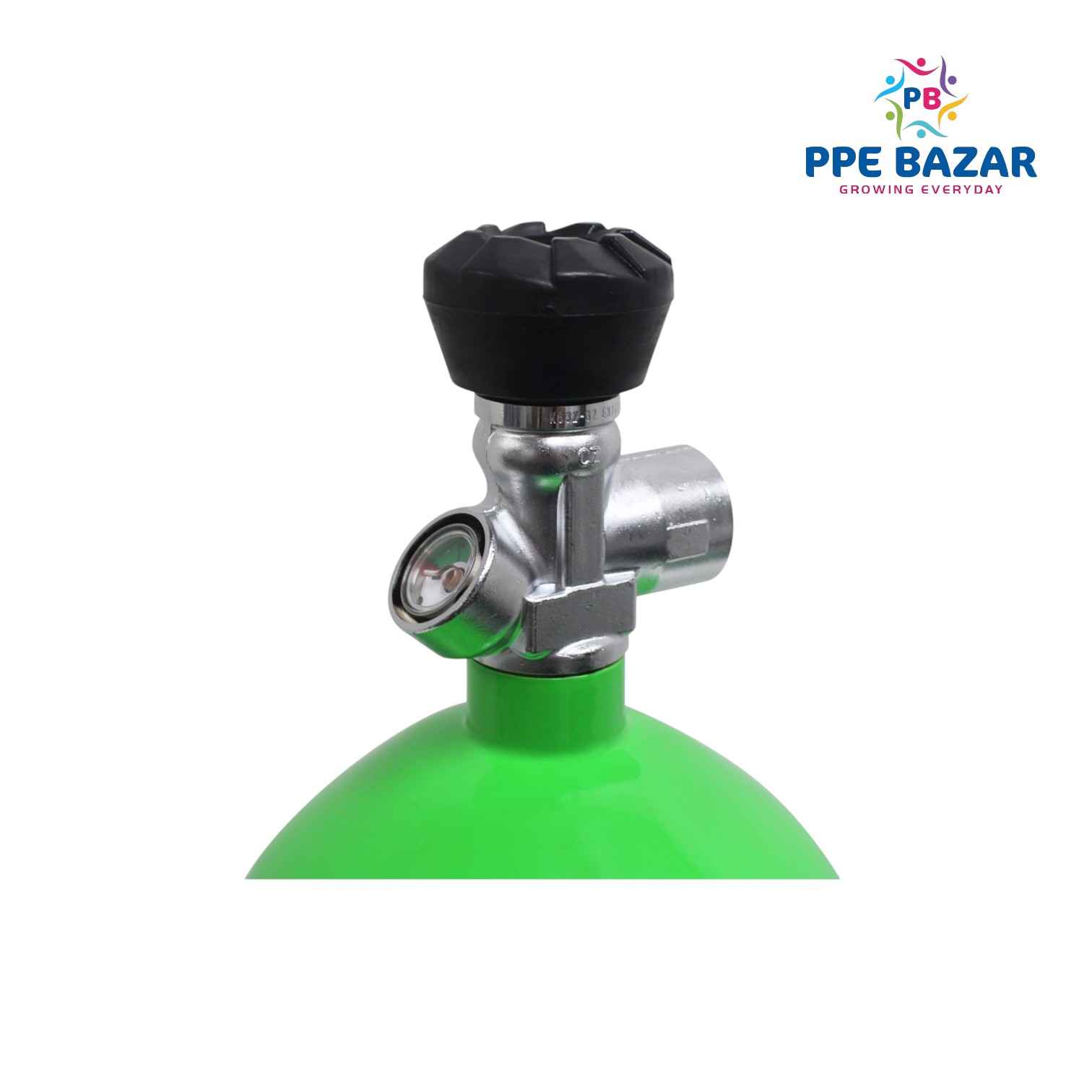

Constructed with a carbon fiber composite over aluminum liner, the cylinder offers superior strength-to-weight ratio, corrosion resistance, and extended service life. The unit comes equipped with a high-pressure cylinder valve—precision-engineered for safety, leak prevention, and compatibility with SCBA backplates or regulator systems.
It is ideal for use by firefighters, rescue teams, industrial workers, and emergency response personnel, offering approximately 45 minutes of breathable air, depending on usage and breathing rate.
Key Features:
-
Lightweight & Durable: CFK (Carbon Fiber Composite over Aluminum) construction
-
High Pressure: 300 Bar rated for long-duration air supply
-
Compact Design: 6.8-litre capacity balances air time and mobility
-
Factory-Fitted Valve: High-precision valve with safety and flow control features
-
Corrosion & Impact Resistant: Ideal for harsh environments
-
Extended Service Life: Low maintenance with long inspection intervals
-
Compliant: Meets international safety and certification standards
Technical Specifications:
| Specification |
Details |
| Cylinder Capacity |
6.8 Litres |
| Working Pressure |
300 Bar |
| Material |
Inner Liner – Aluminum Alloy; Outer Wrap – Carbon Fiber + Resin |
| Empty Cylinder Weight |
Approx. 3.8 – 4.2 kg |
| Full Cylinder Weight |
Approx. 5.5 – 6.0 kg |
| Valve Type |
SCBA-compatible high-pressure valve (handwheel or toggle) |
| Outlet Thread |
Standard G5/8" (or DIN, as per model) |
| Burst Disc |
Integrated for over-pressure protection |
| Duration (approx.) |
45 minutes (based on moderate breathing rate) |
| Operating Temperature |
-30°C to +60°C |
| Certification |
CE / EN 12245 / IS 7285 / PESO / DOT (based on model) |
| Applications |
Firefighting, Rescue, SCBA Sets, Confined Space Entry |
