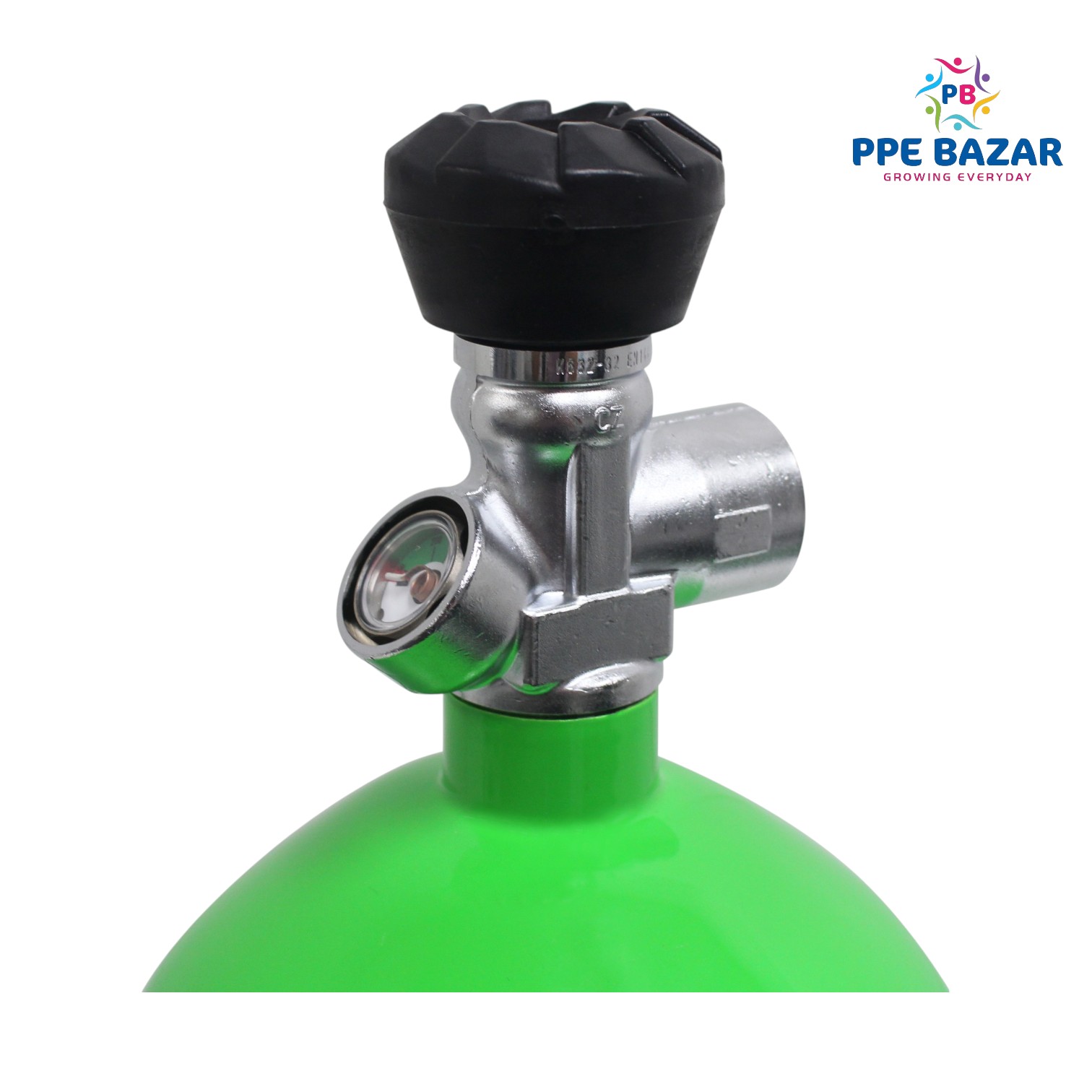

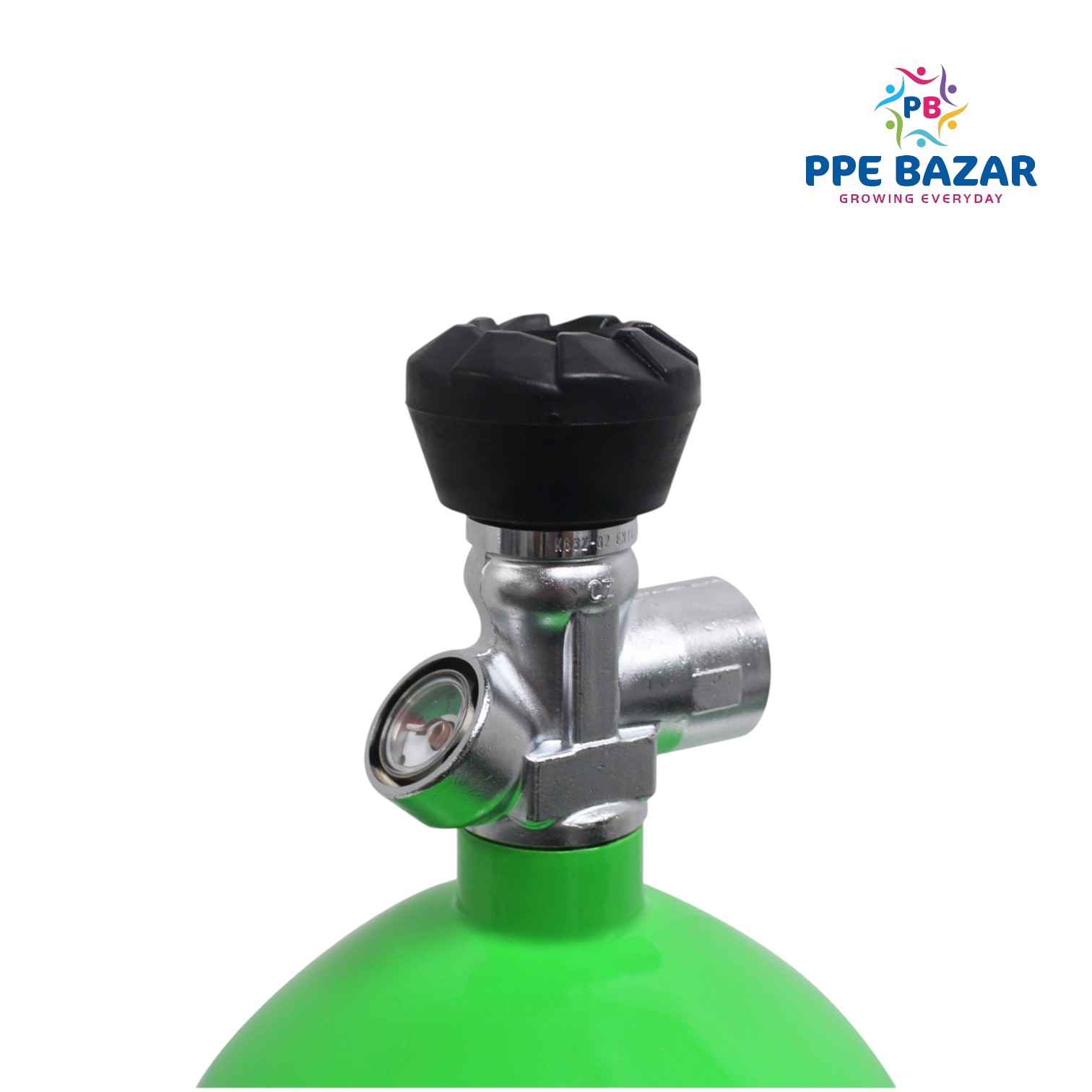

The Tekno Valve 200 Bar Cylinder Valve is a high-quality, PESO-approved valve designed for use with high-pressure gas cylinders in medical, industrial, and breathing air applications. Manufactured by Tekno Valves, a trusted name in precision valve engineering, this model ensures safe, reliable control over gas flow and pressure retention.
With an inlet thread of 18.16 mm (male) and an outlet of G5/8” BSP (female), it is suitable for use with oxygen, nitrogen, breathing air, and other compressed gases. The valve meets PESO standards under drawing no. TV/DR-1668/2008/S, and complies with the guidelines outlined in Annexure PU-9031.
Key Features:
-
PESO Approved: Certified for high-pressure cylinder use in India
-
Working Pressure: Rated for 200 Bar working pressure, tested up to 312 Bar
-
Standard Connections: Inlet 18.16 mm (M) and Outlet G5/8" BSP (F)
-
Robust Construction: Made with high-grade brass for corrosion resistance and durability
-
Leak-proof Design: Precision machining and sealing ensure zero leakage
-
Easy Operation: Smooth spindle movement with ergonomic handwheel or key type (as per model)
-
Wide Compatibility: Suitable for cylinders used in medical, industrial, and SCBA systems
Technical Specifications:
| Specification |
Details |
| Manufacturer |
Tekno Valves |
| Model Drawing No. |
TV/DR-1668/2008/S |
| Working Pressure (WP) |
200 Bar |
| Test Pressure (TP) |
312 Bar |
| Inlet Connection |
18.16 mm (Male) |
| Outlet Connection |
G5/8” BSP (Female) |
| Body Material |
Forged Brass (Nickel Plated or Natural Finish) |
| Operation Type |
Handwheel or Key Operated (as per configuration) |
| Approval |
PESO Approved – as per Annexure PU-9031 |
| Applicable Gases |
Oxygen, Compressed Air, Nitrogen, etc. |
| Temperature Range |
-20°C to +60°C |
| Application |
High-pressure gas cylinders – medical, SCBA, industrial use |
