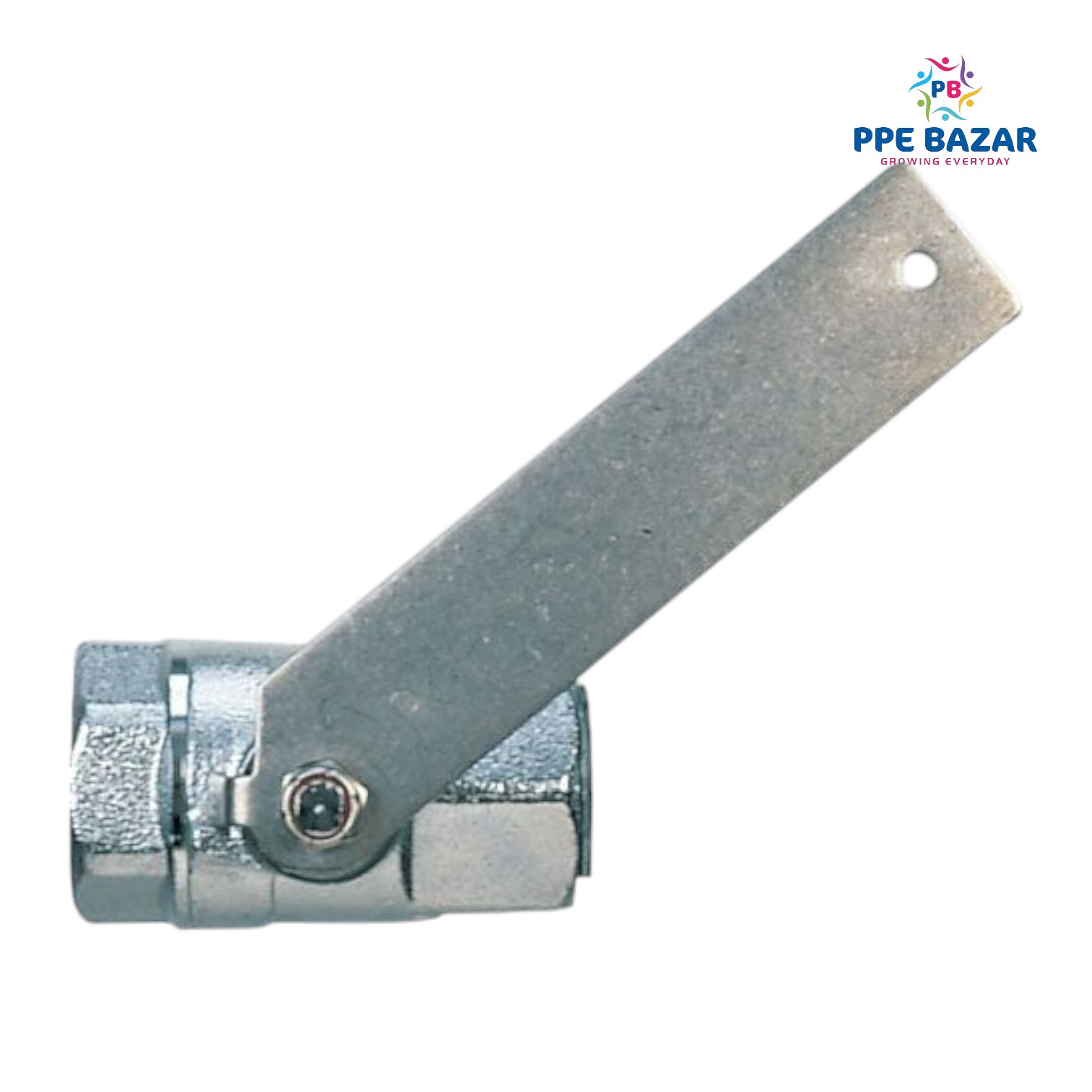

Stainless Steel 304 Body Ball Valve Safety Shower, Size: 1" with Galvanized Iron Handle

0
0 Reviews 0 Orders 0 Wish listed

₹1,814.56 + GST

MRP ₹2,062.00 12 % Off

This Stainless Steel 304 Body Ball Valve is a high-performance, corrosion-resistant valve specially designed for use in emergency safety shower systems. With a 1-inch nominal bore, it provides a reliable, high-flow outlet, crucial for effective and immediate drenching in hazardous environments. The valve features a Galvanized Iron (GI) lever handle, ensuring ease of manual operation even under emergency conditions.

The SS 304 stainless steel body offers excellent resistance to corrosion, chemical exposure, and mechanical wear, making it suitable for use in chemical plants, pharmaceutical units, factories, refineries, and laboratories. The valve is of stay-open type, meaning it remains open once activated, ensuring uninterrupted water flow until manually shut off.


Technical Specifications:

Feature Specification
Valve Type Ball Valve, Stay-Open Type
Body Material Stainless Steel 304 (SS 304)
Handle Material Galvanized Iron (GI) – Lever Type
Size 1 Inch (25 mm)
Operation Manual Lever – Quarter Turn
Connection Type Female BSP Threaded Ends (Can be customized)
Pressure Rating Suitable for standard safety shower operating pressure (typically up to 10 bar)
Flow Capacity Designed for high flow – up to 100 LPM or more
Temperature Resistance Up to 180°C
Finish Polished / Machined
Compliance Compatible with IS:10592 and ANSI Z358.1 Shower System Designs

Salient Features:

  • Quick and easy manual activation for emergency shower systems.

  • Stay-open mechanism ensures continuous flow until manually closed.

  • SS 304 stainless steel body provides excellent resistance to rust, corrosion, and chemicals.

  • Durable GI handle with strong grip and wear resistance.

  • Designed for long service life with minimal maintenance.
