Transportation Areas (parking garages, vehicle maintenance)
Storage Facilities (warehouses, material handling)
Electrical Installations (equipment rooms, server rooms)
Construction Sites and Repair Shops
Premium Safety Features
✔ Multi-Class Fire Suppression - Effective on Class A (solids), B (liquids), C (gases), and electrical fires ✔ Advanced Pressure Monitoring - Unique Gauge Testing System (UGTS) for reliable performance ✔ Heavy-Duty Construction - Brass chrome-plated valve with corrosion-resistant phosphate treatment ✔ Dual-Layer Protection - Internal epoxy-polyester + external pure polyester powder coating ✔ Enhanced Safety Components:
Crack-resistant EPDM hose
Tamper-evident security seal
Large stainless steel pull pin
Ergonomic lever lock mechanism
Barcode tracking system
Technical Specifications
Parameter
Specification
Capacity
6 kg MAP 50% dry chemical powder
Fire Rating
4A:144B (Industrial Strength)
Discharge
24 seconds continuous operation
Effective Range
5 meter throw distance
Discharge Efficiency
95% powder utilization
Operating Temp Range
-30°C to +60°C (-22°F to 140°F)
Pressure Ratings
Service: 15 bar / Max: 18 bar / Test: 35 bar
Dimensions
530mm (H) × 150±10mm (Diameter)
Weight
Empty: 2.9 kg / Charged: 8.9 kg
Shipping Weight
9.2 kg (including packaging)
Packaging & Mounting
Packaging Configuration: 2 units per carton (21"×6.75"×14.10")
Included Accessories: Heavy-duty wall mounting bracket
Shipping Protection: Reinforced corrugated packaging with impact-resistant design
Certifications & Compliance
BIS Approved (IS 15683:2006)
ISI Marked for quality assurance
Industrial Safety Standards compliant
Why Choose This Extinguisher?
✅ Highest Fire Rating in its class (4A:144B) ✅ Extended 24-second discharge time for maximum protection ✅ 5-meter effective range for safe operation ✅ Low-maintenance design with easy recharge capability ✅ Industrial-grade components for reliable performance in harsh conditions
Product Details

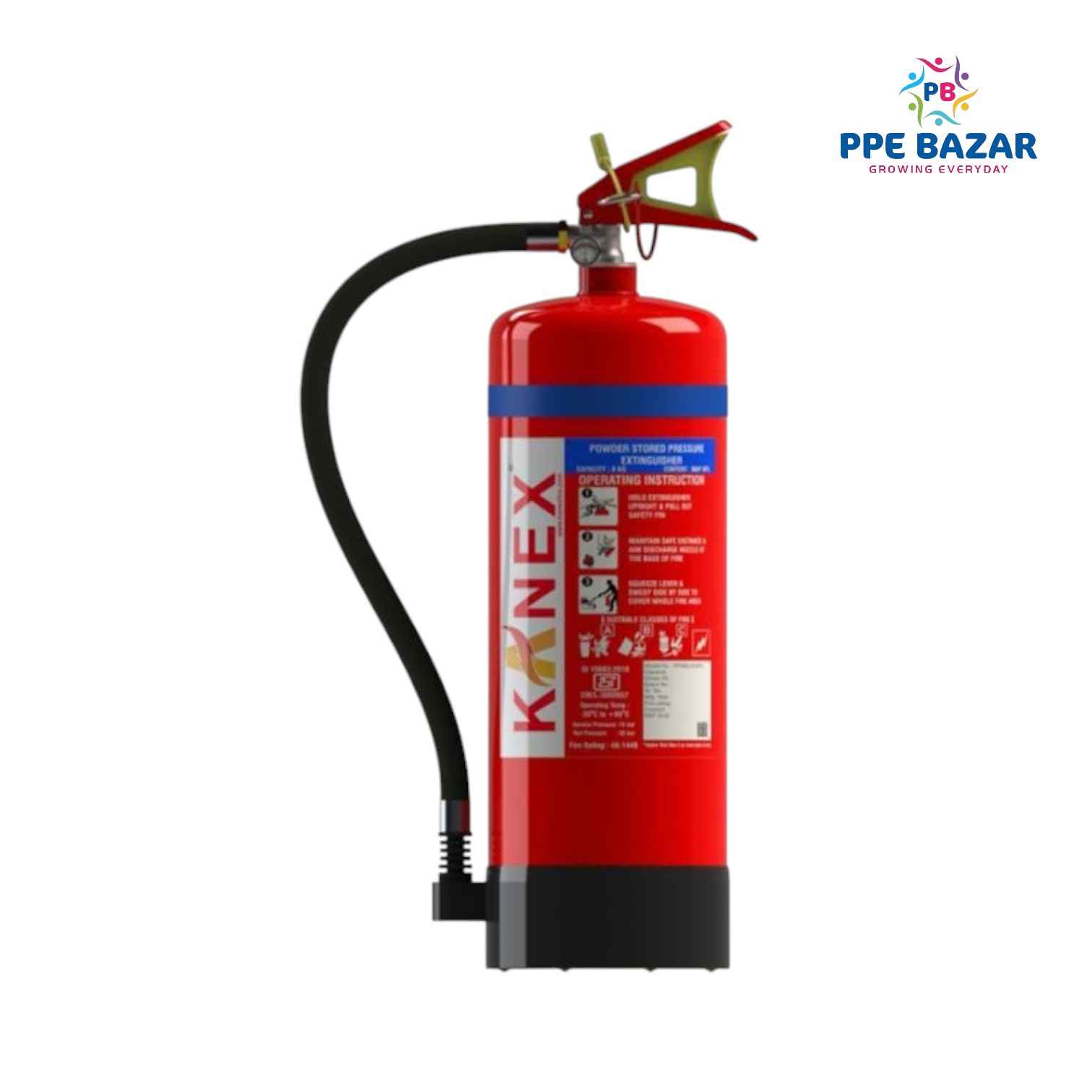

Model: KFARQ-6-50% | BIS Certified (IS 15683:2006) | ISI Marked
Industrial-Grade Fire Protection for Multiple Hazard Areas
Transportation Areas (parking garages, vehicle maintenance)
Storage Facilities (warehouses, material handling)
Electrical Installations (equipment rooms, server rooms)
Construction Sites and Repair Shops
Premium Safety Features
✔ Multi-Class Fire Suppression - Effective on Class A (solids), B (liquids), C (gases), and electrical fires ✔ Advanced Pressure Monitoring - Unique Gauge Testing System (UGTS) for reliable performance ✔ Heavy-Duty Construction - Brass chrome-plated valve with corrosion-resistant phosphate treatment ✔ Dual-Layer Protection - Internal epoxy-polyester + external pure polyester powder coating ✔ Enhanced Safety Components:
Crack-resistant EPDM hose
Tamper-evident security seal
Large stainless steel pull pin
Ergonomic lever lock mechanism
Barcode tracking system
Technical Specifications
Parameter
Specification
Capacity
6 kg MAP 50% dry chemical powder
Fire Rating
4A:144B (Industrial Strength)
Discharge
24 seconds continuous operation
Effective Range
5 meter throw distance
Discharge Efficiency
95% powder utilization
Operating Temp Range
-30°C to +60°C (-22°F to 140°F)
Pressure Ratings
Service: 15 bar / Max: 18 bar / Test: 35 bar
Dimensions
530mm (H) × 150±10mm (Diameter)
Weight
Empty: 2.9 kg / Charged: 8.9 kg
Shipping Weight
9.2 kg (including packaging)
Packaging & Mounting
Packaging Configuration: 2 units per carton (21"×6.75"×14.10")
Included Accessories: Heavy-duty wall mounting bracket
Shipping Protection: Reinforced corrugated packaging with impact-resistant design
Certifications & Compliance
BIS Approved (IS 15683:2006)
ISI Marked for quality assurance
Industrial Safety Standards compliant
Why Choose This Extinguisher?
✅ Highest Fire Rating in its class (4A:144B) ✅ Extended 24-second discharge time for maximum protection ✅ 5-meter effective range for safe operation ✅ Low-maintenance design with easy recharge capability ✅ Industrial-grade components for reliable performance in harsh conditions
