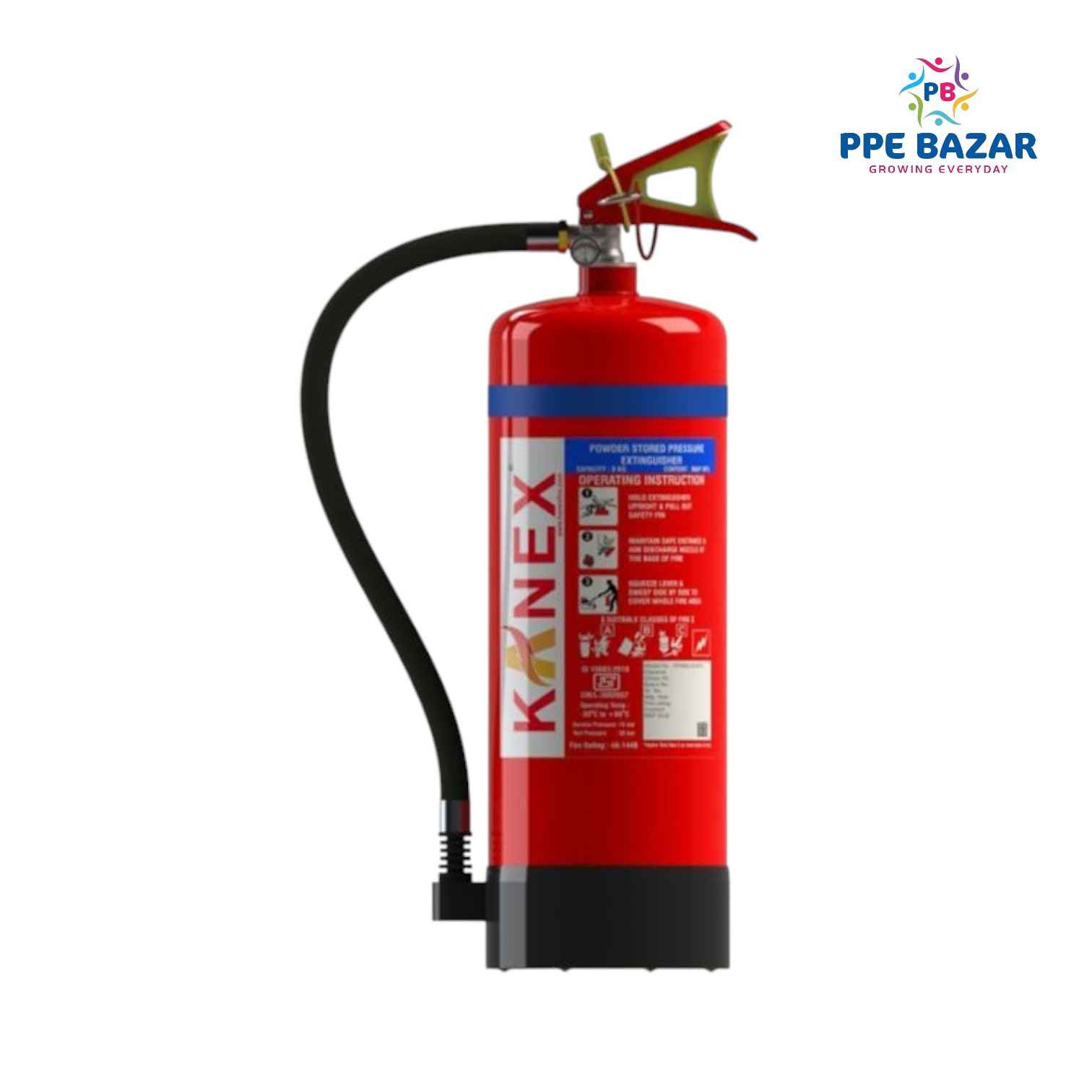

ABC Fire Extinguisher MAP-90% Dry Powder With - 6A:233B Fire Rating- 9KG
0
0 Reviews0 Orders 0 Wish listed
₹7,160.30 + GST
MRP ₹10,229.0030 % Off
Our premium 9KG ABC fire extinguisher delivers exceptional 6A:233B rated performance, making it ideal for industrial facilities, warehouses, and high-risk commercial spaces. The 90% Monoammonium Phosphate (MAP) formulation provides rapid knockdown of Class A, B, C, and electrical fires with superior flame suppression capabilities.
Advanced Safety Features: • High-performance MAP compound - Effective on multiple fire types including flammable liquids, gases, and electrical equipment • Industrial-strength construction - Features dual-layer corrosion protection with internal epoxy-polyester and external polyester coating • Precision-engineered components - Brass chrome-plated valve ensures reliable operation in emergencies • Enhanced safety mechanisms - Tamper-evident seal and barcode tracking for quality control
Technical Specifications
Parameter
Details
Model Number
KFDRQ-9-90%
Extinguishing Agent
9kg MAP-90% Dry Powder
Fire Classification
6A:233B (Solids/Liquids/Gases)
Discharge Characteristics
30 second duration
5 meter effective range
Construction
1.5mm steel cylinder with phosphate anti-corrosion treatment
Operating Pressure
15 bar working / 17 bar maximum
Temperature Range
-30°C to +60°C operational capability
Activation System
200gm CO₂ cartridge (IS 4947 compliant)
Physical Dimensions
585mm height × 180mm diameter
Weight Specifications
15.3kg (charged)
6.3kg (empty)
Mounting & Packaging
Includes wall bracket
Ships 2 units per carton (24.5"×15.3"×8")
Certified Protection ✓ BIS Approved (IS 15683:2006) ✓ ISI Mark Certified ✓ Quality Assurance: Each unit features unique barcode identification
Ideal Applications:
Manufacturing plants and industrial facilities
Power stations and electrical rooms
Chemical storage areas
Vehicle maintenance workshops
Large commercial complexes
Product Details
Our premium 9KG ABC fire extinguisher delivers exceptional 6A:233B rated performance, making it ideal for industrial facilities, warehouses, and high-risk commercial spaces. The 90% Monoammonium Phosphate (MAP) formulation provides rapid knockdown of Class A, B, C, and electrical fires with superior flame suppression capabilities.
Advanced Safety Features: • High-performance MAP compound - Effective on multiple fire types including flammable liquids, gases, and electrical equipment • Industrial-strength construction - Features dual-layer corrosion protection with internal epoxy-polyester and external polyester coating • Precision-engineered components - Brass chrome-plated valve ensures reliable operation in emergencies • Enhanced safety mechanisms - Tamper-evident seal and barcode tracking for quality control
Technical Specifications
Parameter
Details
Model Number
KFDRQ-9-90%
Extinguishing Agent
9kg MAP-90% Dry Powder
Fire Classification
6A:233B (Solids/Liquids/Gases)
Discharge Characteristics
30 second duration
5 meter effective range
Construction
1.5mm steel cylinder with phosphate anti-corrosion treatment
Operating Pressure
15 bar working / 17 bar maximum
Temperature Range
-30°C to +60°C operational capability
Activation System
200gm CO₂ cartridge (IS 4947 compliant)
Physical Dimensions
585mm height × 180mm diameter
Weight Specifications
15.3kg (charged)
6.3kg (empty)
Mounting & Packaging
Includes wall bracket
Ships 2 units per carton (24.5"×15.3"×8")
Certified Protection ✓ BIS Approved (IS 15683:2006) ✓ ISI Mark Certified ✓ Quality Assurance: Each unit features unique barcode identification
