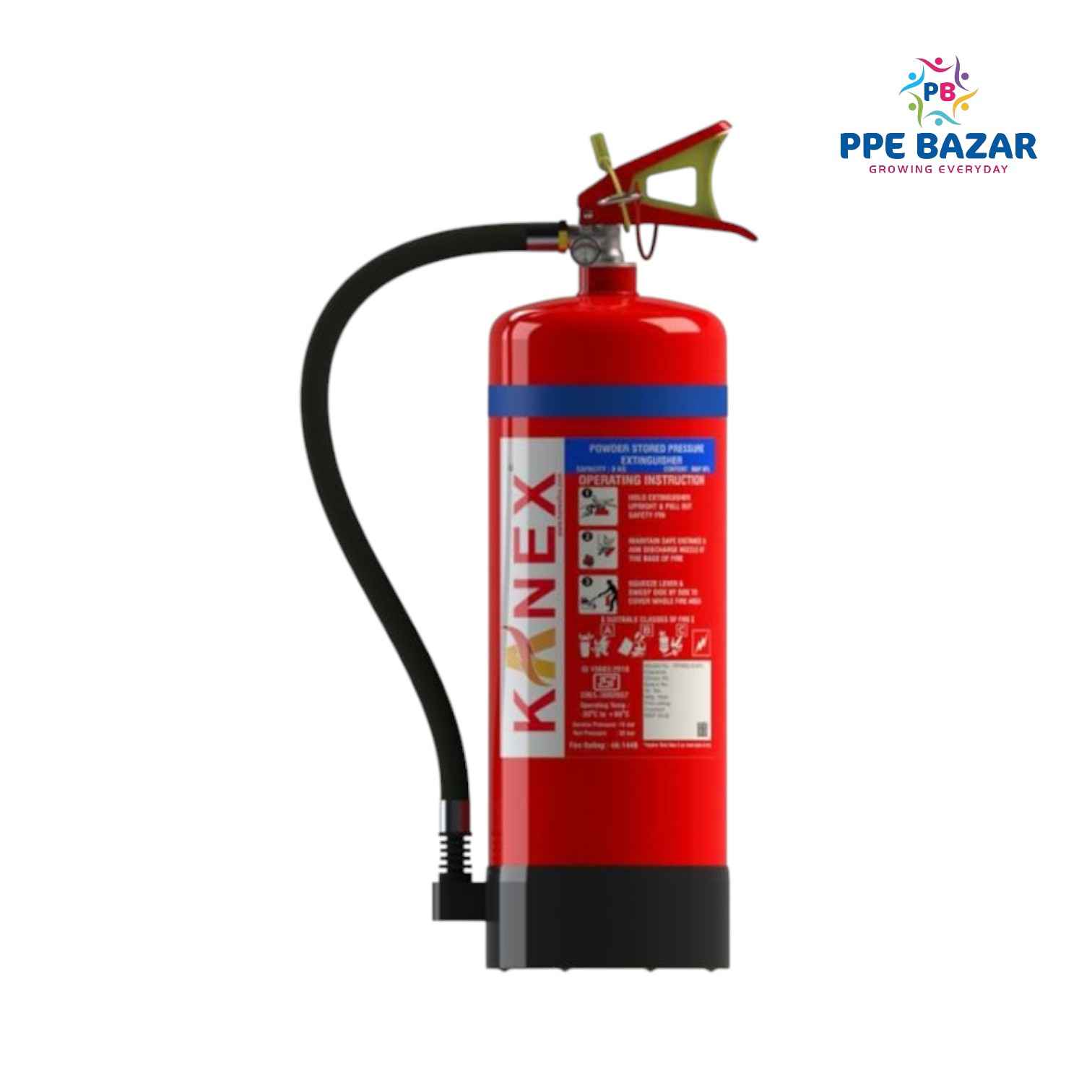

Industrial-Grade Fire Protection for Multiple Hazard Areas

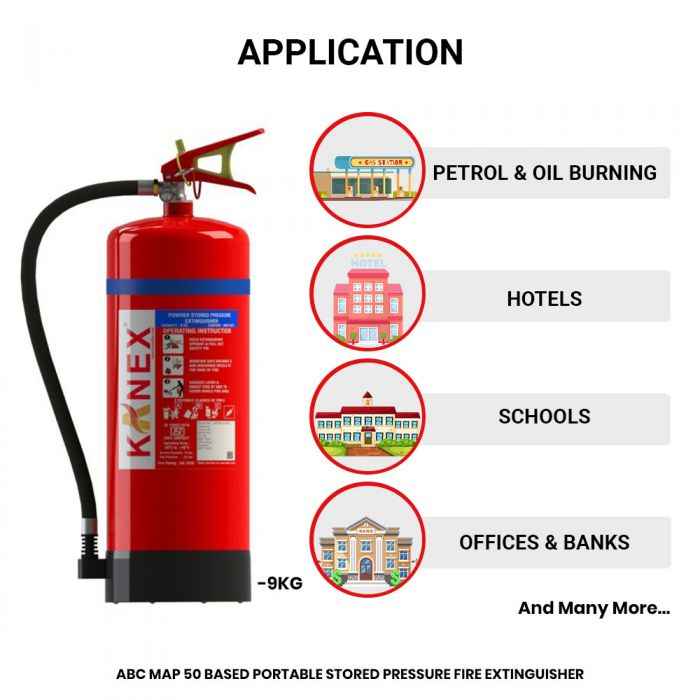

Ideal for:

• Industrial Facilities (manufacturing, machining, welding)
• Energy Sector (gas stations, fuel storage, propane filling)
• Commercial Spaces (hotels, restaurants, offices, banks)
• Institutional Buildings (schools, hospitals, government)
• Transportation Areas (parking garages, vehicle maintenance)
• Storage Facilities (warehouses, material handling)
• Electrical Installations (equipment rooms, server rooms)
• Construction Sites and Repair Shops

Premium Safety Features

✔ Multi-Class Fire Suppression - Effective on Class A (solids), B (liquids), C (gases), and electrical fires
✔ Advanced Pressure Monitoring - Unique Gauge Testing System (UGTS) for reliable performance
✔ Heavy-Duty Construction - Brass chrome-plated valve with corrosion-resistant phosphate treatment
✔ Dual-Layer Protection - Internal epoxy-polyester + external pure polyester powder coating

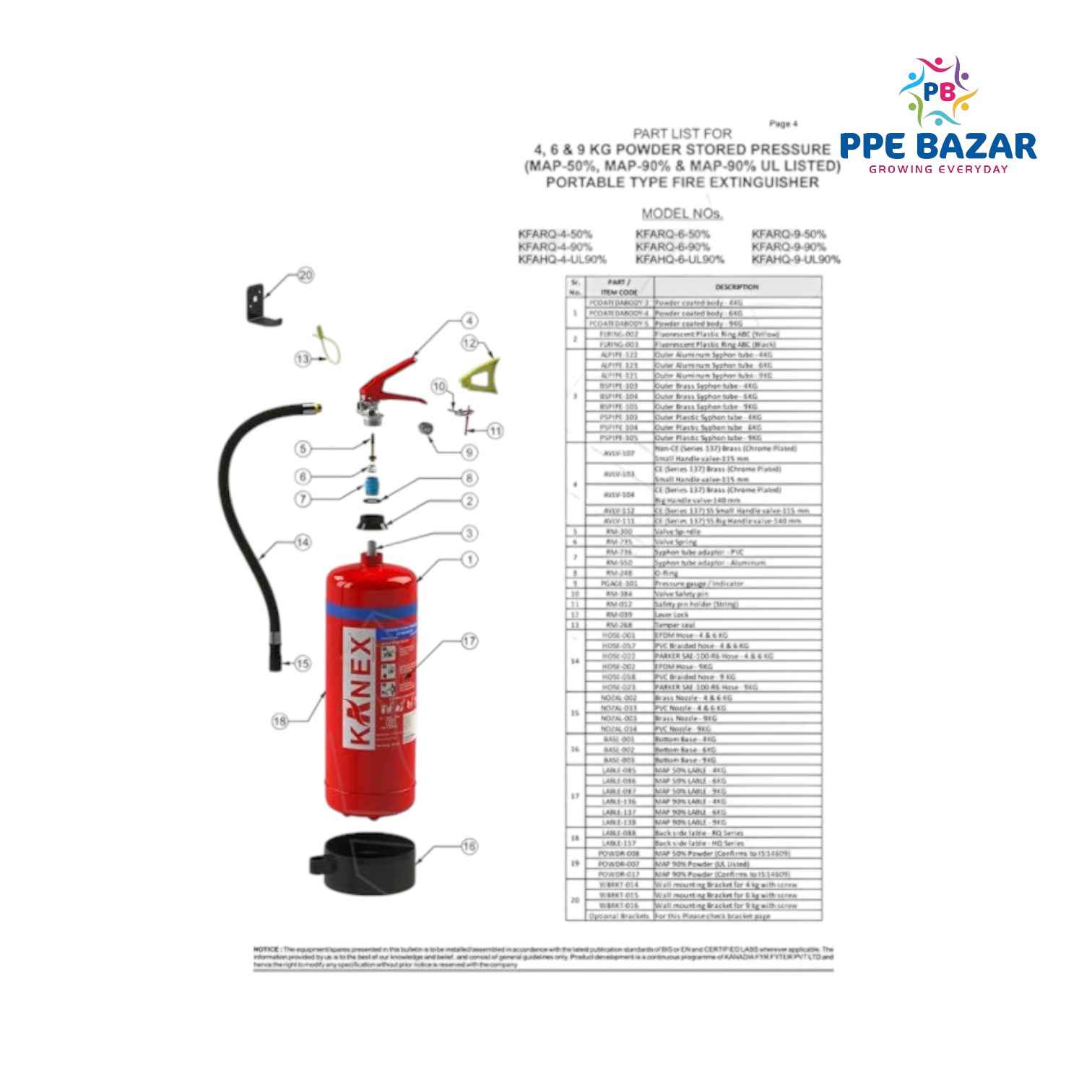

✔ Enhanced Safety Components:

• Crack-resistant EPDM hose
• Tamper-evident security seal
• Large stainless steel pull pin
• Ergonomic lever lock mechanism
• Barcode tracking system

• Model: KFARQ-6-50%-1 | BIS Certified (IS 15683:2006) | ISI Marked

  Technical Specifications

  Category	Specification
  Model Number	KFARQ-6-50%-1
  Extinguishing Agent	Monoammonium Phosphate (MAP 50%)
  Capacity	9 kg Dry Chemical Powder
  Fire Rating	6A:183B (Heavy-Duty Protection)
  Discharge System	Hose & Nozzle Configuration
  Physical Dimensions	Height: 575 mm / Diameter: 180±10 mm
  Discharge Duration	31 Seconds Continuous Operation
  Effective Range	6 Meter Projection
  Discharge Efficiency	95% Powder Utilization
  Temperature Range	-30°C to +60°C Operational
  Pressure Ratings	Service: 15 bar / Max: 18 bar / Test: 35 bar
  Propellant Gas	Nitrogen (Ultra High Purity Grade)
  Weight Specifications	Empty: 4.3 kg / Charged: 13.3 kg / Shipping: 13.6 kg
  Packaging	Single Unit: 24.5"×8.0"×8.0" (622×203×203 mm)
  Mounting	Heavy-Duty Wall Bracket Included
  Certifications	BIS Approved (IS 15683:2006)
