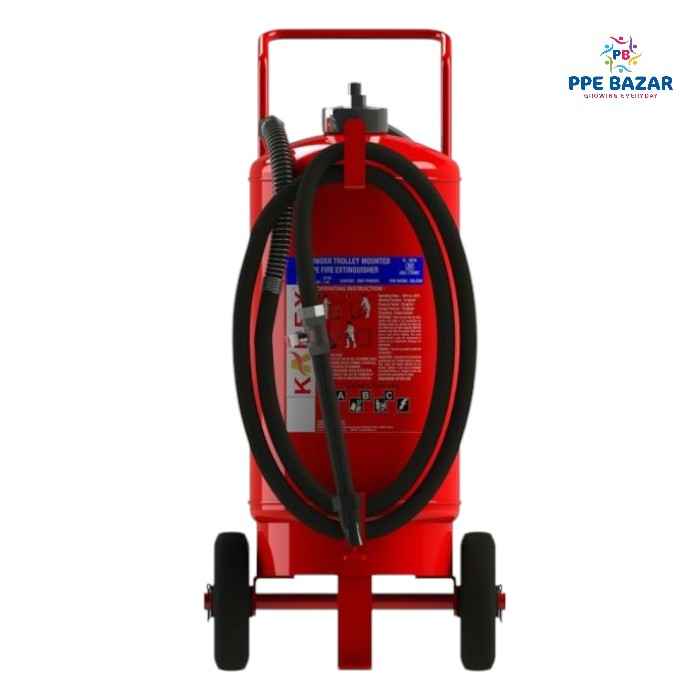

ABC Fire Extinguisher (Map 50 Based Mobile) 20A:233B Fire Rating
0
0 Reviews0 Orders 0 Wish listed
₹34,320.30 + GST
MRP ₹49,029.0030 % Off
The ABC Fire Extinguisher (MAP 50% Based, Mobile Type) – 50 kg is a high-performance, wheeled fire extinguisher built to tackle large-scale Class A (ordinary combustibles), Class B (flammable liquids), and Class C (flammable gases) fires, along with electrically started fires. With a superior fire rating of 20A:233B, it delivers outstanding fire suppression capability in critical high-risk zones.
Designed in accordance with IS 16018:2012 and filled with Mono Ammonium Phosphate (MAP 50%) powder per IS 14609, this extinguisher provides a powerful, safe, and controlled discharge. Its robust construction and mobility make it ideal for industrial, commercial, and hazardous environments requiring reliable fire protection.
Application Areas
Petrol & Oil Handling Facilities
Office Buildings & Corporate Spaces
Light Manufacturing Units & Workshops
Machining & Welding Stations
Warehouses & Logistics Centers
Gas & Fueling Stations (LPG, CNG, Diesel)
Hotels, Restaurants, and Hospitality Sectors
Paint Booths & Processing Units
Schools, Colleges, and Institutions
Public & Private Parking Garages
Material Handling Equipment Areas
Vehicle Maintenance Bays
Construction Sites & Infrastructure Projects
Propane Storage and Filling Stations
Auto Repair Shops & Service Centers
Electrical & Server Rooms
Key Features
✅ IS 16018:2012 Compliant: Meets all relevant safety and performance standards.
✅ BIS Approved & ISI Marked: Assures quality, safety, and regulatory compliance.
✅ UV-Resistant Polyester Coating: Pure polyester powder coating provides high weather and impact resistance.
✅ High-Quality Fittings: Brass caps, drain plugs, and ball valves conform to IS:319; aluminum alloy nozzle conforms to IS:617.
✅ Controlled Discharge Mechanism: User-friendly control for precision firefighting.
✅ Durable PVC Braided Hose: For enhanced flexibility and resistance to wear and tear.
✅ MAP 50% Powder Agent: Effective against Class A, B, C, and electrical fires, conforming to IS 14609.
✅ Easy Servicing: Simple to recharge, maintain, and transport.
✅ Heavy-Duty Mobility: Sturdy wheels for quick access and movement in emergencies.
Technical Specifications
Parameter
Value
Model
KFDRQ-50-50%
Capacity
50 kg
Fire Rating
20A:233B
Design
Hose & Nozzle
Height (Approx.)
1020 mm
Diameter (Approx.)
400 ±10 mm
Average Discharge Time
40 seconds
Average Range of Throw
7.5 meters
Average Discharge Efficiency
92.5%
Operating Temperature
-30°C to +55°C
Service / Max. Service / Test Pressure
15 / 18 / 35 bar
Expelling Agent
CO₂
Full Weight (Approx.)
120 kg
Empty Weight (Approx.)
70 kg
Shipping Weight (Approx.)
122 kg
Packing Standard
1 unit per box
Approvals
BIS
Product Details
The ABC Fire Extinguisher (MAP 50% Based, Mobile Type) – 50 kg is a high-performance, wheeled fire extinguisher built to tackle large-scale Class A (ordinary combustibles), Class B (flammable liquids), and Class C (flammable gases) fires, along with electrically started fires. With a superior fire rating of 20A:233B, it delivers outstanding fire suppression capability in critical high-risk zones.
Designed in accordance with IS 16018:2012 and filled with Mono Ammonium Phosphate (MAP 50%) powder per IS 14609, this extinguisher provides a powerful, safe, and controlled discharge. Its robust construction and mobility make it ideal for industrial, commercial, and hazardous environments requiring reliable fire protection.
