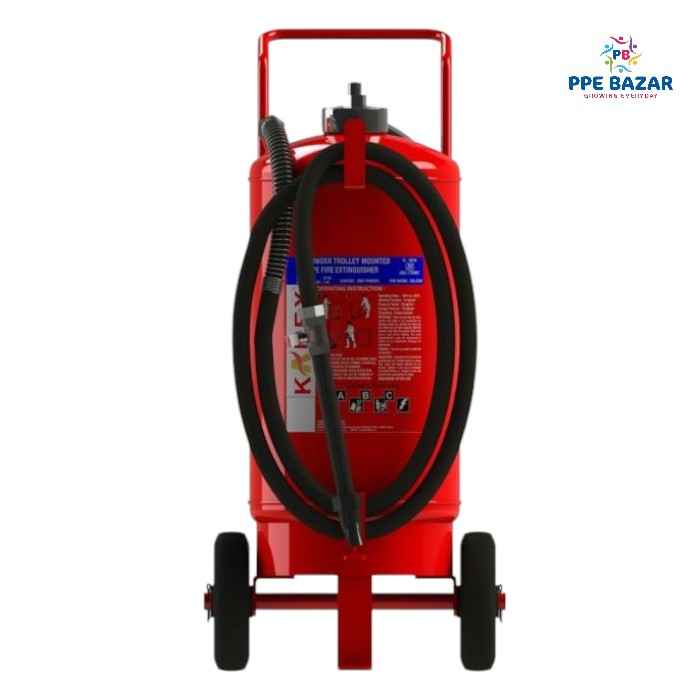

ABC Fire Extinguisher (Map 50 Based Mobile) 20A:233B Fire Rating 75 kg
0
0 Reviews0 Orders 0 Wish listed
₹42,179.90 + GST
MRP ₹60,257.0030 % Off
The ABC Fire Extinguisher (75 kg, MAP 50% Based Mobile Type) is a heavy-duty, high-capacity extinguisher designed for large-scale industrial and commercial fire protection. Engineered with Mono Ammonium Phosphate (MAP) 50% dry chemical powder, it effectively combats Class A (solid combustibles), Class B (flammable liquids), Class C (flammable gases), and electrically initiated fires.
Complying with IS 16018:2012 and BIS certification, it ensures safe, controlled, and reliable firefighting in high-risk zones such as fuel stations, refineries, manufacturing plants, and warehouses. Its rugged mobility, superior range, and extended discharge time make it an ideal choice for demanding fire safety requirements.
Application Areas
Fuel Storage and Gas Filling Stations
Oil Handling Facilities & Refineries
Offices, Banks & Commercial Complexes
Light Manufacturing & Assembly Units
Machining, Welding & Fabrication Workshops
Large Warehouses & Logistics Parks
Paint Shops & Chemical Handling Zones
Educational Institutions (Schools, Colleges)
Restaurants, Hotels & Hospitality Sectors
Public & Multi-Level Parking Garages
Heavy-Duty Material Handling & Storage Areas
Construction Sites & Infrastructure Projects
Maintenance Garages & Auto Repair Bays
Propane Storage & Distribution Centers
Electrical Equipment Rooms & Server Spaces
Key Features
✅ IS 16018:2012 Compliant: Ensures industry-standard quality and performance.
✅ BIS Approved & ISI Marked: Verified for safety, reliability, and effectiveness.
✅ Hydraulically Tested Cylinder: Treated for corrosion resistance and long-term use.
✅ UV-Resistant Polyester Coating: Pure polyester (PP) coating provides superior durability and aesthetics.
✅ IS:319 Brass Fittings & IS:617 Aluminum Alloy Nozzle: Precision-engineered for durability and safety.
✅ Controllable Discharge: Enables targeted firefighting and efficient suppression.
✅ High Flexibility PVC Braided Hose: Resilient under pressure and easy to handle.
✅ Easy Maintenance & Refilling: Designed for quick service and long-term usability.
✅ Heavy-Duty Wheeled Base: Enhances mobility and accessibility during emergencies.
Technical Specifications
Parameter
Specification
Model
KFDRQ-75-50%
Capacity
75 kg
Fire Rating
20A:233B
Design
Hose & Nozzle
Height (Approx.)
1030 mm
Diameter (Approx.)
400 ±10 mm
Average Discharge Time
51 seconds
Average Range of Throw
8 meters
Average Discharge Efficiency
93.5%
Operating Temperature
-30°C to +55°C
Service / Max. Service / Test Pressure
15 / 18 / 35 bar
Expelling Agent
CO₂
Full Weight (Approx.)
150 kg
Empty Weight (Approx.)
75 kg
Shipping Weight (Approx.)
152.5 kg
Approvals
BIS Certified
Product Details
The ABC Fire Extinguisher (75 kg, MAP 50% Based Mobile Type) is a heavy-duty, high-capacity extinguisher designed for large-scale industrial and commercial fire protection. Engineered with Mono Ammonium Phosphate (MAP) 50% dry chemical powder, it effectively combats Class A (solid combustibles), Class B (flammable liquids), Class C (flammable gases), and electrically initiated fires.
Complying with IS 16018:2012 and BIS certification, it ensures safe, controlled, and reliable firefighting in high-risk zones such as fuel stations, refineries, manufacturing plants, and warehouses. Its rugged mobility, superior range, and extended discharge time make it an ideal choice for demanding fire safety requirements.
Application Areas
Fuel Storage and Gas Filling Stations
Oil Handling Facilities & Refineries
Offices, Banks & Commercial Complexes
Light Manufacturing & Assembly Units
Machining, Welding & Fabrication Workshops
Large Warehouses & Logistics Parks
Paint Shops & Chemical Handling Zones
Educational Institutions (Schools, Colleges)
Restaurants, Hotels & Hospitality Sectors
Public & Multi-Level Parking Garages
Heavy-Duty Material Handling & Storage Areas
Construction Sites & Infrastructure Projects
Maintenance Garages & Auto Repair Bays
Propane Storage & Distribution Centers
Electrical Equipment Rooms & Server Spaces
Key Features
✅ IS 16018:2012 Compliant: Ensures industry-standard quality and performance.
✅ BIS Approved & ISI Marked: Verified for safety, reliability, and effectiveness.
✅ Hydraulically Tested Cylinder: Treated for corrosion resistance and long-term use.
✅ UV-Resistant Polyester Coating: Pure polyester (PP) coating provides superior durability and aesthetics.
✅ IS:319 Brass Fittings & IS:617 Aluminum Alloy Nozzle: Precision-engineered for durability and safety.
✅ Controllable Discharge: Enables targeted firefighting and efficient suppression.
✅ High Flexibility PVC Braided Hose: Resilient under pressure and easy to handle.
