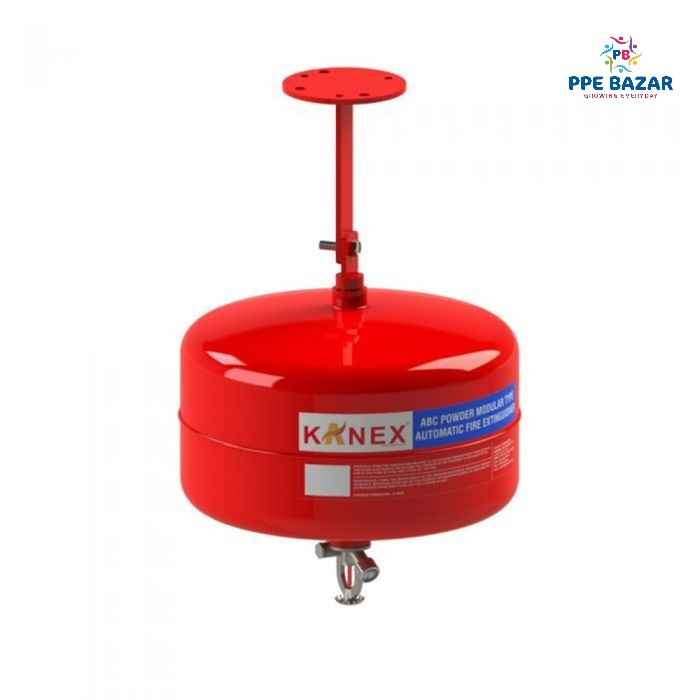

Automatic Modular Fire Extinguisher (MAP 50 Based) 10KG
0
0 Reviews0 Orders 0 Wish listed
₹6,519.80 + GST
MRP ₹9,314.0030 % Off
The 10 KG Automatic Modular Fire Extinguisher with MAP 50% powder is a powerful, ceiling-mounted unit designed for automatic detection and suppression of Class A, B, and C fires, as well as electrically started fires. Ideal for areas where human intervention might be delayed, this system activates through a heat-sensitive sprinkler head and discharges the extinguishing agent evenly across the protected area. Its robust build, advanced pressure gauge system, and anti-corrosive coating make it a dependable and low-maintenance choice for critical fire safety applications in both industrial and commercial environments.
✅ Key Features
Filled with high-purity MAP 50% dry powder effective on Class A, B, and C fires.
Automatic detection and suppression through integrated sprinkler mechanism.
Equipped with a Unique Gauge Testing System (UGTS) for real-time pressure status.
Brass chrome-plated sprinkler ensures uniform and reliable discharge.
Interior and exterior protected with UV-resistant Pure Polyester (PP) powder coating.
Hydro-tested cylinder exceeding 35 bar pressure for enhanced durability.
Expelling agent is Ultra High Pure (UHP) Grade Nitrogen for clean discharge.
Phosphate-treated anti-corrosive body to withstand harsh environments.
Operates during power failures without the need for electrical backup.
Barcoded for traceability, streamlining maintenance and record-keeping.
Cost-effective, easy to install, maintain, and recharge.
📐 Technical Specifications
Specification
Details
Model
KMPRQ-10-50%
Capacity
10 kg
Design
Ceiling Mounted
Height (Approx.)
405 mm
Diameter (Approx.)
300 ± 10 mm
Average Discharge Time
10–15 seconds
Average Discharge
99%
Operating Temperature
-30 °C to +55 °C
Service / Test Pressure
15 / 35 bar
Expelling Agent
Nitrogen (UHP Grade)
Full Weight (Approx.)
14.1 kg
Empty Weight (Approx.)
4.16 kg
Shipping Weight (Approx.)
14.5 kg
Mounting Bracket
Ceiling Mounting Stand
Volume Protection
Up to 10 m³
Area Protection
4–5 m²
Hanging Height Above Risk
2 m
Approvals
Approved by any Government Lab
