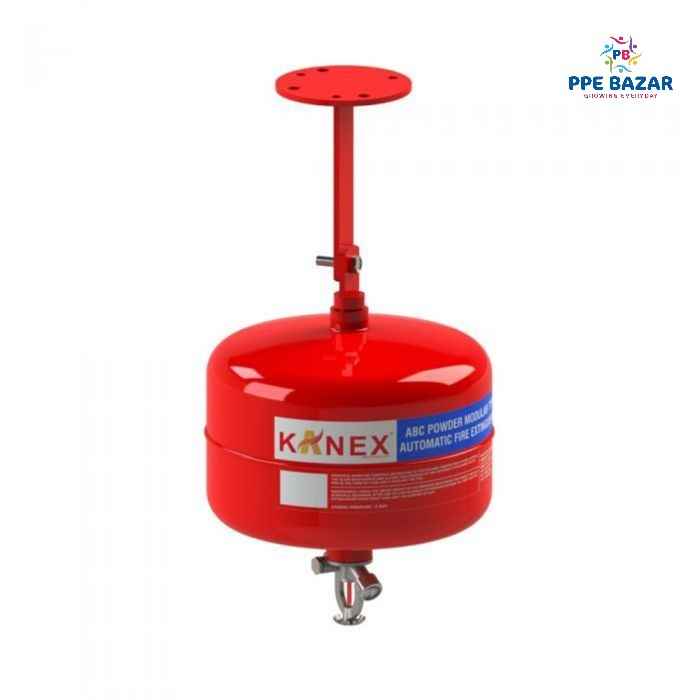

Automatic Modular Fire Extinguisher (MAP 50 Based) 5KG
0
0 Reviews0 Orders 0 Wish listed
₹3,430.00 + GST
MRP ₹4,900.0030 % Off
The Automatic Modular Fire Extinguisher (MAP 50 Based) – 5 KG is an efficient ceiling-mounted fire protection solution engineered to detect and suppress fires without human intervention. Equipped with high-performance 50% Mono Ammonium Phosphate (MAP) powder, it is highly effective against Class A (solid), Class B (liquid), and Class C (gas) fires, including fires of electrical origin. Ideal for enclosed and high-risk areas, this unit activates automatically upon detecting high heat, ensuring swift response even in unmanned spaces or during power outages. Its durable construction and intelligent pressure monitoring make it a reliable and low-maintenance fire safety asset.
✅ Key Features
Filled with high-quality MAP 50% dry chemical powder, suitable for Class A, B, and C fires.
Automatic activation via heat-sensitive sprinkler head – no manual operation required.
Integrated UGTS (Unique Gauge Testing System) for real-time pressure monitoring.
Brass chrome-plated discharge sprinkler ensures consistent and controlled dispersion.
Durable inner and outer body coating with UV-resistant pure polyester (PP) powder.
Factory hydro-tested cylinder, pressure tested beyond 35 bar for added safety.
Uses Ultra High Pure (UHP) Grade Nitrogen as an expelling agent.
Phosphate-treated anti-corrosive body for longer operational life.
Functions without any power backup – operates efficiently during blackouts or emergencies.
Barcoded for traceability – ensures efficient servicing and lifecycle tracking.
Economical, easy to install, maintain, and recharge.
📐 Technical Specifications
MODEL
KMPRQ-5-50%
Capacity
5 kg
Design
Ceiling Mounted
Height (Approx.)
375 mm (corrected from 3754 mm)
Diameter (Approx.)
230 ± 10 mm
Average Discharge Time
6–8 seconds
Average Discharge
98%
Operating Temperature
-30 °C to +55 °C
Service / Max. / Test Pressure
15 / 35 bar
Expelling Agent
Nitrogen (UHP Grade)
Full Weight (Approx.)
7.6 kg
Empty Weight (Approx.)
2.6 kg
Shipping Weight (Approx.)
7.7 kg
Mounting Bracket
Ceiling Mounting Stand
Volume Protection
2–2.5 m³
Area Protection
1.5–2 m²
Hanging Height Above Risk
2 m
Approvals
Any Government Approved Lab
Product Details
The Automatic Modular Fire Extinguisher (MAP 50 Based) – 5 KG is an efficient ceiling-mounted fire protection solution engineered to detect and suppress fires without human intervention. Equipped with high-performance 50% Mono Ammonium Phosphate (MAP) powder, it is highly effective against Class A (solid), Class B (liquid), and Class C (gas) fires, including fires of electrical origin. Ideal for enclosed and high-risk areas, this unit activates automatically upon detecting high heat, ensuring swift response even in unmanned spaces or during power outages. Its durable construction and intelligent pressure monitoring make it a reliable and low-maintenance fire safety asset.
✅ Key Features
Filled with high-quality MAP 50% dry chemical powder, suitable for Class A, B, and C fires.
Automatic activation via heat-sensitive sprinkler head – no manual operation required.
Integrated UGTS (Unique Gauge Testing System) for real-time pressure monitoring.
Brass chrome-plated discharge sprinkler ensures consistent and controlled dispersion.
Durable inner and outer body coating with UV-resistant pure polyester (PP) powder.
Factory hydro-tested cylinder, pressure tested beyond 35 bar for added safety.
Uses Ultra High Pure (UHP) Grade Nitrogen as an expelling agent.
Phosphate-treated anti-corrosive body for longer operational life.
Functions without any power backup – operates efficiently during blackouts or emergencies.
Barcoded for traceability – ensures efficient servicing and lifecycle tracking.
Economical, easy to install, maintain, and recharge.
