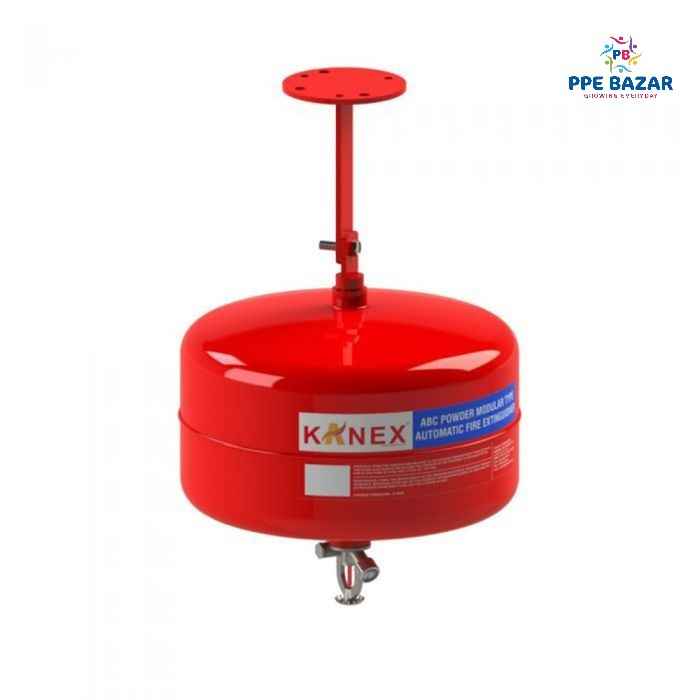

Automatic Modular Fire Extinguisher (MAP 90 Based) 10 KG
0
0 Reviews0 Orders 0 Wish listed
₹11,227.00 + GST
MRP ₹11,257.0030 flat Off
The Automatic Modular Fire Extinguisher (MAP 90 Based) – 10 KG is a high-performance, ceiling-mounted fire suppression solution, engineered for automatic detection and extinguishing of Class A, B, C, and electrical fires. With its superior MAP 90% dry chemical powder and precision-engineered discharge sprinkler, it delivers fast, effective, and localized fire control without human intervention — even during power outages. Ideal for industrial and commercial spaces where round-the-clock fire safety is crucial.
📍 Application Areas
Corporate Offices & Financial Institutions
Transformer Rooms & Electrical Installations
Welding Benches & Fabrication Units
Paint, Varnish & Spray Booths
Oil Fill Stations & Fuel Dispensaries
Liquid Fuel & Chemical Storage Areas
Automotive Repair Garages & Service Bays
✅ Key Features
Charged with MAP 90% high-efficiency dry powder, suitable for Class A, B, C, and electrical fires.
UGTS (Unique Gauge Testing System) for enhanced reliability and monitoring.
Brass chrome-plated sprinkler head for precise and consistent discharge.
Pure Polyester (PP) powder-coated body, resistant to corrosion and UV damage.
Combines automatic detection and suppression in one compact unit.
Factory-tested shells at over 35 bar, ensuring safety and durability.
Uses Ultra High Purity (UHP) Nitrogen as the expelling agent for clean operation.
Phosphate-treated interior and exterior for superior corrosion resistance.
Fully functional during power outages – no external power supply needed.
Easy to maintain, refill, and service, reducing long-term ownership costs.
Barcoded for efficient tracking and inventory management.
📐 Technical Specifications
Specification
Details
Model
KMPRQ-10-90
Capacity
10 kg
Design
Ceiling Mounted
Height (Approx.)
405 mm
Diameter (Approx.)
300 ± 10 mm
Average Discharge Time
10–15 seconds
Average Discharge
99%
Operating Temperature
-30 °C to +55 °C
Service / Test Pressure
15 / 35 bar
Expelling Agent
Nitrogen (UHP Grade)
Full Weight (Approx.)
14.1 kg
Empty Weight (Approx.)
4.16 kg
Shipping Weight (Approx.)
14.5 kg
Mounting Bracket
Ceiling mounting stand
Approvals
Any Government Approved Lab
Volume Protection
Up to 10 m³
Area Protection
4–5 m²
Hanging Height Above Risk
2 m
Product Details
