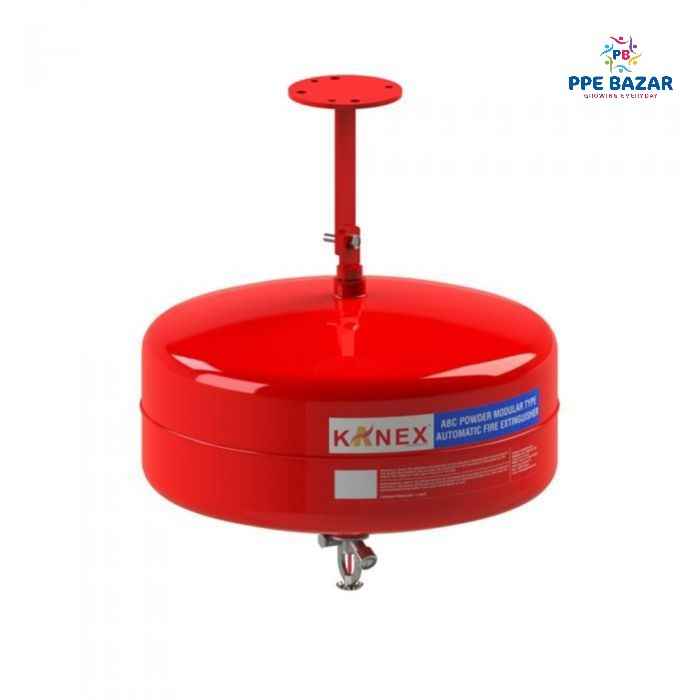

Automatic Modular Fire Extinguisher (MAP 90 Based) 15 KG
0
0 Reviews0 Orders 0 Wish listed
₹15,479.80 + GST
MRP ₹22,114.0030 % Off
The Automatic Modular Fire Extinguisher (MAP 90 Based) – 15 KG is a heavy-duty, ceiling-mounted fire suppression system designed for high-risk environments where maximum fire protection is critical. Charged with Mono Ammonium Phosphate (MAP) 90% dry chemical powder, it provides highly effective suppression for Class A (solid combustibles), B (flammable liquids), C (flammable gases), and electrical fires. Once triggered by ambient heat, the unit automatically discharges its contents without requiring manual intervention or external power, making it an ideal choice for remote, unmanned, or hazardous areas.
📍 Application Areas
Transformer & Electrical Rooms
Oil & Fuel Storage Areas
Welding Zones & Fabrication Shops
Paint & Varnish Spray Booths
Industrial Plants & Warehouses
Automotive Garages & Service Centers
Power Stations & Generator Rooms
Server Rooms & Control Panels
✅ Key Features
MAP 90% high-performance powder, suitable for multiple classes of fire.
UGTS (Unique Gauge Testing System) ensures accurate pressure monitoring.
Brass chrome-plated discharge sprinkler for quick and even powder release.
Pure Polyester (PP) powder coating on the exterior and interior for long-term durability.
Automatic detection and discharge system – works even during power outages.
100% factory hydro tested shell, pressure tested to exceed 35 bar.
Uses Ultra High Purity (UHP) Grade Nitrogen as the expelling agent.
Phosphate-treated anti-corrosive module body enhances longevity.
Barcoded for efficient traceability, inventory control, and maintenance logging.
Low maintenance and easy recharging, ensuring cost-effective operation over time.
📐 Technical Specifications
Specification
Details
Model
KMPRQ-15-90
Capacity
15 kg
Design
Ceiling Mounted
Height (Approx.)
425 mm
Diameter (Approx.)
400 ± 10 mm
Average Discharge Time
15–20 seconds
Average Discharge
99%
Operating Temperature
-30 °C to +55 °C
Service / Test Pressure
15 / 35 bar
Expelling Agent
Nitrogen (UHP Grade)
Full Weight (Approx.)
21.4 kg
Empty Weight (Approx.)
6.4 kg
Shipping Weight (Approx.)
22 kg
Mounting Bracket
Ceiling mounting stand
Approvals
Any Government Approved Lab
Volume Protection
Up to 15 m³
Area Protection
5–6 m²
Hanging Height Above Risk
2.5 m
Product Details
The Automatic Modular Fire Extinguisher (MAP 90 Based) – 15 KG is a heavy-duty, ceiling-mounted fire suppression system designed for high-risk environments where maximum fire protection is critical. Charged with Mono Ammonium Phosphate (MAP) 90% dry chemical powder, it provides highly effective suppression for Class A (solid combustibles), B (flammable liquids), C (flammable gases), and electrical fires. Once triggered by ambient heat, the unit automatically discharges its contents without requiring manual intervention or external power, making it an ideal choice for remote, unmanned, or hazardous areas.
📍 Application Areas
Transformer & Electrical Rooms
Oil & Fuel Storage Areas
Welding Zones & Fabrication Shops
Paint & Varnish Spray Booths
Industrial Plants & Warehouses
Automotive Garages & Service Centers
Power Stations & Generator Rooms
Server Rooms & Control Panels
✅ Key Features
MAP 90% high-performance powder, suitable for multiple classes of fire.
UGTS (Unique Gauge Testing System) ensures accurate pressure monitoring.
Brass chrome-plated discharge sprinkler for quick and even powder release.
Pure Polyester (PP) powder coating on the exterior and interior for long-term durability.
Automatic detection and discharge system – works even during power outages.
100% factory hydro tested shell, pressure tested to exceed 35 bar.
Uses Ultra High Purity (UHP) Grade Nitrogen as the expelling agent.
Phosphate-treated anti-corrosive module body enhances longevity.
Barcoded for efficient traceability, inventory control, and maintenance logging.
Low maintenance and easy recharging, ensuring cost-effective operation over time.
