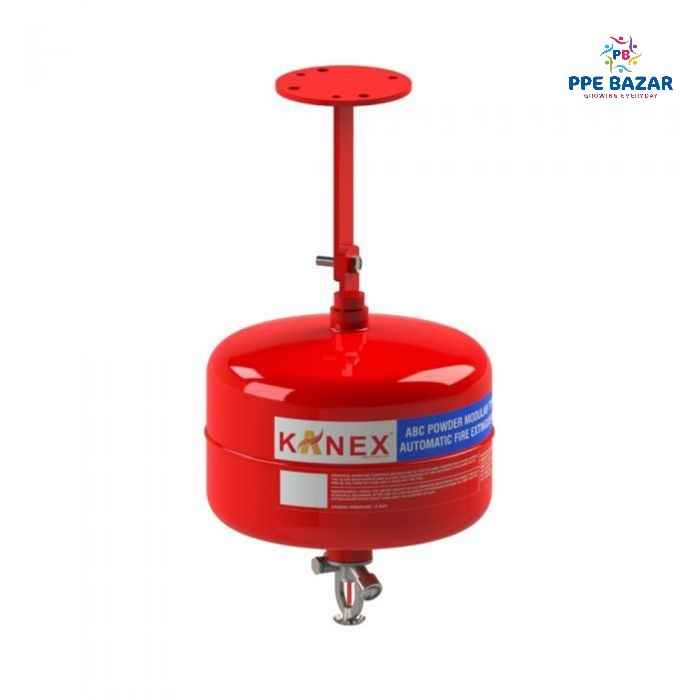

Automatic Modular Fire Extinguisher (MAP 90 Based) 5 KG
0
0 Reviews0 Orders 0 Wish listed
₹6,114.74 + GST
MRP ₹7,457.0018 % Off
The 5 KG Automatic Modular Fire Extinguisher using 90% Mono Ammonium Phosphate (MAP) powder is a high-efficiency, ceiling-mounted suppression unit designed for automatic activation in high-risk areas. It provides instant detection and suppression of Class A, B, C, and electrical fires without human intervention. Its robust construction, reliable operation, and maintenance-friendly design make it ideal for both industrial and commercial fire protection.
📍 Application Areas
Corporate Offices & Banking Facilities
Transformer Units & Electrical Panels
Welding Benches & Fabrication Shops
Paint, Varnish & Chemical Booths
Oil & Fuel Fill Stations
Liquid Storage Warehouses
Automotive Service Garages
Key Features
Filled with high-purity MAP 90% powder for effective multi-class fire suppression.
Unique Gauge Testing System (UGTS) for real-time pressure monitoring.
Brass chrome-plated sprinkler nozzle ensures targeted and efficient discharge.
Rugged Pure Polyester (PP) coating, UV-resistant and corrosion-proof inside and out.
Combines automatic detection and suppression in a single, compact design.
100% hydro tested shells exceeding 35 bar for guaranteed safety.
Uses Ultra High Pure (UHP) Grade Nitrogen for clean and powerful expulsion.
Phosphate-treated body for long-term corrosion resistance.
Works without electrical backup – reliable during outages.
Easy to maintain and recharge, lowering overall lifecycle costs.
Barcoded labeling for simple tracking and inventory management.
📐 Technical Specifications
Specification
Details
Model
KMPRQ-5-90
Capacity
5 kg
Design
Ceiling Mounted
Height (Approx.)
375 mm (Corrected from 3754 mm)
Diameter (Approx.)
230 ± 10 mm
Average Discharge Time
6–8 seconds
Average Discharge
98%
Operating Temperature
-30 °C to +55 °C
Service / Test Pressure
15 / 35 bar
Expelling Agent
Nitrogen (UHP Grade)
Full Weight (Approx.)
7.6 kg
Empty Weight (Approx.)
2.6 kg
Shipping Weight (Approx.)
7.7 kg
Mounting Bracket
Ceiling Mounting Stand
Approvals
Any Government Approved Lab
Volume Protection
2–2.5 m³
Area Protection
1.5–2 m²
Hanging Height Above Risk
2 m
Product Details
The 5 KG Automatic Modular Fire Extinguisher using 90% Mono Ammonium Phosphate (MAP) powder is a high-efficiency, ceiling-mounted suppression unit designed for automatic activation in high-risk areas. It provides instant detection and suppression of Class A, B, C, and electrical fires without human intervention. Its robust construction, reliable operation, and maintenance-friendly design make it ideal for both industrial and commercial fire protection.
📍 Application Areas
Corporate Offices & Banking Facilities
Transformer Units & Electrical Panels
Welding Benches & Fabrication Shops
Paint, Varnish & Chemical Booths
Oil & Fuel Fill Stations
Liquid Storage Warehouses
Automotive Service Garages
Key Features
Filled with high-purity MAP 90% powder for effective multi-class fire suppression.
Unique Gauge Testing System (UGTS) for real-time pressure monitoring.
Brass chrome-plated sprinkler nozzle ensures targeted and efficient discharge.
Rugged Pure Polyester (PP) coating, UV-resistant and corrosion-proof inside and out.
Combines automatic detection and suppression in a single, compact design.
100% hydro tested shells exceeding 35 bar for guaranteed safety.
Uses Ultra High Pure (UHP) Grade Nitrogen for clean and powerful expulsion.
Phosphate-treated body for long-term corrosion resistance.
Works without electrical backup – reliable during outages.
Easy to maintain and recharge, lowering overall lifecycle costs.
Barcoded labeling for simple tracking and inventory management.
