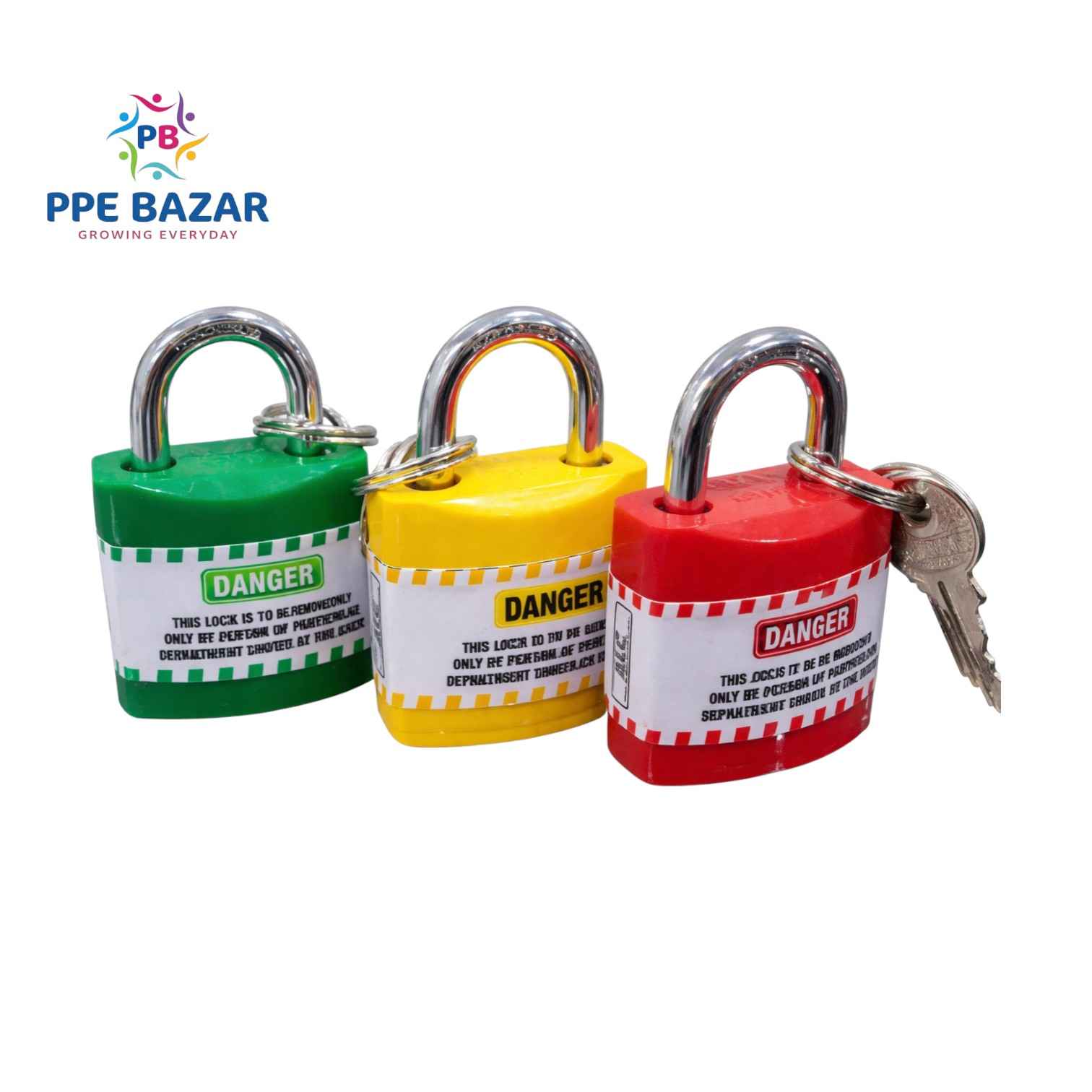

The ALC-LPR Lockout Padlock with Regular Jacketed Shackle is a durable safety padlock designed for industrial Lockout/Tagout (LOTO) procedures. It is used to isolate hazardous energy sources during maintenance and servicing of machinery and electrical systems.

This model features a regular steel shackle coated with a protective insulating jacket, providing corrosion resistance and additional safety while maintaining high mechanical strength. The padlock is supplied with 3 individual keys per lock, allowing authorized personnel controlled access.

The lock body is manufactured from high-impact, non-conductive thermoplastic material, ensuring resistance to chemicals, moisture, and extreme industrial environments.

TECHNICAL SPECIFICATION

1. General Details

• Model No.: ALC-LPR

• Product Type: Lockout Safety Padlock

• Shackle Type: Regular Steel Shackle with Protective Jacket

• Keys Supplied: 3 Keys per Padlock

• Application: Industrial Lockout/Tagout (LOTO)

2. Lock Body

• Material: Reinforced Nylon / Engineering Thermoplastic

• Body Width: Approx. 38–45 mm

• Body Height: Approx. 45–50 mm (standard size)

• Body Thickness: Approx. 20 mm

• Color Options: Red (standard), Yellow, Blue, Green, Black (optional)

• Chemical Resistance: Yes

• UV Resistant: Yes

3. Shackle Details

• Material: Hardened Steel

• Coating: Insulated PVC / Nylon Jacket

• Shackle Diameter: Approx. 6 mm

• Vertical Clearance: Approx. 38 mm

• Corrosion Resistance: Yes

• Strength: High cut and tamper resistance

4. Locking Mechanism

• Type: Precision Pin Tumbler Cylinder

• Keying Option:

  • Keyed Different (Standard)

  • Keyed Alike / Master Key (Optional on request)

• Key Retaining Feature: Yes (Key removable only when locked)

• Number of Keys Supplied: 3 Nos.

5. Compliance & Standards

• Designed as per OSHA 29 CFR 1910.147 guidelines

• Suitable for industrial energy isolation procedures

• Ideal for electrical and mechanical lockout applications

6. Application Areas

• Electrical Panels

• Circuit Breakers

• MCC Panels

• Valves & Mechanical Equipment

• Industrial Machines

• Maintenance Safety Lockout Systems

KEY FEATURES

• Heavy-duty jacketed steel shackle

• Impact-resistant thermoplastic body

• Supplied with 3 keys

• Corrosion and chemical resistant

• Suitable for indoor and outdoor use

• Key retaining safety system
