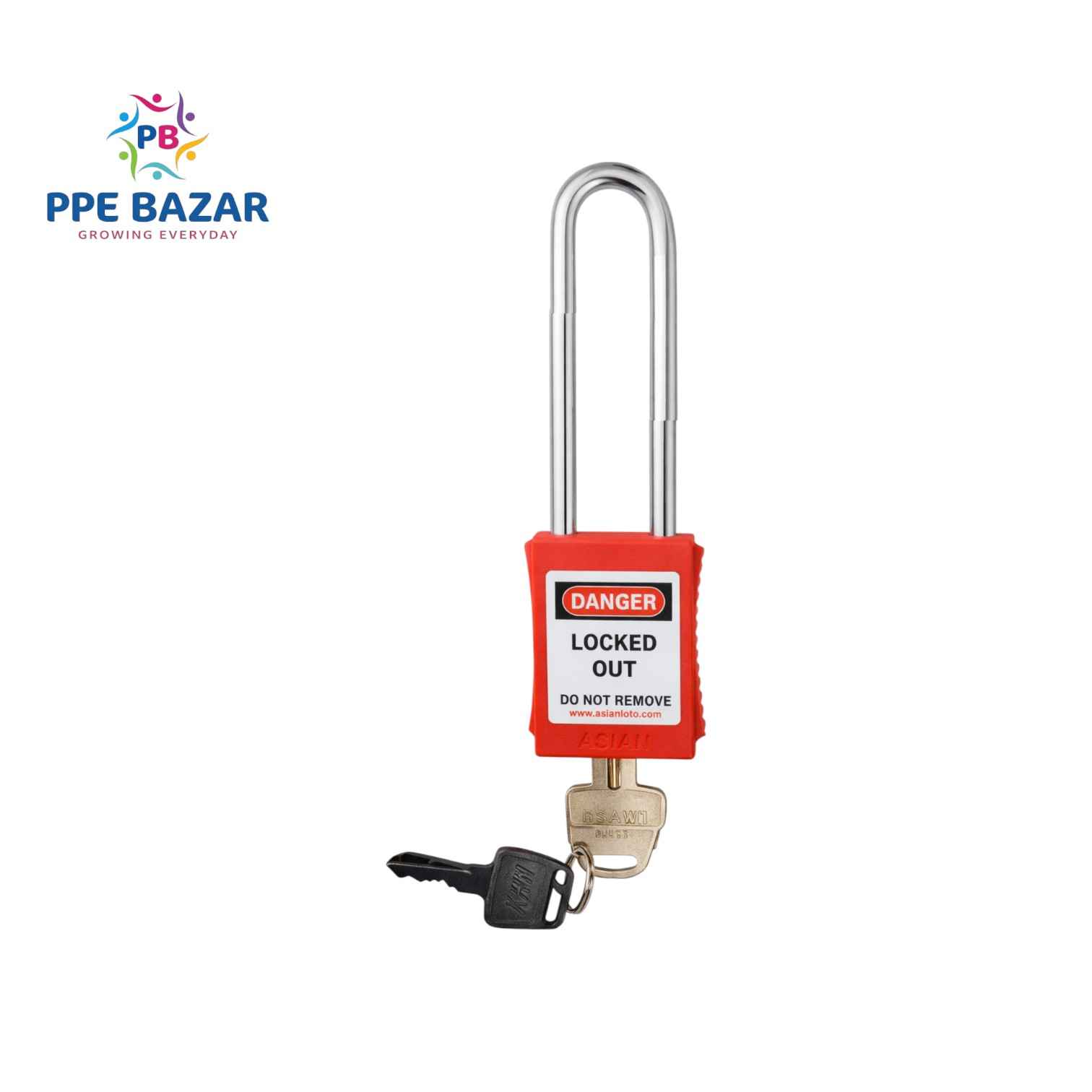

This OSHA Safety Lockout/Tagout (LOTO) Padlock features an Extended Long Metallic Shackle (76–80mm) — specifically engineered for applications where a standard 38–40mm shackle cannot reach the lockout point. The longer shackle provides the additional clearance needed to secure thick valve handles, large hasps, oversized circuit breakers, pipes, chains, and multi-lock group lockout devices.
Equipped with a Different Key (DK) System, every padlock in the set carries its own completely unique key — no two locks can be opened by the same key. This guarantees strict individual lock ownership and accountability, a fundamental requirement under OSHA LOTO regulations for protecting workers during hazardous energy isolation.
Fully compliant with OSHA CFR 29 Part 1910.147 for the Control of Hazardous Energy.
🔧 TECHNICAL SPECIFICATIONS
| Parameter |
Details |
| Body Material |
Glass Fiber Reinforced Nylon / High-Impact ABS Composite |
| Shackle Material |
Zinc-Plated / Carbide Hardened Steel |
| Shackle Type |
Long Shackle |
| Shackle Height |
76 mm – 80 mm |
| Body Width |
40 mm |
| Body Size |
Approx. 45mm (H) × 40mm (W) × 20mm (D) |
| Shackle Diameter |
6 mm – 6.5 mm |
| Key System |
Different Key (DK) – Every lock has a completely unique key |
| Key Retaining |
Yes – Key removable only when padlock is in locked position |
| Lock Cylinder |
Copper alloy – spark-free, anti-friction design |
| No. of Keys Included |
2 unique keys per lock |
| Operating Temperature |
0°F to 250°F / -20°C to 120°C |
| Resistance |
Waterproof, Corrosion Resistant, UV Resistant, Non-Silicon |
| Shackle Clearance |
76–80mm — fits thick hasps, chains, valve stems & large lockout devices |
| Color Options |
Red, Blue, Yellow, Green, Orange, White, Purple, Black |
| Compliance Standard |
OSHA CFR 29 Part 1910.147 (LOTO) |
✅ KEY FEATURES
- ✔ Complies with OSHA LOTO Standard (CFR 1910.147)
- ✔ Extended Long Shackle (76–80mm) — reaches lockout points inaccessible to standard locks
- ✔ Different Key system — maximum individual security, zero shared key risk
- ✔ Hardened steel shackle — superior cut, pull & pry resistance
- ✔ Key retaining feature — cannot be left accidentally unlocked
- ✔ Fits group lockout hasps, thick pipes, chains & oversized valve handles
- ✔ Anti-rust, anti-corrosion zinc-plated shackle coating
- ✔ Non-conductive, lightweight body — safe for varied industrial environments
- ✔ Laser-engraved serial/ID numbers available for personnel tracking
📏 SHACKLE SIZE COMPARISON
| Shackle Type |
Shackle Height |
Best Used For |
| Standard Shackle |
38–40 mm |
Standard panels, hasps, lockout devices |
| Long Shackle |
76–80 mm |
Thick valves, chains, oversized hasps, deep lockout points |
| Extra Long Shackle |
100mm+ |
Heavy industrial chains, large gate locks |
🔑 KEY SYSTEM COMPARISON
| Feature |
Alike Key (AK) |
Master Key (MK) |
Different Key (DK) |
| Individual Lock Key |
Same for all |
Unique per lock |
Unique per lock |
| Master Override |
❌ |
✅ |
❌ |
| Key Sharing Possible |
✅ |
Supervisor only |
Never |
| Security Level |
Moderate |
High |
Maximum |
| Best For |
Group LOTO |
Supervised LOTO |
Strict individual LOTO |
📦 APPLICATIONS
- Thick valve stems & large gate valve lockout
- Oversized circuit breaker & switchgear isolation
- Chain & cable lockout on industrial machinery
- Multi-lock group hasp lockout devices
- Pipeline isolation in oil, gas & petrochemical plants
- Heavy machinery & press lockout
- Construction equipment isolation
- Any lockout point requiring extended shackle clearance
