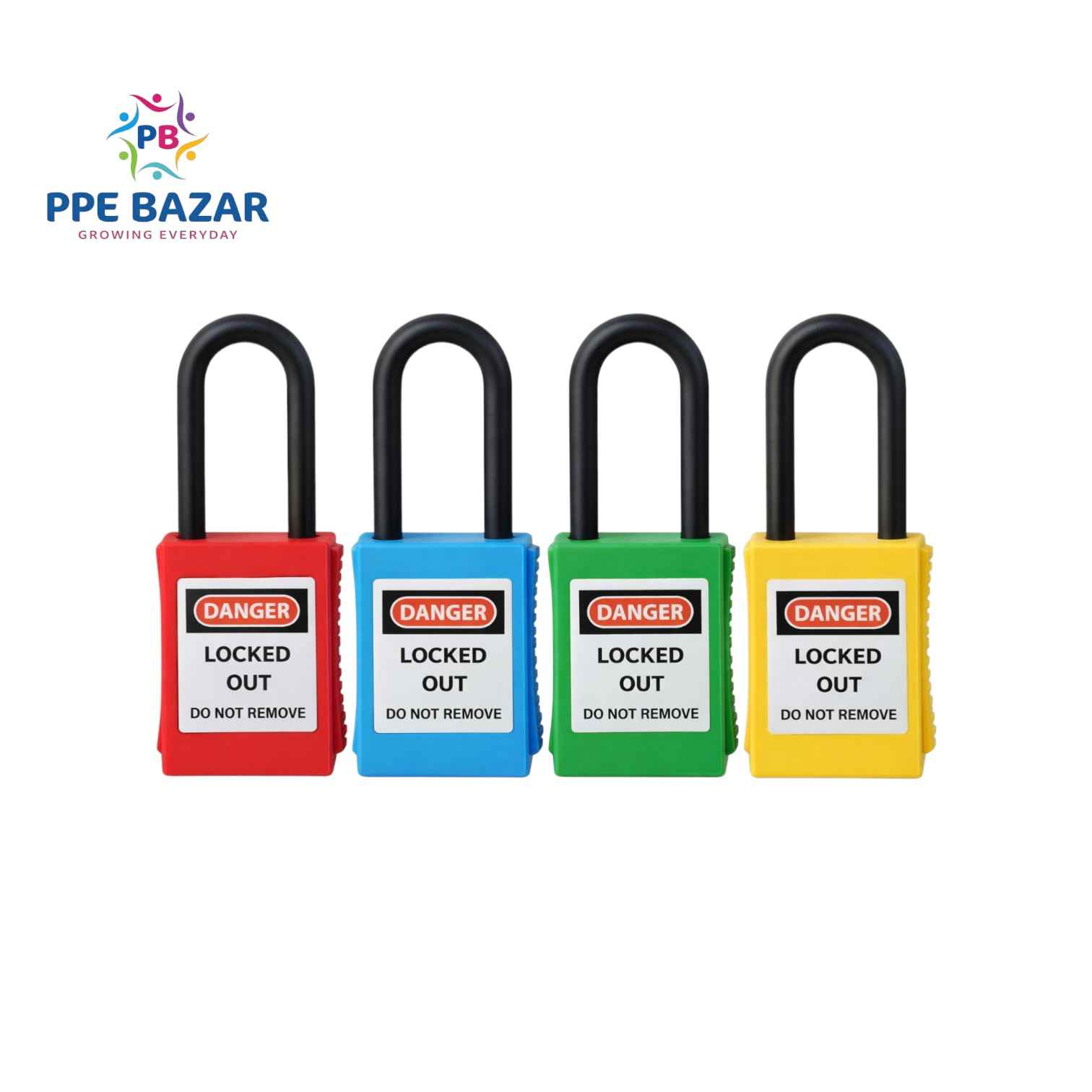

This OSHA Safety Lockout/Tagout (LOTO) Padlock combines two powerful safety features — a Di-Electric (Non-Conductive) Shackle for full electrical insulation and an Alike Key (AK) System where multiple padlocks are opened by the same key. This combination is specifically designed for group lockout procedures in electrical environments, where a team of workers needs identical key access while eliminating any risk of electrical conductivity through the shackle.
The non-conductive polymer shackle makes this padlock the preferred choice for electrical panel lockouts, switchgear isolation, and high-voltage maintenance where metallic components near live circuits pose serious safety risks.
Fully compliant with OSHA CFR 29 Part 1910.147 for the Control of Hazardous Energy.
🔧 TECHNICAL SPECIFICATIONS
| Parameter |
Details |
| Body Material |
Glass Fiber Reinforced Nylon / High-Impact ABS Composite |
| Shackle Material |
Di-Electric Nylon / Non-Conductive Polymer |
| Shackle Height |
38 mm |
| Body Width |
40 mm |
| Body Size |
Approx. 45mm (H) × 40mm (W) × 20mm (D) |
| Shackle Diameter |
6 mm – 6.5 mm |
| Electrical Insulation |
Fully Non-Conductive Shackle |
| Voltage Rating |
Up to 230V / 440V AC (typical di-electric rating) |
| Key System |
Alike Key (AK) – All locks in the set opened by the same key |
| Key Retaining |
Yes – Key removable only when padlock is locked |
| Lock Cylinder |
Copper alloy – spark-free, anti-friction design |
| No. of Keys Included |
2 alike keys per lock |
| Operating Temperature |
0°F to 250°F / -20°C to 120°C |
| Resistance |
Waterproof, Corrosion Resistant, UV Resistant, Non-Silicon |
| Color Options |
Red, Blue, Yellow, Green, Orange, White, Purple, Black |
| Compliance Standard |
OSHA CFR 29 Part 1910.147 (LOTO) |
✅ KEY FEATURES
- ✔ Complies with OSHA LOTO Standard (CFR 1910.147)
- ✔ Di-Electric Non-Conductive Shackle — zero electrical conductivity risk
- ✔ Alike Key system — simplified key management for group LOTO teams
- ✔ Single key opens all locks in the set — ideal for shift-based teams
- ✔ Key retaining feature — lock cannot be left accidentally unlocked
- ✔ Fully non-metallic shackle — safe near live electrical panels & switchgear
- ✔ Lightweight, anti-spark, anti-corrosion throughout
- ✔ Anti-skid grip body design
- ✔ Serial/ID laser engraving available for personnel management
🔑 COMPLETE KEY SYSTEM COMPARISON
| Feature |
Alike Key (AK) |
Different Key (DK) |
Master Key (MK) |
| Individual Lock Key |
Same for all locks |
Unique per lock |
Unique per lock |
| Master Override |
❌ |
❌ |
✅ |
| Key Sharing |
✅ All users share key |
Never |
Supervisor only |
| Security Level |
Moderate |
Maximum |
High |
| Best For |
Group/team LOTO |
Individual LOTO |
Supervised LOTO |
⚡ DI-ELECTRIC SHACKLE ADVANTAGE
| Feature |
Metallic Shackle |
Di-Electric Shackle |
| Material |
Hardened Steel |
Non-Conductive Nylon/Polymer |
| Conducts Electricity |
✅ Yes — Risk |
❌ No — Fully Safe |
| Safe Near Live Circuits |
⚠️ Not Recommended |
✅ Recommended |
| Corrosion Resistance |
Moderate |
Excellent |
| Weight |
Heavier |
Lighter |
| Chemical Resistance |
Low–Moderate |
High |
📦 APPLICATIONS
- Group electrical panel & circuit breaker lockout
- Switchgear and transformer isolation
- MCC (Motor Control Centre) maintenance
- Substation & high-voltage line servicing
- Chemical & petrochemical plant LOTO
- Shift-based teams requiring shared key access
- Any live electrical environment requiring non-conductive lockout hardware
