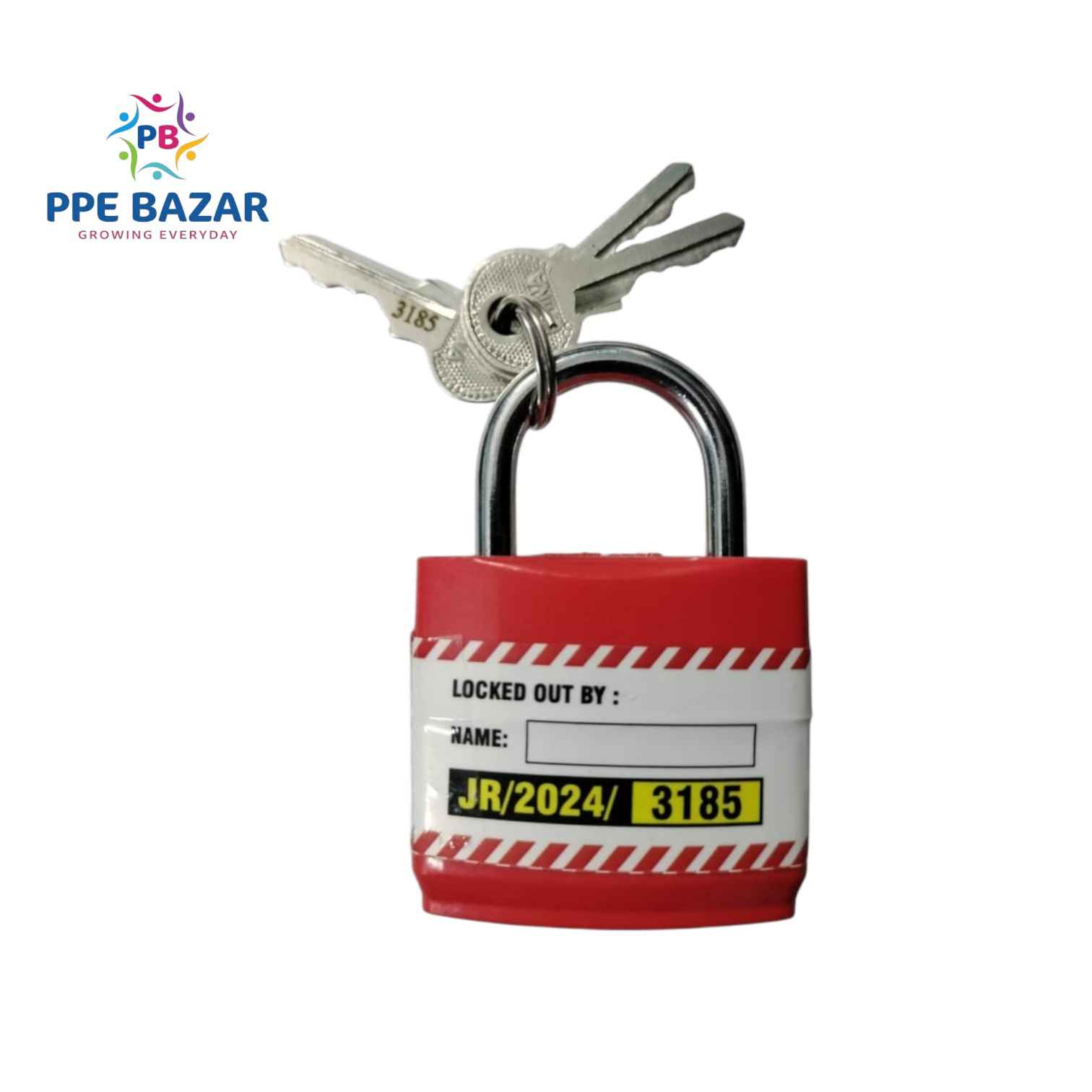

A Lockout Padlock (LOTO Padlock) is a specialized industrial safety device engineered for energy isolation during maintenance, servicing, or repair operations. It prevents accidental activation of machinery by physically locking energy control points such as electrical panels, valves, circuit breakers, or mechanical switches.

Unlike conventional padlocks, LOTO padlocks are designed according to occupational safety compliance protocols and ensure one worker–one lock–one key control logic, eliminating unauthorized equipment startup. The body is typically constructed from non-conductive, spark-resistant engineering polymers, making it suitable for electrical and hazardous environments.

These padlocks integrate into a Lockout–Tagout (LOTO) safety system, supporting OSHA-style safety workflows and industrial risk mitigation strategies.

Key Specifications

1. Construction & Material

• Body Material: Reinforced Nylon / ABS Thermoplastic (non-conductive)
• Shackle Material: Hardened Steel / Stainless Steel / Nylon (optional insulated type)
• Corrosion Resistance: High resistance to chemicals, UV exposure, and moisture
• Spark Resistance: Suitable for explosive-risk zones

2. Dimensions (Typical Industrial Standard)

• Body Size: approx. 38 mm × 45 mm
• Shackle Diameter: 6 mm
• Shackle Clearance: 25–38 mm (varies by model)
• Weight: 90–150 g

3. Locking Mechanism

• Precision pin tumbler cylinder
• Key retaining feature (key removable only when locked)
• Individual keying system (KD – Key Different)
• Optional: Keyed Alike (KA) / Master Key System (MK)

4. Electrical Safety

• Dielectric, non-conductive body
• Voltage insulation capability suitable for electrical lockout procedures
• Anti-static design properties

5. Identification & Compliance

• Writable safety label area for worker name/department
• Color-coded bodies for departmental segregation
• Supports OSHA / ISO safety lockout practices
• Tamper-resistant design

6. Environmental Performance

• Operating Temperature Range: −20°C to +120°C
• Water and dust resistant
• Suitable for indoor & outdoor industrial deployment

Functional Features

• Prevents accidental energization of machinery
• Ensures maintenance personnel safety
• Visual safety identification via color coding
• Durable for heavy industrial usage
• Lightweight yet impact resistant
• Supports multi-worker lockout procedures using hasps

Typical Applications

• Electrical control panels
• Circuit breakers
• Industrial machinery maintenance
• Oil & gas facilities
• Manufacturing plants
• HVAC systems
• Chemical processing units
