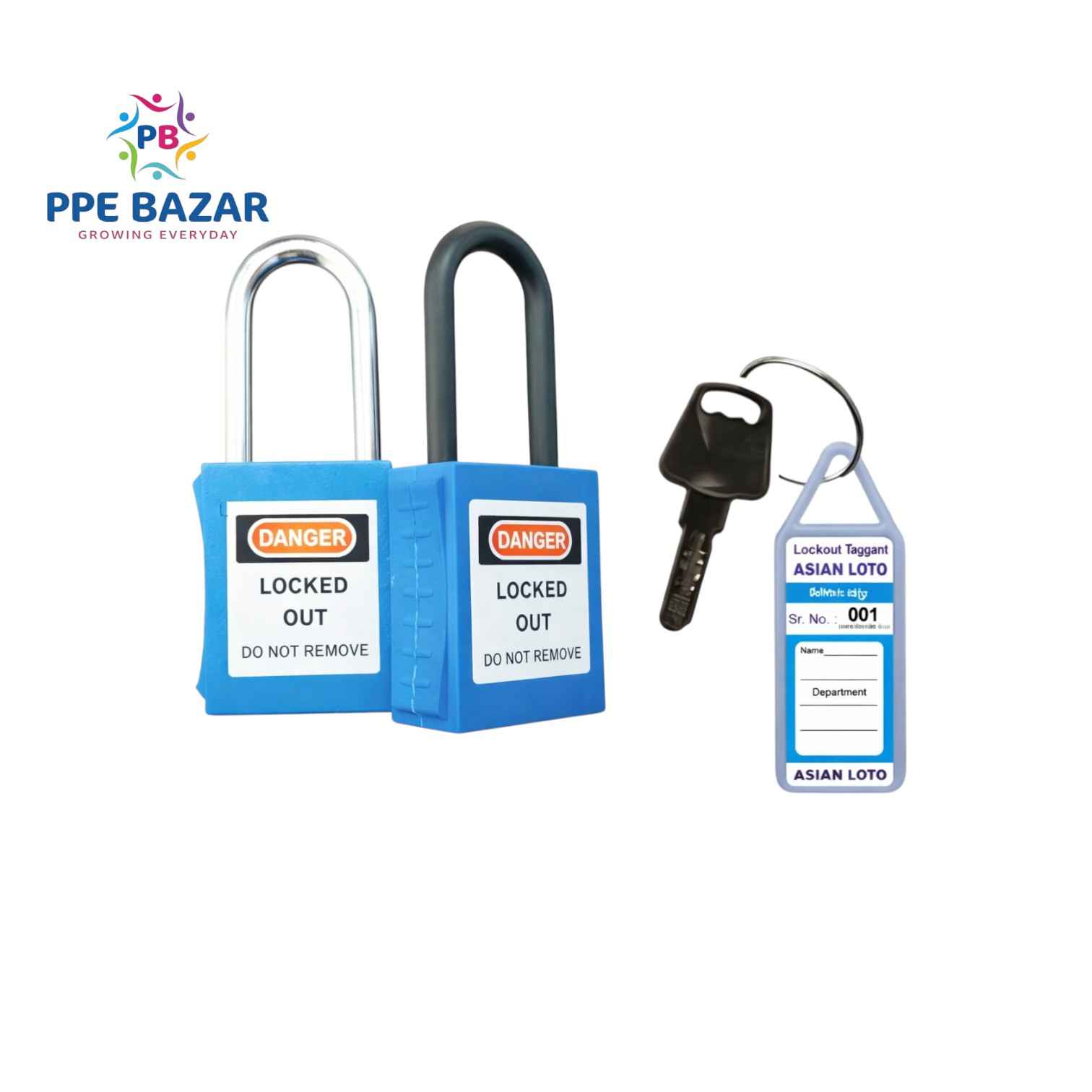

🔐 Asian LOTO Safety Padlock
📝 Product Description
The Asian LOTO Safety Padlock is a non-conductive, industrial-grade safety padlock engineered specifically for Lockout-Tagout (LOTO) procedures in industrial, manufacturing, electrical, chemical, and maintenance environments. It is designed to comply with the requirements of OSHA Standard 29 CFR 1910.147 — Control of Hazardous Energy — which mandates that all hazardous energy sources be isolated and rendered inoperative before maintenance or servicing work begins on machinery or equipment.
LOTO padlocks are designed to be hardwearing, impact-resistant, non-conductive, and chemical- and corrosion-resistant, and are able to withstand high and low temperatures and harsh environments. The purpose of a lockout tagout safety padlock is to secure and lock out a particular machine or piece of equipment, preventing unauthorized personnel from accessing energy sources that provide power to machines. Volza
The Asian LOTO padlock features a seamless body construction — meaning the lock body has no exposed external seam or joint — which significantly enhances its structural integrity against impact, moisture ingress, and dust penetration compared to conventional two-piece shell padlocks. Its Glass Fiber Reinforced Nylon (ABS + Nylon composite) body makes it electrically non-conductive, which is critical for electrical isolation applications.
The padlock integrates a 6-Level Key Management System, enabling organizations to implement a tiered authorization hierarchy — from individual workers up to plant safety managers — using a master key architecture. This is particularly useful for large facilities managing multiple LOTO points simultaneously.
🏗️ Body & Construction
| Parameter |
Detail |
| Lock Body Type |
Seamless, single-piece molded body (no external seam or joint) |
| Body Material |
Glass Fiber Reinforced Nylon — composite of ABS (Acrylonitrile Butadiene Styrene) + Nylon (Polyamide) |
| Body Properties |
Electrically non-conductive, UV-resistant, impact-resistant, chemical-resistant |
| Surface Finish |
Anti-skid textured side panels for grip while wearing safety gloves |
| Color Options |
Typically available in Red, Blue, Yellow, Green, Orange (for color-coded departmental identification) |
| Approximate Body Width |
~38 mm (standard industrial size) |
| Sealing |
Waterproof sealed construction — resistant to dust, moisture, and water ingress |
🔩 Shackle Details
| Parameter |
Detail |
| Shackle Material |
Heavy-coated Carbide Steel (hardened steel with protective coating) |
| Coating Type |
Anti-corrosion heavy coating (protects against rust, chemicals, and industrial fluids) |
| Shackle Type |
Standard short shackle (suitable for most LOTO hasps and lockout devices) |
| Shackle Diameter |
~6 mm (standard) |
| Shackle Clearance Height |
~25–38 mm (varies by variant) |
| Shackle Width |
~20–25 mm |
| Cut Resistance |
High — carbide steel resists cutting and sawing attempts |
🔑 Key & Lock Mechanism
| Parameter |
Detail |
| Key System |
Differ Key (Keyed Differently) — each padlock in a set has its own unique key; no two locks share a key |
| Key Management Level |
6-Level Management Key System — hierarchical authorization from worker-level up to master/administrator level |
| Master Key Function |
Higher-level management keys can override lower-level locks in emergency or administrative scenarios |
| Key Retaining Feature |
Yes — the key cannot be removed from the lock unless the padlock is in a fully locked (closed) position, preventing the padlock from being left accidentally in an unlocked state |
| Key Card / ID Configuration |
Supplied with a configuration key card that records each user's personal ID and their corresponding padlock number, enabling easy identification and tracking |
| Number of Keys Supplied |
Typically 1–2 keys per padlock (depends on variant/purchase configuration) |
| Key Identification |
Keys and lock body are numerically or alphanumerically marked for one-to-one correspondence |
🌡️ Environmental & Performance Parameters
| Parameter |
Detail |
| Operating Temperature Range |
0°F to 250°F / -20°C to 120°C |
| Waterproof |
Yes — sealed body prevents moisture and water ingress |
| Anti-Corrosion |
Yes — both body (nylon composite) and shackle (coated carbide steel) are corrosion-resistant |
| Chemical Resistance |
Resistant to oils, greases, mild acids, and common industrial chemicals |
| UV Resistance |
Yes — nylon composite body is UV-stable for outdoor applications |
| Electrical Conductivity |
Non-conductive body — safe for electrical isolation (LOTO on electrical panels, switchgear) |
| Impact Resistance |
High — glass fiber reinforcement adds structural rigidity |
⚖️ Physical Dimensions & Weight
| Parameter |
Detail |
| Total Weight |
100 grams |
| Body Width |
~38 mm |
| Overall Compact Form |
Designed to fit standard LOTO hasps, valve lockouts, cable lockouts, and group lockout boxes |
🏭 Application & Compliance
| Parameter |
Detail |
| Primary Application |
Lockout-Tagout (LOTO) — isolation of electrical, pneumatic, hydraulic, thermal, and mechanical energy sources |
| Industry Use |
Manufacturing, Power Plants, Oil & Gas, Chemical Plants, Pharmaceuticals, Automotive, Construction, Utilities |
| Compliance Standard |
Designed to meet OSHA 29 CFR 1910.147 (Control of Hazardous Energy) requirements |
| OSHA Requirements Met |
Singularly identified ✅ |
| Used With |
LOTO Hasps, Cable Lockouts, Valve Lockouts, Circuit Breaker Lockouts, Group Lockout Boxes |
