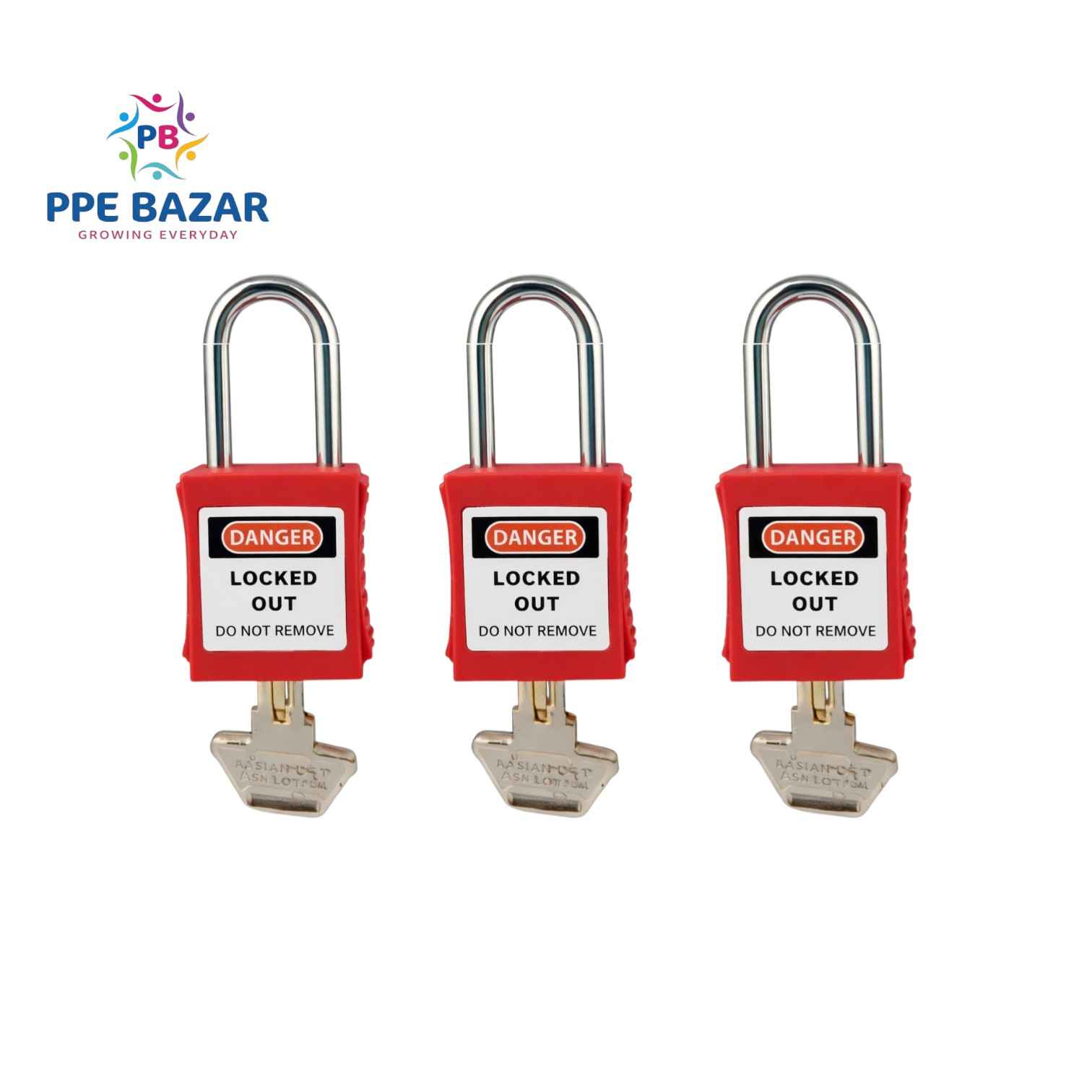

This OSHA Safety Lockout/Tagout (LOTO) Padlock is a detachable lock featuring a U-shaped metallic shackle, designed to protect against unauthorized access or tampering during hazardous energy control procedures. It is built to meet OSHA standards for the Control of Hazardous Energy (Lockout/Tagout) as per Title 29, Code of Federal Regulations (CFR) Part 1910.147.
The lock features a "seamless" body structure for enhanced durability and is equipped with an Alike Key (AK) system, meaning multiple padlocks can be opened with the same key — ideal for group lockout procedures or simplified key management.
🔧 TECHNICAL SPECIFICATIONS
| Parameter |
Details |
| Body Material |
Glass Fiber Reinforced Nylon (ABS + Nylon composite) |
| Shackle Material |
Zinc-plated / Heavy Coated Carbide Steel |
| Shackle Height |
38 mm |
| Body Width |
40 mm |
| Body Size |
Approx. 45mm (H) × 40mm (W) × 20mm (D) |
| Shackle Diameter |
6 mm – 6.3 mm |
| Key System |
Alike Key (AK) – All locks in the set open with the same key |
| Key Retaining |
Yes – Key can only be removed when padlock is in locked position |
| Lock Cylinder |
Copper alloy – eliminates metal friction spark |
| No. of Keys Included |
2 keys per lock |
| Operating Temperature |
0°F to 250°F / -20°C to 120°C |
| Resistance |
Waterproof, Corrosion Resistant, UV Resistant, Non-Silicon |
| Color Options |
Red, Blue, Yellow, Green, Orange, White, Purple, Black |
| Compliance Standard |
OSHA CFR 29 Part 1910.147 (Lockout/Tagout) |
| Management Levels |
Up to 6–10 levels (KD / KA / MK system) |
✅ KEY FEATURES
- Complies with OSHA LOTO standard (CFR 1910.147)
- Alike Key system — multiple locks opened by one key
- Key retaining feature — padlock cannot be left unlocked accidentally
- Lightweight, non-conductive, and easy to carry
- Anti-skid design on lock body
- Configuration key card included for personnel ID management
- Durable metallic shackle with excellent anti-rust properties
- Double-slot key design for multi-level management
