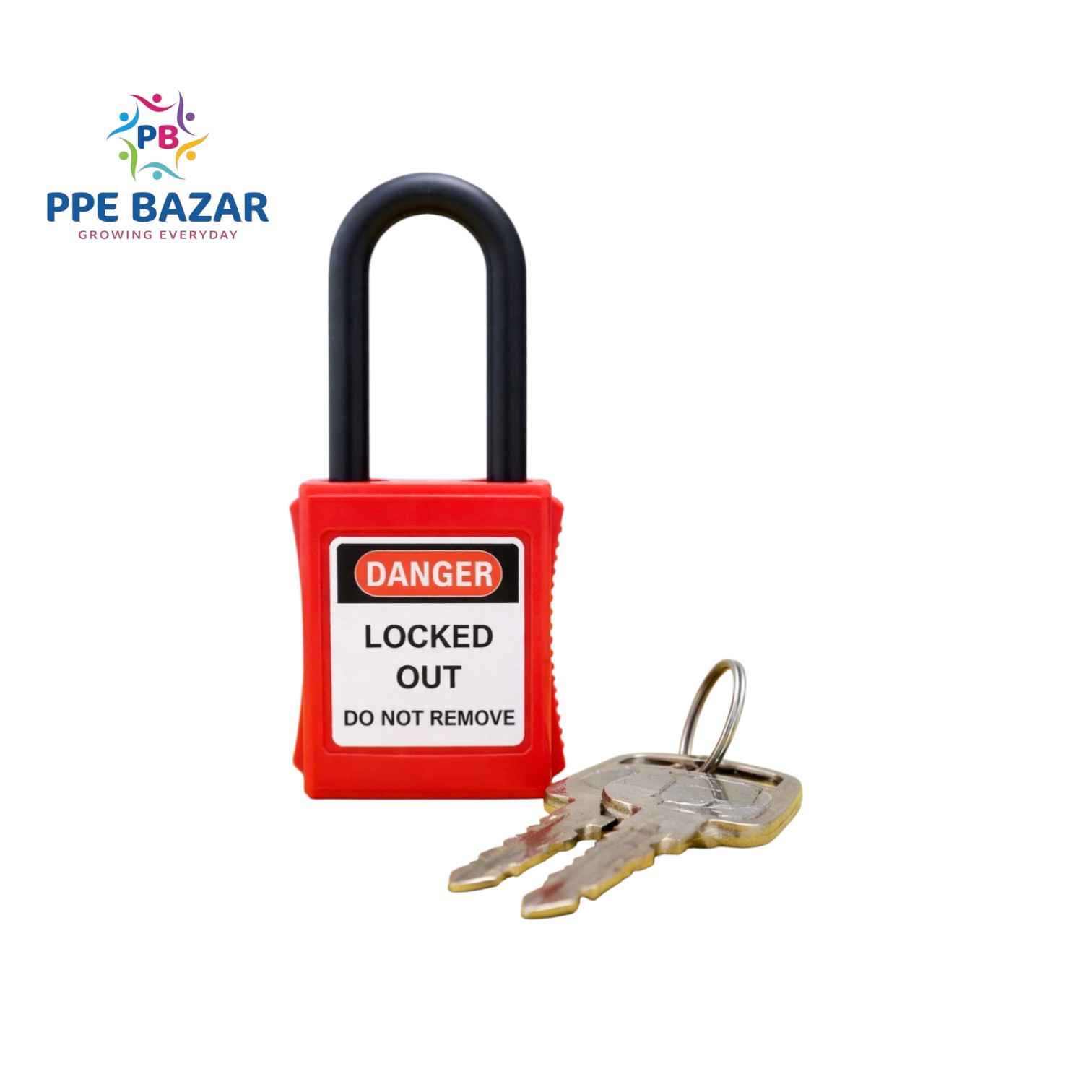

This OSHA Safety Lockout/Tagout (LOTO) Padlock features a Di-Electric (Non-Conductive) Shackle — making it specifically engineered for use in electrical hazard environments. Unlike standard metallic shackle padlocks, the di-electric shackle is made from non-conductive nylon/polymer material, providing full electrical insulation and eliminating the risk of accidental conductivity or arc flash.
It operates on a Different Key (DK) System, meaning every padlock has its own unique key and no two locks in the set can be opened by the same key. This ensures strict individual lock ownership — a critical requirement under OSHA LOTO regulations for multi-employee energy isolation programs.
Fully compliant with OSHA CFR 29 Part 1910.147 for the Control of Hazardous Energy.
🔧 TECHNICAL SPECIFICATIONS
| Parameter |
Details |
| Body Material |
Glass Fiber Reinforced Nylon / High-Impact ABS Composite |
| Shackle Material |
Di-Electric Nylon / Non-Conductive Polymer |
| Shackle Height |
38 mm |
| Body Width |
40 mm |
| Body Size |
Approx. 45mm (H) × 40mm (W) × 20mm (D) |
| Shackle Diameter |
6 mm – 6.5 mm |
| Electrical Insulation |
Non-conductive shackle — safe for live electrical environments |
| Voltage Rating |
Up to 230V / 440V AC (typical di-electric rating) |
| Key System |
Different Key (DK) – Every lock has a unique key; no two alike |
| Key Retaining |
Yes – Key removable only when padlock is in locked position |
| Lock Cylinder |
Copper alloy – spark-free, anti-friction design |
| No. of Keys Included |
2 unique keys per lock |
| Operating Temperature |
0°F to 250°F / -20°C to 120°C |
| Resistance |
Waterproof, Corrosion Resistant, UV Resistant, Non-Silicon |
| Color Options |
Red, Blue, Yellow, Green, Orange, White, Purple, Black |
| Compliance Standard |
OSHA CFR 29 Part 1910.147 (LOTO) |
✅ KEY FEATURES
- ✔ Complies with OSHA LOTO Standard (CFR 1910.147)
- ✔ Di-Electric (Non-Conductive) Shackle — eliminates shock/arc flash risk
- ✔ Different Key system — maximum individual security, no shared keys
- ✔ Fully non-metallic shackle — ideal for electrical panel, switchgear & HV lockouts
- ✔ Key retaining feature — prevents accidental unlocked state
- ✔ Lightweight yet high-strength non-conductive body
- ✔ Anti-spark, anti-corrosion design throughout
- ✔ Laser-engraved serial/ID numbers available for personnel tracking
- ✔ Suitable for wet, chemical, and high-voltage environments
🔑 KEY SYSTEM COMPARISON CHART
| Feature |
Alike Key (AK) |
Master Key (MK) |
Different Key (DK) |
| Individual Lock Key |
Same for all |
Unique per lock |
Unique per lock |
| Master Override |
❌ |
✅ |
❌ |
| Key Sharing Possible |
✅ |
Supervisor only |
Never |
| Security Level |
Moderate |
High |
Maximum |
| Best For |
Simple group LOTO |
Supervisor control |
Strict individual LOTO |
⚡ DI-ELECTRIC SHACKLE vs METALLIC SHACKLE
| Feature |
Metallic Shackle |
Di-Electric Shackle |
| Material |
Hardened Steel |
Non-Conductive Nylon/Polymer |
| Electrical Conductivity |
✅ Conductive |
❌ Non-Conductive |
| Safe for Electrical LOTO |
⚠️ Risk of conductivity |
✅ Fully Safe |
| Corrosion Resistance |
Moderate |
Excellent |
| Weight |
Heavier |
Lighter |
| Ideal For |
Mechanical/valve lockout |
Electrical panel/HV lockout |
📦 APPLICATIONS
- High-voltage electrical panel lockout
- Switchgear and circuit breaker isolation
- Transformer & substation maintenance
- MCC (Motor Control Centre) lockout
- Live wire/cable isolation procedures
- Chemical plant & refinery LOTO programs
- Any environment where electrical conductivity is a hazard
