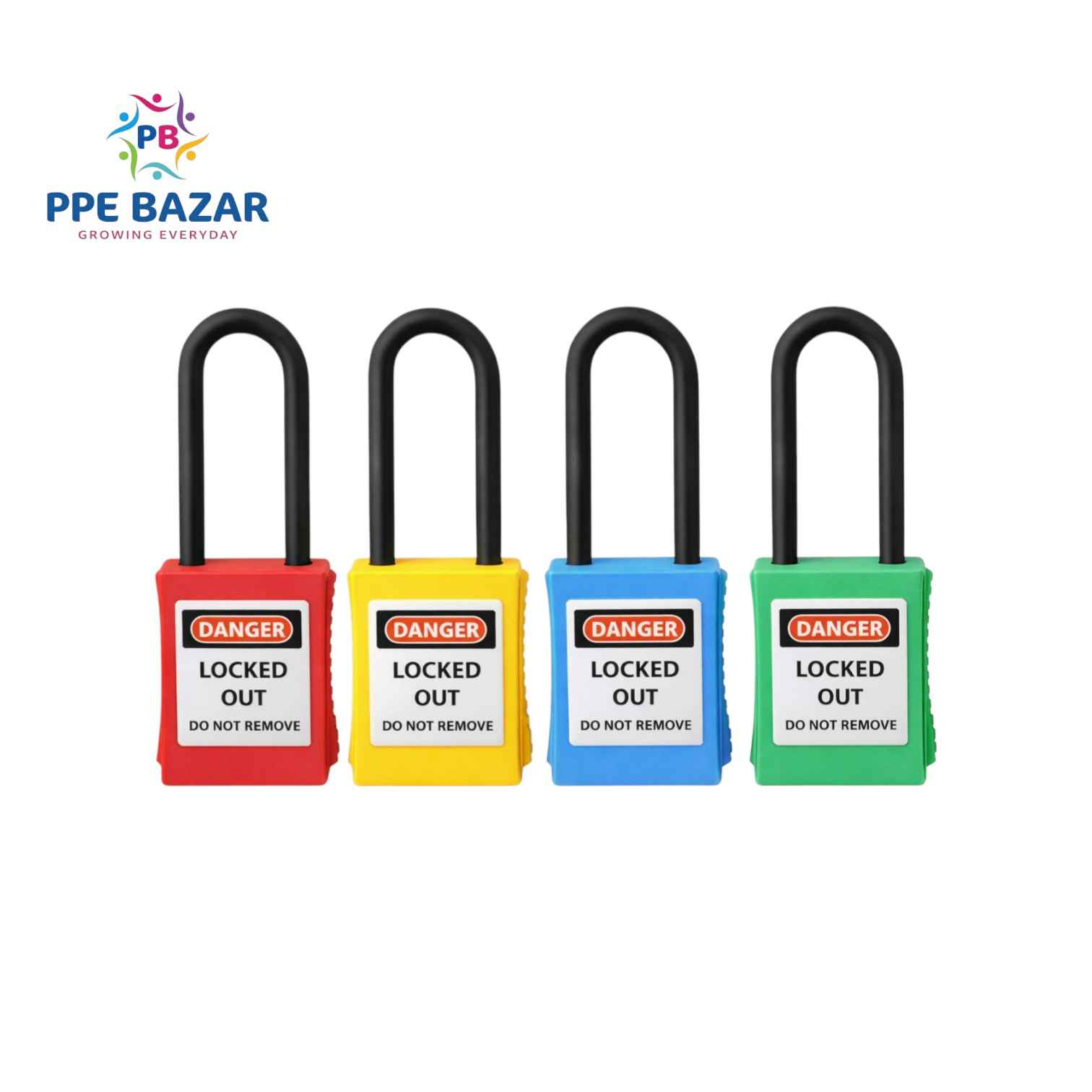

The ALC-OLPNS OSHA Safety Padlock with Dielectric Shackle (80mm) is a high-security, non-conductive lockout padlock designed specifically for electrical lockout/tagout (LOTO) applications.

This padlock is manufactured in compliance with OSHA Lockout/Tagout requirements and is intended to provide maximum worker safety during maintenance and servicing of electrical equipment.

The dielectric (non-conductive) shackle ensures complete electrical insulation, reducing the risk of electrical shock hazards. The lock body is constructed from high-strength, impact-resistant thermoplastic material, making it ideal for harsh industrial environments.

The padlock is supplied in a Master Keyed (MK76) system, allowing authorized supervisory personnel to access multiple locks with a designated master key while maintaining individual key control for operators.

This model features an 80mm lock body height, offering better grip and visibility during lockout procedures.

TECHNICAL SPECIFICATION

1. General Details

• Model No.: ALC-OLPNS

• Product Type: OSHA Safety Lockout Padlock

• Keying System: Master Keyed (MK76)

• Body Height: 80 mm

• Application: Electrical Lockout/Tagout (LOTO)

2. Lock Body

• Material: Non-conductive reinforced thermoplastic (Nylon/ABS)

• Body Width: Approx. 38–45 mm

• Body Height: 80 mm

• Body Thickness: Approx. 20 mm

• Color Options: Red (standard OSHA), other colors available on request

• Weather Resistance: UV-resistant and corrosion-proof

3. Shackle

• Type: Dielectric / Non-conductive Shackle

• Material: Nylon (fully insulated)

• Shackle Diameter: 6 mm (approx.)

• Vertical Clearance: Approx. 38 mm

• Electrical Insulation: 100% Non-conductive

• Corrosion Resistance: Yes

4. Locking Mechanism

• Locking Type: Pin tumbler mechanism

• Key Retaining Feature: Yes (Key cannot be removed unless locked)

• Number of Keys Supplied: 2 keys per lock (standard)

• Master Key Access: Yes (MK76 system)

5. Compliance & Standards

• Designed as per OSHA 29 CFR 1910.147 Lockout/Tagout Standard

• Suitable for industrial electrical safety applications

• Non-sparking and chemical resistant

6. Application Areas

• Electrical panels

• Circuit breakers

• MCC panels

• Industrial machines

• Switchgear systems

• Maintenance lockout procedures

KEY FEATURES

• Fully non-conductive dielectric shackle

• Impact-resistant body

• Master key controlled access

• Key-retaining safety feature

• Chemical and corrosion resistant

• Ideal for hazardous electrical environments
